The classes of
the CRM are comprehensively declared in this section using the following
format:
·
Class names are presented as headings in bold
face, preceded by the class’ unique identifier;
·
The line “Subclass of:” declares the superclass
of the class from which it inherits properties;
·
The line “Superclass of:” is a cross-reference to
the subclasses of this class;
·
The line “Scope note:” contains the textual
definition of the concept the class represents;
·
The line “Examples:” contains a bulleted list of
examples of instances of this class. If the example is also instance of a
subclass of this class, the unique identifier of the subclass is added in
parenthesis. If the example instantiates two classes, the unique identifiers of
both classes is added in parenthesis. Non-fictitious examples may be followed by
an explanation in brackets.
·
The line “Properties:” declares the list of the
class’ properties;
·
Each property is represented by its unique
identifier, its forward and reverse names, and the range class that it links to,
separated by colons;
·
Inherited properties are not
represented;
·
Properties of properties are provided indented
and in parentheses beneath their respective domain property.

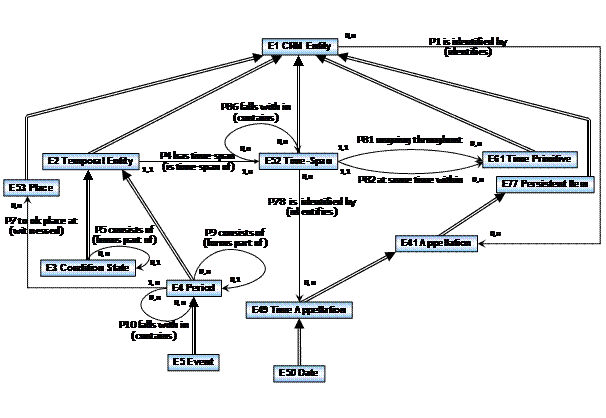

E1 CRM Entity
Superclass
of: E2 Temporal Entity
E52 Time-Span
E53 Place
E54 Dimension
E77 Persistent Item
Scope
note: This class
comprises all things in the universe of discourse of the CIDOC Conceptual
Reference Model.
It is an abstract concept providing for three general
properties:
1.
Identification by name or appellation, and in
particular by a preferred identifier
2.
Classification by type, allowing further
refinement of the specific subclass an instance belongs to
3.
Attachment of free text for the expression of
anything not captured by formal properties
With the exception of E59
Primitive Value, all other classes within the CRM are directly or indirectly
specialisations of E1 CRM Entity.
Examples:
§
the earthquake in Lisbon 1755 (E5)
Properties:
P1 is identified by (identifies):
E41 Appellation
P2 has type (is type of): E55 Type
P3 has note: E62 String
P48 has preferred identifier (is
preferred identifier of): E42 Identifier
P137 exemplifies (is exemplified by):
E55 Type
E2 Temporal
Entity
Subclass of:
Å1 CRM Entity
Superclass of:
Å3 Condition State
E4 Period
Scope
note: This class
comprises all phenomena, such as the instances of E4 Periods, E5 Events and
states, which happen over a limited extent in time.
In some contexts, these are also called perdurants. This class is disjoint from
E77 Persistent Item. This is an abstract class and has no direct instances. E2
Temporal Entity is specialized into E4 Period, which applies to a particular
geographic area (defined with a greater or lesser degree of precision), and E3
Condition State, which applies to instances of E18 Physical Thing.
Examples:
§
Bronze Age (E4)
§
the earthquake in Lisbon 1755 (E5)
§
the Peterhof Palace near Saint Petersburg being
in ruins from 1944 – 1946 (E3)
Properties:
P4 has time-span (is time-span of):
E52 Time-Span
P114 is equal in time to: E2 Temporal Entity
P115 finishes (is finished by): E2 Temporal Entity
P116 starts (is started by): E2 Temporal Entity
P117 occurs during (includes): E2 Temporal Entity
P118 overlaps in time with (is overlapped
in time by): E2 Temporal Entity
P119 meets in time with (is met in time
by): E2 Temporal Entity
P120 occurs before (occurs after):
E2 Temporal Entity
E3 Condition
State
Scope
note: This class
comprises the states of objects characterised by a certain condition over a
time-span.
An
instance of this class describes the prevailing physical condition of any
material object or feature during a specific E52 Time Span. In general, the
time-span for which a certain condition can be asserted may be shorter than the
real time-span, for which this condition held.
The
nature of that condition can be described using P2 has type. For example,
the E3 Condition State “condition of the SS Great Britain between 22 September
1846 and 27 August 1847” can be characterized as E55 Type “wrecked”.
Examples:
§
the “Amber Room” in Tsarskoje Selo being
completely reconstructed from summer 2003 until now
§
the Peterhof Palace near Saint Petersburg being
in ruins from 1944 – 1946
§
the state of my turkey in the oven at 14:30 on 25
December, 2002 (P2 has type: E55 Type “still not
cooked”)
Properties:
P5 consists of (forms part of): E3 Condition State
E4
Period
Scope
note:
This class comprises sets of coherent phenomena or cultural manifestations
bounded in time and space.
It is the social or physical
coherence of these phenomena that identify an E4 Period and not the associated
spatio-temporal bounds. These bounds are a mere approximation of the actual
process of growth, spread and retreat. Consequently, different periods can
overlap and coexist in time and space, such as when a nomadic culture exists in
the same area as a sedentary culture.
Typically this class is used
to describe prehistoric or historic periods such as the “Neolithic Period”, the
“Ming Dynasty” or the “McCarthy Era”. There are however no assumptions about the
scale of the associated phenomena. In particular all events are seen as
synthetic processes consisting of coherent phenomena. Therefore E4 Period is a
superclass of E5 Event. For example, a modern clinical E67 Birth can be seen as
both an atomic E5 Event and as an E4 Period that consists of multiple activities
performed by multiple instances of E39 Actor.
There are two different
conceptualisations of ‘artistic style’, defined either by physical features or
by historical context. For example, “Impressionism” can be viewed as a period
lasting from approximately 1870 to 1905 during which paintings with particular
characteristics were produced by a group of artists that included (among others)
Monet, Renoir, Pissarro, Sisley and Degas. Alternatively, it can be regarded as
a style applicable to all paintings sharing the characteristics of the works
produced by the Impressionist painters, regardless of historical context. The
first interpretation is an E4 Period, and the second defines morphological
object types that fall under E55 Type.
Another specific case of an E4
Period is the set of activities and phenomena associated with a settlement, such
as the populated period of Nineveh.
Examples:
§
Jurassic
§
European Bronze Age
§
Italian Renaissance
§
Thirty Years War
§
Sturm und Drang
§
Cubism
Properties:
P7 took place at (witnessed): E53 Place
P8 took place on or within (witnessed):
E19 Physical Object
P9 consists of (forms part of): E4 Period
P10 falls within (contains): E4 Period
P132 overlaps with: E4 Period
P133 is separated from: E4 Period
E5
Event
Subclass of:
E4 Period
E63 Beginning of Existence
E64 End of Existence
Scope
note: This class
comprises changes of states in cultural, social or physical systems, regardless
of scale, brought about by a series or group of coherent physical, cultural,
technological or legal phenomena. Such changes of state will affect instances of
E77 Persistent Item or its subclasses.
The distinction between an E5 Event and an E4 Period is partly a
question of the scale of observation. Viewed at a coarse level of detail, an E5
Event is an ‘instantaneous’ change of state. At a fine level, the E5 Event can
be analysed into its component phenomena within a space and time frame, and as
such can be seen as an E4 Period. The reverse is not necessarily the case: not
all instances of E4 Period give rise to a noteworthy change of state.
Examples:
§
the birth of Cleopatra (E67)
§
the destruction of Lisbon by earthquake in 1755
(E6)
§
World War II (E7)
§
the Battle of Stalingrad (E7)
§
the Yalta Conference (E7)
§
my birthday celebration 28-6-1995 (E7)
§
the falling of a tile from my roof last Sunday
§
the CIDOC Conference 2003 (E7)
Properties:
P11 had
participant (participated in): E39
Actor
P12 occurred in the presence of (was present
at): E77
Persistent Item
E6
Destruction
Subclass of:
E64 End of Existence
Scope
note: This class
comprises events that destroy one or more instances of E18 Physical Thing such
that they lose their identity as the subjects of documentation.
Some
destruction events are intentional, while others are independent of human
activity. Intentional destruction may be documented by classifying the event as
both an E6 Destruction and E7 Activity.
The
decision to document an object as destroyed, transformed or modified is context
sensitive:
1. If the matter remaining from the destruction is not
documented, the event is modelled solely as E6 Destruction.
2. An event should also be documented using E81 Transformation if it
results in the destruction of one or more objects and the simultaneous
production of others using parts or material from the original. In this case,
the new items have separate identities. Matter is preserved, but identity is
not.
3. When the initial identity of the changed instance of E18 Physical
Thing is preserved, the event should be documented as E11 Modification.
Examples:
§
the destruction of Lisbon by earthquake in
1755
§
the destruction of Nineveh (E6, E7)
§
the breaking of a champagne glass yesterday by my
dog
§
the shooting of the last
wolf (‘Canis lupus Linne, 1758’) of the Rhineland/Germany, in
Birreskopf/Eifel 1860 (now Museum Alexander Koenig inventory no.: ZFMK 86.385)
(E6, E7)
Properties:
P13 destroyed (was destroyed by):
E18 Physical Thing
E7
Activity
Subclass of:
E5 Event
Superclass of:
E8 Acquisition
E9 Move
E10 Transfer of Custody
E11 Modification
E13 Attribute Assignment
E65 Creation
E66 Formation
E85 Joining
E86 Leaving
E87 Curation Activity
Scope
note: This class
comprises actions intentionally carried out by instances of E39 Actor that
result in changes of state in the cultural, social, or physical systems
documented.
This
notion includes complex, composite and long-lasting actions such as the building
of a settlement or a war, as well as simple, short-lived actions such as the
opening of a door.
Examples:
§
the Battle of Stalingrad
§
the Yalta Conference
§
my birthday celebration 28-6-1995
§
the writing of “Faust” by Goethe (E65)
§
the formation of the Bauhaus 1919
(E66)
§
calling the place identified by TGN ‘7017998’
‘Quyunjig’ by the people of Iraq
Properties:
P14 carried out by (performed): E39 Actor
(P14.1 in the role of: E55 Type)
P15 was influenced by (influenced):
E1 CRM Entity
P16 used specific object (was used for):
E70 Thing
(P16.1 mode of use: E55 Type)
P17 was motivated by (motivated):
E1 CRM Entity
P19 was intended use of (was made for):
E71 Man-Made Thing
(P19.1 mode of use: E55 Type)
P20 had specific purpose (was purpose
of): E5 Event
P21 had general purpose (was purpose of):
E55 Type
P32 used general technique (was technique
of): E55 Type
P33 used specific technique (was used
by): E29 Design or Procedure
P125 used object of type (was type of
object used in): E55 Type
P134 continued (was continued by):
E7 Activity
E8
Acquisition
Subclass of:
E7 Activity
Scope
note: This class
comprises transfers of legal ownership from one or more instances of E39 Actor
to one or more other instances of E39 Actor.
The class also applies to the establishment or loss of ownership of
instances of E18 Physical Thing. It does not, however, imply changes of any
other kinds of right. The recording of the donor and/or recipient is optional.
It is possible that in an instance of E8 Acquisition there is either no donor or
no recipient. Depending on the circumstances, it may describe:
1.
the beginning of ownership
2.
the end of ownership
3.
the transfer of ownership
4.
the acquisition from an unknown source
5.
the loss of title due to destruction of the
item
It may also describe events where a collector appropriates legal
title, for example by annexation or field collection. The interpretation of the
museum notion of "accession" differs between institutions. The CRM therefore
models legal ownership (E8 Acquisition) and physical custody (E10 Transfer of
Custody) separately. Institutions will then model their specific notions of
accession and deaccession as combinations of these.
Examples
§
the collection of a hammer-head shark
of the genus Sphyrna (Carchariniformes)
XXXtbc by John Steinbeck and Edward Ricketts at Puerto
Escondido in the Gulf of Mexico on March 25th, 1940
§
the acquisition of El Greco’s painting entitled
‘The Apostles Peter and Paul’ by the State Hermitage in Saint
Petersburg
§
the loss of my stuffed chaffinch ‘Fringilla
coelebs Linnaeus, 1758’ due
to insect damage last year
Properties:
P22 transferred title to (acquired title
through): E39 Actor
P23 transferred title from (surrendered
title through): E39 Actor
P24 transferred
title of (changed ownership through): E18 Physical Thing
E9
Move
Subclass of:
E7 Activity
Scope
note: This class comprises
changes of the physical location of the instances of E19 Physical Object.
Examples
§
the relocation of London Bridge from the UK to
the USA
§
the movement of the exhibition “Treasures of
Tutankhamun” 1976-1979
Properties:
P25 moved (moved by): E19 Physical Object
P26 moved to (was destination of):
E53 Place
P27 moved from (was origin of): E53 Place
E10 Transfer of
Custody
Subclass of:
E7 Activity
Scope
note: This class
comprises transfers of physical custody of objects between instances of E39
Actor.
The
recording of the donor and/or recipient is optional. It is possible that in an
instance of E10 Transfer of Custody there is either no donor or no recipient.
Depending on the circumstances it may describe:
1.
the beginning of custody
2.
the end of custody
3.
the transfer of custody
4.
the receipt of custody from an unknown
source
5.
the declared loss of an object
The
distinction between the legal responsibility for custody and the actual physical
possession of the object should be expressed using the property P2 has type
(is type of). A specific case of transfer of custody is theft.
The
interpretation of the museum notion of "accession" differs between institutions.
The CRM therefore models legal ownership and physical custody separately.
Institutions will then model their specific notions of accession and deaccession
as combinations of these.
Examples:
§
the delivery of the paintings by Secure
Deliveries Inc. to the National Gallery
§
the return of Picasso’s “Guernica” to Madrid’s
Prado in 1981
Properties:
P28 custody surrendered by (surrendered
custody through): E39 Actor
P29 custody received by (received custody
through): E39 Actor
P30 transferred
custody of (custody transferred through): E18 Physical Thing
E11
Modification
Subclass of:
E7 Activity
Superclass of:
E12 Production
E79 Part Addition
E80 Part Removal
Scope
note: This class
comprises all instances of E7 Activity that create, alter or change E24 Physical
Man-Made Thing.
This class includes the production of an item from raw materials, and
other so far undocumented objects, and the preventive treatment or restoration
of an object for conservation.
Since the distinction between modification and production is not
always clear, modification is regarded as the more generally applicable concept.
This implies that some items may be consumed or destroyed in a Modification, and
that others may be produced as a result of it. An event should also be
documented using E81 Transformation if it results in the destruction of one or
more objects and the simultaneous production of others using parts or material
from the originals. In this case, the new items have separate identities.
If the instance of the E29 Design or Procedure utilised for the
modification prescribes the use of specific materials, they should be documented
using properties of the design or procedure, rather than via P126 employed
(was employed in): E57 Material.
Examples:
§
the
construction of the SS Great Britain (E12)
§
the
impregnation of the Vasa warship in Stockholm for preservation after
1956
§
the
transformation of the Enola Gay into a museum exhibit by the National Air and Space
Museum in
Washington DC between 1993 and 1995 (E12, E81)
§
the last
renewal of the gold coating of the Toshogu shrine in Nikko, Japan
Properties:
P31 has modified (was modified by):
E24 Physical Man-Made Thing
P126 employed (was employed in):
E57 Material
E12
Production
Subclass of:
E11 Modification
Scope
note: This class
comprises activities that are designed to, and succeed in, creating one or more
new items.
It
specializes the notion of modification into production. The decision as to
whether or not an object is regarded as new is context sensitive. Normally,
items are considered “new” if there is no obvious overall similarity between
them and the consumed items and material used in their production. In other
cases, an item is considered “new” because it becomes relevant to documentation
by a modification. For example, the scribbling of a name on a potsherd may make
it a voting token. The original potsherd may not be worth documenting, in
contrast to the inscribed one.
This entity can be collective: the printing of a thousand books, for
example, would normally be considered a single event.
An event should also be documented using E81 Transformation if it
results in the destruction of one or more objects and the simultaneous
production of others using parts or material from the originals. In this case,
the new items have separate identities and matter is preserved, but identity is
not.
Examples:
§
the
construction of the SS Great Britain
§
the
recasting of the Little Mermaid at the harbour of Copenhagen
§
the
seventh edition of Rembrandt’s etching “Woman sitting half dressed beside a
stove”, 1658, Bartsch Number 197
Properties:
P108 has produced (was produced by):
E24 Physical Man-Made Thing
E13 Attribute
Assignment
Subclass of:
E7 Activity
Superclass of:
E14 Condition Assessment
E15 Identifier Assignment
E16 Measurement
E17 Type Assignment
Scope
note: This class
comprises the actions of making assertions about properties of an object or any
relation between two items or concepts.
This class
allows the documentation of how the respective assignment came about, and whose
opinion it was. All the attributes or properties assigned in such an action can
also be seen as directly attached to the respective item or concept, possibly as
a collection of contradictory values. All cases of properties in this model that
are also described indirectly through an action are characterised as "short
cuts" of this action. This redundant modelling of two alternative views is
preferred because many implementations may have good reasons to model either the
action or the short cut, and the relation between both alternatives can be
captured by simple rules.
In
particular, the class describes the actions of people making propositions and
statements during certain museum procedures, e.g. the person and date when a
condition statement was made, an identifier was assigned, the museum object was
measured, etc. Which kinds of such assignments and statements need to be
documented explicitly in structures of a schema rather than free text, depends
on if this information should be accessible by structured queries.
Examples:
§
the
assessment of the current ownership of Martin Doerr’s silver cup in February
1997
Properties:
P140 assigned attribute to (was
attributed by): E1 CRM Entity
P141 assigned (was assigned by):
E1 CRM Entity
E14 Condition
Assessment
Subclass of:
E13 Attribute Assignment
Scope
note: This class
describes the act of assessing the state of preservation of an object during a
particular period.
The condition assessment may
be carried out by inspection, measurement or through historical research. This
class is used to document circumstances of the respective assessment that may be
relevant to interpret its quality at a later stage, or to continue research on
related documents.
Examples:
·
last year’s inspection of humidity damage to the
frescos in the St. George chapel in our village
Properties:
P34 concerned (was assessed by):
E18 Physical Thing
P35 has identified (identified by):
E3 Condition State
E15 Identifier
Assignment
Subclass of:
E13 Attribute Assignment
Scope
note: This class
comprises activities that result in the allocation of an identifier to an
instance of E1 CRM Entity. An E15 Identifier Assignment may include the creation
of the identifier from multiple constituents, which themselves may be instances
of E41 Appellation. The syntax and kinds of constituents to be used may be
declared in a rule constituting an instance of E29 Design or
Procedure.
Examples of such identifiers
include Find Numbers, Inventory Numbers, uniform titles in the sense of
librarianship and Digital Object Identifiers (DOI). Documenting the act of
identifier assignment and deassignment is especially useful when objects change
custody or the identification system of an organization is changed. In order to
keep track of the identity of things in such cases, it is important to document
by whom, when and for what purpose an identifier is assigned to an
item.
The fact that an identifier is a preferred one
for an organisation can be expressed by using the property E1 CRM Entity. P48
has preferred identifier (is preferred identifier of): E42 Identifier. It
can better be expressed in a context independent form by assigning a suitable
E55 Type, such as “preferred identifier assignment”, to the respective instance
of E15 Identifier Assignment via the P2 has type property.
Examples:
§
Replacement of the inventory number TA959a by GE34604 for a
17th century lament cloth at the Museum Benaki, Athens
§
Assigning the author-uniform title heading
“Goethe, Johann Wolfgang von, 1749-1832. Faust. 1. Theil.” for a work
(E28)
§
On June 1, 2001 assigning
the personal name heading “Guillaume, de Machaut, ca. 1300-1377” (E42,E82) to
Guillaume de Machaut (E21)
Properties:
P37 assigned (was assigned by): E42 Identifier
P38 deassigned (was deassigned by):
E42 Identifier
P142 used constituent (was used in):
E41 Appellation
E16
Measurement
Subclass of:
E13 Attribute Assignment
Scope note:
This class comprises actions measuring physical properties and other values that
can be determined by a systematic procedure.
Examples
include measuring the monetary value of a collection of coins or the running
time of a specific video cassette.
The E16
Measurement may use simple counting or tools, such as yardsticks or radiation
detection devices. The interest is in the method and care applied, so that the
reliability of the result may be judged at a later stage, or research continued
on the associated documents. The date of the event is important for dimensions,
which may change value over time, such as the length of an object subject to
shrinkage. Details of methods and devices are best handled as free text, whereas
basic techniques such as "carbon 14 dating" should be encoded using P2 has
type (is type of:) E55 Type.
Examples:
§
measurement of height of silver cup 232 on the
31 st August 1997
§
the carbon 14 dating of the “Schoeninger Speer
II” in 1996 [an about 400.000 years old Palaeolithic complete wooden spear found
in Schoeningen, Niedersachsen, Germany in 1995]
Properties:
P39 measured (was measured by): E70 Thing
P40 observed dimension (was observed in):
E54 Dimension
E17 Type
Assignment
Subclass of:
E13 Attribute Assignment
Scope
note: This class
comprises the actions of classifying items of whatever kind. Such items include
objects, specimens, people, actions and concepts.
This class allows for the documentation of the context of
classification acts in cases where the value of the classification depends on
the personal opinion of the classifier, and the date that the classification was
made. This class also encompasses the notion of "determination," i.e. the
systematic and molecular identification of a specimen in biology.
Examples:
§
the first classification of object GE34604 as
Lament Cloth, October 2nd
§
the determination of a cactus in Martin Doerr’s
garden as ‘Cereus hildmannianus K.Schumann’, July 2003
Properties:
P41 classified (was classified by):
E1 CRM Entity
P42 assigned (was assigned by): E55 Type
E18 Physical
Thing
Subclass of:
E72 Legal Object
Superclass of:
E19 Physical Object
E24 Physical Man-Made Thing
E26 Physical Feature
Scope
Note: This class comprises
all persistent physical items with a relatively stable form, man-made or
natural.
Depending on the existence of
natural boundaries of such things, the CRM distinguishes the instances of E19
Physical Object from instances of E26 Physical Feature, such as holes, rivers,
pieces of land etc. Most instances of E19 Physical Object can be moved (if not
too heavy), whereas features are integral to the surrounding matter.
The CRM is generally not
concerned with amounts of matter in fluid or gaseous states.
Examples:
§
the Cullinan Diamond (E19)
§
the cave “Ideon Andron” in Crete (E26)
§
the Mona Lisa (E22)
Properties:
P44 has condition (condition of):
E3 Condition State
P45 consists of (is incorporated in):
E57 Material
P46 is composed of (forms part of):
E18 Physical Thing
P49 has former or current keeper (is
former or current keeper of): E39 Actor
P50 has current keeper (is current keeper
of): E39 Actor
P51 has former or current owner (is
former or current owner of): E39 Actor
P52 has current owner (is current owner
of): E39 Actor
P53 has former or current location (is
former or current location of): E53 Place
P58 has section definition (defines
section): E46 Section Definition
P59 has section (is located on or
within): E53 Place
E19 Physical
Object
Subclass of: E18 Physical Thing
Superclass of:
E20 Biological Object
E22 Man-Made Object
Scope
note: This class
comprises items of a material nature that are units for documentation and have
physical boundaries that separate them completely in an objective way from other
objects.
The class
also includes all aggregates of objects made for functional purposes of whatever
kind, independent of physical coherence, such as a set of chessmen. Typically,
instances of E19 Physical Object can be moved (if not too heavy).
In some
contexts, such objects, except for aggregates, are also called “bona fide
objects” (Smith & Varzi, 2000, pp.401-420), i.e. naturally defined objects.
The
decision as to what is documented as a complete item, rather than by its parts
or components, may be a purely administrative decision or may be a result of the
order in which the item was acquired.
Examples:
§
John Smith
§
Aphrodite of Milos
§
the Palace of Knossos
§
the Cullinan Diamond
§
Apollo 13 at the time of launch
Properties:
P54 has current permanent location (is
current permanent location of): E53 Place
P55 has current location (currently
holds): E53 Place
P56 bears feature (is found on):
E26 Physical Feature
P57 has number of parts: E60 Number
E20 Biological
Object
Subclass of:
E19 Physical Object
Superclass of:
E21 Person
Scope note:
This class comprises individual items of a material nature, which live, have
lived or are natural products of or from living organisms.
Artificial objects that incorporate biological elements, such as
Victorian butterfly frames, can be documented as both instances of E20
Biological Object and E22 Man-Made Object.
Examples:
§
me
§
Tut-Ankh-AmunP
§
Boukephalas [Horse of Alexander the Great]
§
petrified
dinosaur excrement PA1906-344
E21 Person
Subclass of:
E20 Biological
Object
E39
Actor
Scope
note: This class
comprises real persons who live or are assumed to have lived.
Legendary figures that may have existed, such as Ulysses and King
Arthur, fall into this class if the documentation refers to them as historical
figures. In cases where doubt exists as to whether several persons are in fact
identical, multiple instances can be created and linked to indicate their
relationship. The CRM does not propose a specific form
to support reasoning about possible identity.
Examples:
§
Tut-Ankh-Amun
§
Nelson Mandela
E22 Man-Made
Object
Subclass of:
E19 Physical
Object
Superclass of:
E84 Information
Carrier
Scope
note: This class
comprises physical objects purposely created by human activity.
No
assumptions are made as to the extent of modification required to justify
regarding an object as man-made. For example, an inscribed piece of rock or a
preserved butterfly are both regarded as instances of E22 Man-Made
Object.
Examples:
§
Mallard (the World’s fastest steam
engine)
§
the Portland Vase
§
the Coliseum
E24 Physical Man-Made
Thing
Subclass of:
E18 Physical
Thing
Superclass of:
E22 Man-Made
Object
E25 Man-Made
Feature
E78
Collection
Scope
Note: This class comprises all persistent physical items that are purposely created by human activity.
This class comprises man-made objects, such as a swords, and man-made
features, such as rock art. No assumptions are made as to the extent of
modification required to justify regarding an object as man-made. For example, a
“cup and ring” carving on bedrock is regarded as instance of E24 Physical
Man-Made Thing.
Examples:
§
the Forth Railway Bridge (E22)
§
the Channel Tunnel (E25)
§
the Historical Collection of the Museum Benaki in
Athens (E78)
Properties:
P62 depicts (is
depicted by): E1 CRM
Entity
(P62.1 mode of
depiction: E55
Type)
P65 shows visual
item (is shown by): E36 Visual
Item
P128 carries (is
carried by): E73 Information
Object
E25 Man-Made
Feature
Subclass of:
E24 Physical
Man-Made Thing
E26 Physical
Feature
Scope Note:
This class comprises physical features that are purposely created by human
activity, such as scratches, artificial caves, artificial water channels, etc.
No
assumptions are made as to the extent of modification required to justify
regarding a feature as man-made. For example, rock art or even “cup and ring”
carvings on bedrock a regarded as types of E25 Man-Made Feature.
Examples:
§
the Manchester Ship Canal
§
Michael Jackson’s nose following plastic
surgery
E26 Physical
Feature
Subclass of:
E18 Physical
Thing
Superclass of:
E25 Man-Made
Feature
E27
Site
Scope Note:
This class comprises identifiable features that are physically attached in an
integral way to particular physical objects.
Instances
of E26 Physical Feature share many of the attributes of instances of E19
Physical Object. They may have a one-, two- or three-dimensional geometric
extent, but there are no natural borders that separate them completely in an
objective way from the carrier objects. For example, a doorway is a feature but
the door itself, being attached by hinges, is not.
Instances
of E26 Physical Feature can be features in a narrower sense, such as scratches,
holes, reliefs, surface colours, reflection zones in an opal crystal or a
density change in a piece of wood. In the wider sense, they are portions of
particular objects with partially imaginary borders, such as the core of the
Earth, an area of property on the surface of the Earth, a landscape or the head
of a contiguous marble statue. They can be measured and dated, and it is
sometimes possible to state who or what is or was responsible for them. They
cannot be separated from the carrier object, but a segment of the carrier object
may be identified (or sometimes removed) carrying the complete feature.
This definition coincides with the definition of "fiat objects"
(Smith & Varzi, 2000, pp.401-420), with the exception of aggregates of “bona
fide objects”.
Examples:
§
the temple in Abu Simbel before its removal,
which was carved out of solid rock
§
Albrecht Duerer's signature on his painting of
Charles the Great
§
the damage to the nose of the Great Sphinx in
Giza
§
Michael Jackson’s nose prior to plastic
surgery
E27 Site
Subclass of:
E26 Physical
Feature
Scope Note:
This class comprises pieces of land or sea floor.
In
contrast to the purely geometric notion of E53 Place, this class describes
constellations of matter on the surface of the Earth or other celestial body,
which can be represented by photographs, paintings and maps.
Instances
of E27 Site are composed of relatively immobile material items and features in a
particular configuration at a particular location.
Examples:
§
the Amazon river basin
§
Knossos
§
the Apollo 11 landing site
§
Heathrow
Airport
§
the submerged harbour of the Minoan settlement of
Gournia, Crete
E28 Conceptual
Object
Subclass of:
E71 Man-Made
Thing
Superclass of:
E55
Type
E89 Propositional
Object
E90 Symbolic
Object
Scope
note: This class comprises non-material products of our minds and other
human produced data that
have become objects of a discourse about their identity, circumstances of
creation or historical
implication. The production of such information may have been supported by the
use of
technical devices such as cameras or computers.
Characteristically, instances of this class are created, invented or
thought by someone, and then may be documented or communicated between persons.
Instances of E28 Conceptual Object have the ability to exist on more than one
particular carrier at the same time, such as paper, electronic signals, marks,
audio media, paintings, photos, human memories, etc.
They cannot be destroyed. They exist as long as they can be found on
at least one carrier or in at least one human memory. Their existence ends when
the last carrier and the last memory are lost.
Examples:
§
Beethoven’s “Ode an die Freude” (Ode to Joy),
(E73)
§
the definition of “ontology” in the Oxford
English Dictionary
§
the knowledge about the victory at Marathon
carried by the famous runner
Properties:
E29
Design or Procedure
Subclass of:
E73 Information
Object
Scope
note: This class
comprises documented plans for the execution of actions in order to achieve a
result of a specific quality, form or contents. In particular it comprises plans
for deliberate human activities that may result in the modification or
production of instances of E24 Physical Thing.
Instances
of E29 Design or Procedure can be structured in parts and sequences or depend on
others. This is modelled using P69 is associated with.
Designs or
procedures can be seen as one of the following:
1.
A schema for the activities it
describes
2.
A schema of the products that result from their
application.
3.
An independent intellectual product that may have
never been applied, such as Leonardo da Vinci’s famous plans for flying
machines.
Because
designs or procedures may never be applied or only partially executed, the CRM
models a loose relationship between the plan and the respective
product.
Examples:
§
the ISO standardisation procedure
§
the musical notation for Beethoven’s “Ode to
Joy”
§
the architectural drawings for the Kölner Dom in
Cologne, Germany
§
folio 860 of the Codex Atlanticus from Leonardo
da Vinci, 1486-1490, kept in the Biblioteca Ambrosiana
in Milan
Properties:
P68 foresees use of (use foreseen by): E57
Material
P69 is associated
with: E29
Design or Procedure
E30 Right
Subclass
of: E89 Propositional
Object
Scope
Note: This class comprises legal privileges concerning material and
immaterial things or their derivatives.
These include reproduction and property rights.
Examples:
§
copyright held by ISO on ISO/CD 21127
§
ownership of the “Mona Lisa” by the Louvre
E31
Document
Subclass of:
E73 Information
Object
Superclass of:
E32 Authority
Document
Scope
note: This class
comprises identifiable immaterial items that make propositions about
reality.
These
propositions may be expressed in text, graphics, images, audiograms, videograms
or by other similar means. Documentation databases are regarded as a special
case of E31 Document. This class should not be confused with the term “document”
in Information Technology, which is compatible with E73 Information
Object.
Examples:
§
the Encyclopaedia Britannica (E32)
§
the photo of the Allied Leaders at Yalta
published by UPI, 1945
§
the Doomsday Book
Properties:
P70 documents (is
documented in): E1 CRM
Entity
E32 Authority
Document
Subclass of:
E31
Document
Scope
note: This class
comprises encyclopaedia, thesauri, authority lists and other documents that
define terminology or conceptual systems for consistent use.
Examples:
§
Webster's Dictionary
§
Getty Art and Architecture Thesaurus
§
the CIDOC Conceptual Reference Model
Properties:
P71 lists (is
listed in): E55
Type
E33 Linguistic
Object
Subclass of:
E73 Information
Object
Superclass of:
E34
Inscription
E35
Title
Scope
note: This class
comprises identifiable expressions in natural language or languages.
Instances of E33 Linguistic Object can be
expressed in many ways: e.g. as written texts, recorded speech or sign language.
However, the CRM treats instances of E33 Linguistic Object independently from
the medium or method by which they are expressed. Expressions in formal
languages, such as computer code or mathematical formulae, are not treated as
instances of E33 Linguistic Object by the CRM. These should be modelled as
instances of E73 Information Object.
The text of an instance of E33 Linguistic
Object can be documented in a note by P3 has note: E62 String
Examples:
§
the text of the Ellesmere Chaucer
manuscript
§
the lyrics of the song "Blue Suede
Shoes"
§
the text of the Jabberwocky by Lewis
Carroll
§
the text of "Doktoro Jekyll kaj Sinjoro Hyde" (an
Esperanto translation of Dr Jekyll and Mr Hyde)
Properties:
P72 has language
(is language of): E56
Language
P73 has
translation (is translation of): E33 Linguistic
Object
E34
Inscription
Subclass of:
E33 Linguistic
Object
E37
Mark
Scope
note: This class
comprises recognisable, short texts attached to instances of E24 Physical
Man-Made Thing.
The
transcription of the text can be documented in a note by P3 has note: E62
String. The alphabet used can be documented by P2 has type: E55 Type.
This class does not intend to describe the idiosyncratic characteristics of an
individual physical embodiment of an inscription, but the underlying prototype.
The physical embodiment is modelled in the CRM as E24 Physical Man-Made
Thing.
The relationship of a physical copy of a book to the text it contains
is modelled using E84 Information Carrier. P128 carries (is carried by): E33
Linguistic Object.
Examples:
§
“keep off the grass” on a sign stuck in the lawn
of the quad of Balliol College
§
The text published in Corpus Inscriptionum
Latinarum V 895
§
Kilroy was here
E35 Title
Subclass of:
E33 Linguistic
Object
E41
Appellation
Scope
note: This class comprises the names assigned to works, such as texts,
artworks or pieces of music.
Titles are proper noun phrases or verbal phrases, and should not be
confused with generic object names such as “chair”, “painting” or “book” (the
latter are common nouns and are modelled in the CRM as instances of E55 Type).
Titles may be assigned by the creator of the work itself, or by a social group.
This class also comprises the translations of titles that are used as
surrogates for the original titles in different social contexts.
Examples:
§
The Merchant of Venice
§
Mona Lisa
§
La Pie or The Magpie
§
Lucy in the Sky with Diamonds
E36 Visual
Item
Subclass of:
E73 Information
Object
Superclass of:
E37
Mark
E38
Scope Note:
This class comprises the intellectual or conceptual aspects of recognisable
marks and images.
This class
does not intend to describe the idiosyncratic characteristics of an individual
physical embodiment of a visual item, but the underlying prototype. For example,
a mark such as the ICOM logo is generally considered to be the same logo when
used on any number of publications. The size, orientation and colour may change,
but the logo remains uniquely identifiable. The same is true of images that are
reproduced many times. This means that visual items are independent of their
physical support.
The class E36 Visual Item provides a means of identifying and linking
together instances of E24 Physical Man-Made Thing that carry the same visual
symbols, marks or images etc. The property P62 depicts (is depicted by)
between E24 Physical Man-Made Thing and depicted subjects (E1 CRM Entity) can be
regarded as a short-cut of the more fully developed path from E24 Physical
Man-Made Thing through P65 shows visual item (is shown by), E36 Visual
Item, P138 represents (has representation) to E1CRM Entity, which in
addition captures the optical features of the depiction.
Examples:
§
the visual appearance of Monet’s “La Pie”
(E38)
§
the Coca-Cola logo (E34)
§
the Chi-Rho (E37)
§
the communist red star (E37)
Properties:
P138 represents
(has representation): E1 CRM
Entity
(P138.1 mode of
representation: E55
Type)
E37 Mark
Subclass of:
E36 Visual
Item
Superclass of:
E34
Inscription
Scope
note: This class
comprises symbols, signs, signatures or short texts applied to instances of E24
Physical Man-Made Thing by arbitrary techniques in order to indicate the
creator, owner, dedications, purpose, etc.
This class specifically excludes features that
have no semantic significance, such as scratches or tool marks. These should be
documented as instances of E25 Man-Made Feature.
Examples:
§
Minoan double axe mark
§
©
§
J
E38 Image
Subclass of:
E36 Visual
Item
Scope
note: This class
comprises distributions of form, tone and colour that may be found on surfaces
such as photos, paintings, prints and sculptures or directly on electronic
media.
The
degree to which variations in the distribution of form and colour affect the
identity of an instance of E38 Image depends on a given purpose. The original
painting of the Mona Lisa in the Louvre may be said to bear the same instance of
E38 Image as reproductions in the form of transparencies, postcards, posters or
T-shirts, even though they may differ in size and carrier and may vary in tone
and colour. The images in a “spot the difference” competition are not the same
with respect to their context, however similar they may at first
appear.
Examples:
§
the front side of all 20 Swiss Frs
notes
§
the image depicted on all reproductions of the
Mona Lisa
E39 Actor
Subclass of:
E77 Persistent
Item
Superclass of:
E21
Person
Scope
note: This class
comprises people, either individually or in groups, who have the potential to
perform intentional actions for which they can be held responsible.
The CRM does not attempt to model the inadvertent actions of such
actors. Individual people should be documented as instances of E21 Person,
whereas groups should be documented as instances of either E74 Group or its
subclass E40 Legal Body.
Examples:
§
London and Continental
Railways (E40)
§
the Governor of the Bank of England in 1975
(E21)
§
Sir Ian McKellan (E21)
Properties:
P74 has current
or former residence (is current or former residence of): E53
Place
P75 possesses (is
possessed by): E30
Right
P76 has contact
point (provides access to): E51 Contact
Point
P131 is
identified by (identifies): E82 Actor
Appellation
E40 Legal
Body
Subcass
of: E74
Group
Scope Note:
This class comprises institutions or groups of people that have obtained a legal
recognition as a group and can act collectively as agents.
This means that they can perform actions, own property, create or
destroy things and can be held collectively responsible for their actions like
individual people. The term 'personne morale' is often used for this in French.
Examples
§
Greenpeace
§
Paveprime Ltd
§
the National Museum of Denmark
E41
Appellation
Subclass of:
E90 Symbolic
Object
Superclass of:
E35
Title
E42
Identifier
E44 Place
Appellation
E49 Time
Appellation
E51 Contact
Point
E75 Conceptual
Object Appellation
E82 Actor
Appellation
Scope
note: This class
comprises all sequences of signs of any nature, either meaningful or not, that
are used or can be used to refer to and identify a specific instance of some
class within a certain context.
Instances of E41 Appellation do not identify things by their meaning,
even if they happen to have one, but by convention, tradition, or agreement.
Instances of E41 Appellation are cultural constructs; as such, they have a
context, a history, and a use in time and space by some group of users. A given
instance of E41 Appellation can have alternative forms, i.e., other instances of
E41 Appellation that are always regarded as equivalent independent from the
thing it denotes.
Specific
subclasses of E41 Appellation should be used when instances of E41 Appellation
of a characteristic form are used for particular objects. Instances of E49 Time
Appellation, for example, which take the form of instances of E50 Date, can be
easily recognised.
E41 Appellation should not be confused with the act of naming
something. Cf. E15 Identifier Assignment
Examples:
§
"Martin"
§
"the Forth Bridge"
§
"the Merchant of Venice" (E35)
§
"Spigelia marilandica (L.) L." [not the
species, just the name]
§
"information science" [not the science itself,
but the name through which we refer to it in an English-speaking context]
Properties:
P139 has
alternative form: E41
Appellation
E42
Identifier
Subclass of:
E41
Appellation
Scope
note: This class comprises strings or codes
assigned to instances of E1 CRM Entity in order to identify them uniquely and
permanently within the context of one or more organisations. Such codes are
often known as inventory numbers, registration codes, etc. and are typically
composed of alphanumeric sequences. The class E42 Identifier is not normally
used for machine-generated identifiers used for automated processing unless
these are also used by human agents.
Examples:
§
“MM.GE.195”
§
“13.45.1976”
§
“OXCMS: 1997.4.1”
§
ISSN “0041-5278”
§
ISRC “FIFIN8900116”
§
Shelf mark “Res 8 P 10”
§
“Guillaume de Machaut (1300?-1377)” [a controlled
personal name heading that follows the French rules]
E44 Place Appellation
Subclass of:
E41
Appellation
Superclass
of E45
Address
E46 Section
Definition
E47 Spatial
Coordinates
E48
Place Name
Scope Note:
This class comprises any sort of identifier characteristically used to refer to
an E53 Place.
Instances of E44 Place Appellation may vary in their degree of
precision and their meaning may vary over time - the same instance of E44 Place
Appellation may be used to refer to several places, either because of cultural
shifts, or because objects used as reference points have moved around. Instances
of E44 Place Appellation can be extremely varied in form: postal addresses,
instances of E47 Spatial Coordinate, and parts of buildings can all be
considered as instances of E44 Place Appellation.
Examples:
§
Vienna
§
CH-1211, Genève
§
Aquae Sulis Minerva
§
Bath
§
Cambridge
§
the Other Place
§
the City
E45 Address
Subclass of:
E44 Place
Appellation
E51 Contact
Point
Scope Note:
This class comprises identifiers expressed in coding systems for places, such as
postal addresses used for mailing.
An E45 Address can be considered both as the name of an E53 Place and
as an E51 Contact Point for an E39 Actor. This dual aspect is reflected in the
multiple inheritance. However, some forms of mailing addresses, such as a postal
box, are only instances of E51 Contact Point, since they do not identify any
particular Place. These should not be documented as instances of E45
Address.
Examples:
§
1-29-3 Otsuka, Bunkyo-ku,
Tokyo, 121, Japan
§
Rue David Dufour 5, CH-1211, Genève
E46 Section
Definition
Subclass of:
E44 Place
Appellation
Scope Note:
This class comprises areas of objects referred to in terms specific to the
general geometry or structure of its kind.
The 'prow' of the boat, the 'frame' of the picture, the 'front' of
the building are all instances of E46 Section Definition. The class highlights
the fact that parts of objects can be treated as locations. This holds in
particular for features without natural boundaries, such as the “head” of a
marble statue made out of one block (cf. E53 Place). In answer to the question
'where is the signature?' one might reply 'on the lower left corner'. (Section
Definition is closely related to the term “segment” in Gerstl, P.&
Pribbenow, S, 1996 “ A conceptual theory of part – whole relations and its
applications”, Data & Knowledge Engineering
20 305-322, North Holland- Elsevier ).
Examples:
§
the entrance lobby to the Ripley
Center
§
the poop deck of H.M.S Victory
§
the Venus de Milo’s left buttock
§
left inner side of my box
E47 Spatial
Coordinates
Subclass of:
E44 Place
Appellation
Scope Note:
This class comprises the textual or numeric information required to locate
specific instances of E53 Place within schemes of spatial identification.
Coordinates are a specific form of E44 Place Appellation, that is, a
means of referring to a particular E53 Place. Coordinates are not restricted to
longitude, latitude and altitude. Any regular system of reference that maps onto
an E19 Physical Object can be used to generate coordinates.
Examples:
§
6°5’29”N 45°12’13”W
§
Black queen’s bishop 4 [chess
coordinate]
E48 Place Name
Subclass of:
E44 Place
Appellation
Scope Note:
This class comprises particular and common forms of E44 Place Appellation.
Place Names may change their application over time: the name of an
E53 Place may change, and a name may be reused for a different E53 Place.
Instances of E48 Place Name are typically subject to place name
gazetteers.
Examples:
§
Greece
§
Athens
§
Geneva
§
Lac Léman
E49 Time
Appellation
Subclass of:
E41
Appellation
Superclass
of E50
Date
Scope Note:
This class comprises all forms of names or codes, such as historical periods,
and dates, which are characteristically used to refer to a specific E52
Time-Span.
The
instances of E49 Time Appellation may vary in their degree of precision, and
they may be relative to other time frames, “Before Christ” for example.
Instances of E52 Time-Span are often defined by
reference to a cultural period or an event e.g. ‘the duration of the Ming
Dynasty’.
Examples:
§
Meiji [Japanese term for a specific
time-span]
§
1st half of the XX century
§
Quaternary
§
1215 Hegira [a date in the Islamic
calendar]
§
Last century
E50 Date
Subclass of:
E49 Time
Appellation
Scope Note:
This class comprises specific forms of E49 Time Appellation.
Dates may vary in their degree of precision.
Examples:
§
1900
§
4-4-1959
§
19-MAR-1922
§
19640604
E51 Contact
Point
Subcass
of: E41
Appellation
Superclass
of: E45
Address
Scope Note:
This class comprises identifiers employed, or understood, by communication
services to direct communications to an instance of E39 Actor. These
include E-mail addresses, telephone numbers, post office boxes, Fax
numbers, etc. Most postal addresses can be considered both as instances of
E44 Place Appellation and E51 Contact Point. In such cases the subclass
E45 Address should be used..
Examples:
§
+41 22 418 5571
§
weasel@paveprime.com
E52
Time-Span
Subclass of:
E1 CRM
Entity
Scope
note: This class
comprises abstract temporal extents, in the sense of Galilean physics, having a
beginning, an end and a duration.
Time Span has no other semantic connotations. Time-Spans are used to
define the temporal extent of instances of E4 Period, E5 Event and any other
phenomena valid for a certain time. An E52 Time-Span may be identified by one or
more instances of E49 Time Appellation.
Since our knowledge of history is imperfect, instances of E52
Time-Span can best be considered as approximations of the actual Time-Spans of
temporal entities. The properties of E52 Time-Span are intended to allow these
approximations to be expressed precisely. An extreme case of
approximation, might, for example, define an E52 Time-Span having unknown
beginning, end and duration. Used as a common E52 Time-Span for two events, it
would nevertheless define them as being simultaneous, even if nothing else was
known.
Automatic processing and querying of instances of E52 Time-Span is facilitated
if data can be parsed into an E61 Time Primitive.
Examples:
§
1961
§
From 12-17-1993 to 12-8-1996
§
14h30 – 16h22 4th July 1945
§
9.30 am 1.1.1999 to 2.00
pm 1.1.1999
§
duration of the Ming Dynasty
Properties:
P78 is identified by (identifies): E49 Time
Appellation
P79 beginning is
qualified by: E62
String
P80 end is
qualified by: E62
String
P81 ongoing
throughout: E61 Time
Primitive
P82 at some time
within: E61
Time Primitive
P83 had at least
duration (was minimum duration of): E54
Dimension
P84 had at most
duration (was maximum duration of): E54
Dimension
P86 falls within
(contains): E52
Time-Span
E53 Place
Subclass of:
E1 CRM
Entity
Scope
note: This class
comprises extents in space, in particular on the surface of the earth, in the
pure sense of physics: independent from temporal phenomena and matter.
The instances of E53 Place are usually determined by reference to the
position of “immobile” objects such as buildings, cities, mountains, rivers, or
dedicated geodetic marks. A Place can be determined by combining a frame of
reference and a location with respect to this frame. It may be identified by one
or more instances of E44 Place Appellation.
It is sometimes argued that instances of E53 Place are best
identified by global coordinates or absolute reference systems. However,
relative references are often more relevant in the context of cultural
documentation and tend to be more precise. In particular, we are often
interested in position in relation to large, mobile objects, such as ships. For
example, the Place at which Nelson died is known with reference to a large
mobile object – H.M.S Victory. A resolution of this Place in terms of absolute
coordinates would require knowledge of the movements of the vessel and the
precise time of death, either of which may be revised, and the result would lack
historical and cultural relevance.
Any object can serve as a frame of reference for E53 Place
determination. The model foresees the notion of a "section" of an E19 Physical
Object as a valid E53 Place determination.
Examples:
§
the extent of the UK in the year 2003
§
the position of the hallmark on the inside of my
wedding ring
§
the place referred to in the phrase: “Fish
collected at three miles north of the confluence of the Arve and the
Rhone”
§
here -> <-
Properties:
P87 is identified
by (identifies): E44 Place
Appellation
P88 consists of
(forms part of): E53 Place
P89 falls within
(contains): E53
Place
P121 overlaps
with: E53
Place
P122 borders
with: E53
Place
E54 Dimension
Subclass of:
E1 CRM
Entity
Scope
note: This class
comprises quantifiable properties that can be measured by some calibrated means
and can be approximated by values, i.e. points or regions in a mathematical or
conceptual space, such as natural or real numbers, RGB values etc.
An instance of E54 Dimension represents the true quantity,
independent from its numerical approximation, e.g. in inches or in cm. The
properties of the class E54 Dimension allow for expressing the numerical
approximation of the values of an instance of E54 Dimension. If the true values
belong to a non-discrete space, such as spatial distances, it is recommended to
record them as approximations by intervals or regions of indeterminacy enclosing
the assumed true values. For instance, a length of 5 cm may be recorded as
4.5-5.5 cm, according to the precision of the respective observation. Note, that
interoperability of values described in different units depends critically on
the representation as value regions.
Numerical approximations in archaic instances of E58 Measurement Unit
used in historical records should be preserved. Equivalents corresponding to
current knowledge should be recorded as additional instances of E54 Dimension as
appropriate.
Examples:
§
currency: £26.00
§
length: 3.9-4.1 cm
§
diameter 26 mm
§
weight 150 lbs
§
density: 0.85 gm/cc
§
luminescence: 56 ISO lumens
§
tin content: 0.46 %
§
taille au garot: 5 hands
§
calibrated C14 date: 2460-2720 years, etc
Properties:
P90 has value: E60
Number
P91 has unit (is
unit of): E58
Measurement Unit
E55 Type
Subclass of:
E28 Conceptual
Object
Superclass of:
E56
Language
E57
Material
E58
Measurement Unit
Scope
note: This class
comprises concepts denoted by terms from thesauri and controlled vocabularies
used to characterize and classify instances of CRM classes. Instances of E55
Type represent concepts in contrast to instances of E41 Appellation which
are used to name instances of CRM classes.
E55 Type is the
CRM’s interface to domain specific ontologies and thesauri. These can be
represented in the CRM as subclasses of E55 Type, forming hierarchies of terms,
i.e. instances of E55 Type linked via P127 has broader term (has narrower
term). Such hierarchies may be extended with additional properties.
Examples:
§
weight, length, depth [types of E54
Dimension]
§
portrait, sketch, animation [types of E38
image]
§
French, English, German [E56]
§
excellent, good, poor [types of E3 Condition
State]
§
Ford Model T, chop stick [types of E22 Man-Made
Object]
§
cave, doline, scratch [types of E26 Physical
Feature]
§
poem, short story [types of E33 Linguistic
Object]
§
wedding, earthquake, skirmish [types of E5
Event]
Properties:
P127 has
broader term (has narrower term): E55
Type
E56 Language
Subclass of:
E55
Type
Scope
note: This class is
a specialization of E55 Type and comprises the natural languages in the sense of
concepts.
This type is used categorically in the model
without reference to instances of it, i.e. the Model does not foresee the
description of instances of instances of E56 Language, e.g.: “instances of Mandarin Chinese”.
It is recommended that internationally or nationally agreed codes and
terminology are used to denote instances of E56 Language, such as those defined
in ISO 639:1988.
Examples:
§
el [Greek]
§
en [English]
§
eo [Esperanto]
§
es [Spanish]
§
fr [French]
E57 Material
Subclass of:
E55
Type
Scope
note: This class is
a specialization of E55 Type and comprises the concepts of materials.
Instances
of E57 Material may denote properties of matter before its use, during its use,
and as incorporated in an object, such as ultramarine powder, tempera paste,
reinforced concrete. Discrete pieces of raw-materials kept in museums, such as
bricks, sheets of fabric, pieces of metal, should be modelled individually in
the same way as other objects. Discrete used or processed pieces, such as the
stones from Nefer Titi's temple, should be modelled as parts (cf. P46 is
composed of).
This type
is used categorically in the model without reference to instances of it, i.e.
the Model does not foresee the description of instances of instances of E57
Material, e.g.: “instances of gold”.
It is recommended
that internationally or nationally agreed codes and terminology are
used.
Examples:
§
brick
§
gold
§
aluminium
§
polycarbonate
§
resin
E58 Measurement
Unit
Subclass of:
E55
Type
Scope Note:
This class is a specialization of E55 Type and comprises the types of
measurement units: feet, inches, centimetres, litres, lumens, etc.
This type
is used categorically in the model without reference to instances of it, i.e.
the Model does not foresee the description of instances of instances of E58
Measurement Unit, e.g.: “instances of cm”.
Système International (SI) units or internationally recognized non-SI
terms should be used whenever possible. (ISO 1000:1992). Archaic Measurement
Units used in historical records should be preserved.
Examples:
§
cm [centimetre]
§
km [kilometre]
§
m [meter]
§
m/s
[meters per second]
§
A [Ampere]
§
GRD [Greek Drachme]
§
°C [degrees centigrade]
E59 Primitive
Value
Superclass of:
E60
Number
E61 Time
Primitive
E62 String
Scope Note:
This class comprises primitive values used as documentation elements, which are
not further elaborated upon within the model.
As such they are not considered as elements within our universe of
discourse. No specific implementation recommendations are made. It is
recommended that the primitive value system from the implementation platform be
used to substitute for this class and its subclasses.
Examples:
§
ABCDEFG (E62)
§
3.14 (E60)
§
0
§
1921-01-01 (E61)
E60 Number
Subclass
of: E59 Primitive
Value
Scope Note:
This class comprises any encoding of computable (algebraic) values such as
integers, real numbers, complex numbers, vectors, tensors etc., including
intervals of these values to express limited precision.
Numbers are fundamentally distinct from identifiers in continua, such
as instances of E50 Date and E47 Spatial Coordinate, even though their encoding
may be similar. Instances of E60 Number can be combined with each other in
algebraic operations to yield other instances of E60 Number, e.g., 1+1=2.
Identifiers in continua may be combined with numbers expressing distances to
yield new identifiers, e.g., 1924-01-31 + 2 days = 1924-02-02. Cf. E54 Dimension
Examples:
§
5
§
3+2i
§
1.5e-04
§
(0.5, - 0.7,88)
E61 Time
Primitive
Subclass of:
E59 Primitive
Value
Scope Note:
This class comprises instances of E59 Primitive Value for time that should be
implemented with appropriate validation, precision and interval logic to express
date ranges relevant to cultural documentation.
E61 Time Primitive is not further elaborated upon within the
model.
Examples:
§
1994 – 1997
§
13 May 1768
§
2000/01/01 00:00:59.7
§
85th century BC
E62 String
Subclass of:
E59 Primitive
Value
Scope Note:
This class comprises the instances of E59 Primitive Values used for
documentation such as free text strings, bitmaps, vector graphics, etc.
E62 String is not further elaborated upon within the model
Examples:
§
the Quick Brown Fox Jumps Over the Lazy
Dog
§
6F 6E 54 79 70 31 0D 9E
E63 Beginning of Existence
Subclass of:
E5
Event
E65
Creation
E81
Transformation
Scope note:
This class comprises events
that bring into existence any E77 Persistent Item.
It may be used for temporal reasoning about things (intellectual
products, physical items, groups of people, living beings) beginning to exist;
it serves as a hook for determination of a terminus postquem and antequem.
Examples:
§
the birth of my child
§
the birth of Snoopy, my dog
§
the calving of the iceberg that sank the
Titanic
§
the construction of the Eiffel Tower
Properties:
P92 brought into
existence (was brought into existence by): E77 Persistent
Item
E64 End of Existence
Subclass of:
E5
Event
Superclass of:
E6
Destruction
E68
Dissolution
Scope note:
This class comprises
events that end the existence of any E77 Persistent Item.
It may be used for temporal reasoning about
things (physical items, groups of people, living beings) ceasing to exist; it
serves as a hook for determination of a terminus postquem and antequem. In cases
where substance from a Persistent Item continues to exist in a new form, the
process would be documented by E81 Transformation.
Examples:
§
the death of Snoopy, my dog
§
the melting of the snowman
§
the burning of the Temple of Artemis in Ephesos
by Herostratos in 356BC
Properties:
P93 took out of
existence (was taken out of existence by): E77 Persistent
Item
E65 Creation
Subclass of:
E7
Activity
Superclass of:
E83 Type
Creation
Scope note:
This class comprises
events that result in the creation of conceptual items or immaterial products,
such as legends, poems, texts, music, images, movies, laws, types
etc.
Examples:
§
the framing of the U.S. Constitution
§
the drafting of U.N. resolution 1441
Properties:
P94 has created
(was created by): E28 Conceptual
Object
E66 Formation
Subclass of:
E7
Activity
E63
Beginning of Existence
Scope note:
This class comprises events
that result in the formation of a formal or informal E74 Group of people, such
as a club, society, association, corporation or nation.
E66
Formation does not include the arbitrary aggregation of people who do not act as
a collective.
The
formation of an instance of E74 Group does not mean that the group is populated
with members at the time of formation. In order to express the joining of
members at the time of formation, the respective activity should be
simultaneously an instance of both E66 Formation and E85 Joining.
Examples:
§
the formation of the CIDOC CRM Special Interest
Group
§
the formation of the Soviet Union
§
the conspiring of the murderers of
Caesar
Properties:
P95 has formed
(was formed by): E74
Group
E67 Birth
Subclass of:
E63 Beginning of
Existence
Scope note:
This class comprises the birth of a human beings. E67 Birth is a biological
event focussing on the context of people coming into life. (E63 Beginning of
Existence comprises the coming into life of any living beings).
Twins, triplets etc. are brought into life by
the same E67 Birth event. The introduction of the E67 Birth event as a
documentation element allows the description of a range of family relationships
in a simple model. Suitable extensions may describe more details and the
complexity of motherhood with the intervention of modern medicine. In this
model, the biological father is not seen as a necessary participant in the E67
Birth event.
Examples:
§
the birth of Alexander the Great
Properties:
P96 by mother
(gave birth): E21
Person
P97 from father
(was father for): E21
Person
P98 brought into
life (was born): E21
Person
E68 Dissolution
Subclass of:
E64 End of
Existence
Scope note:
This class comprises the events
that result in the formal or informal termination of an E74 Group of people.
If the dissolution was deliberate, the Dissolution event should also
be instantiated as an E7 Activity.
Examples:
§
the fall of the Roman Empire
§
the liquidation of Enron Corporation
Properties:
P99 dissolved
(was dissolved by): E74
Group
E69 Death
Subclass of:
E64 End of
Existence
Scope note:
This class comprises the
deaths of human beings.
If a person is killed, their death
should be instantiated as E69 Death and as E7 Activity. The death or perishing
of other living beings should be documented using E64 End of
Existence.
Examples:
§
the murder of Julius Caesar (E69,E7)
§
the death of Senator Paul Wellstone
Properties:
P100 was death
of (died in): E21
Person
E70 Thing
Subclass of:
E77 Persistent
Item
Superclass of:
E71 Man-Made
Thing
E72 Legal
Object
Scope note:
This general class comprises usable
discrete, identifiable, instances of E77 Persistent Item that are documented as
single units.
They can be either intellectual products or physical things, and are
characterized by relative stability. They may for instance either have a solid
physical form, an electronic encoding, or they may be logical concept or
structure.
Examples:
§
my photograph collection (E78)
§
the pint of milk in my refrigerator
§
the plan of the Stassburger Muenster
§
the thing on the top of Otto Hahn’s
desk
§
the design of the no-smoking sign
(E29)
§
the cave of Dirou, Mani, Greece (E27)
Properties
P43 has dimension
(is dimension of): E54
Dimension
P101 had as
general use (was use of): E55
Type
P130 shows
features of (features are also found on): E70
Thing
(P130.1
kind of similarity: E55
Type)
E71 Man-Made Thing
Subclass of:
E70
Thing
Superclass of:
E24 Physical
Man-Made Thing
E28 Conceptual
Object
Scope note:
This class comprises
discrete, identifiable man-made items that are documented as single units.
These items are either intellectual products or man-made physical
things, and are characterized by relative stability. They may for instance have
a solid physical form, an electronic encoding, or they may be logical concepts
or structures.
Examples:
§
Beethoven’s 5th Symphony
(E73)
§
Michelangelo’s David
§
Einstein’s Theory of General Relativity
(E73)
§
the taxon ‘Fringilla coelebs Linnaeus,1758’ (E55)
Properties
P102 has title
(is title of): E35
Title
(P102.1
has type: E55
Type)
P103 was
intended for (was intention of): E55
Type
E72 Legal Object
Subclass of:
E70
Thing
Superclass of:
E18 Physical
Thing
E90
Symbolic Object
Scope
note: This class
comprises those material or immaterial items to which instances of E30 Right,
such as the right of ownership or use, can be applied.
This is true for all E18 Physical Thing. In the
case of instances of E28 Conceptual Object, however, the identity of the E28
Conceptual Object or the method of its use may be too ambiguous to reliably
establish instances of E30 Right, as in the case of taxa and inspirations.
Ownership of corporations is currently regarded as out of scope of the CRM.
Examples:
§
the Cullinan diamond (E19)
§
definition of the CIDOC Conceptual Reference
Model Version 2.1 (E73)
Properties:
P104 is subject
to (applies to): E30
Right
P105 right held
by (has right on): E39
Actor
E73 Information Object
Subclass of:
E89 Propositional
Object
E90
Symbolic Object
Superclass of:
E29 Design or
Procedure
E31
Document
E36 Visual
Item
Scope note:
This class comprises
identifiable immaterial items, such as a poems, jokes, data sets, images, texts,
multimedia objects, procedural prescriptions, computer program code, algorithm
or mathematical formulae, that have an objectively recognizable structure and
are documented as single units.
An E73 Information Object does not depend on a
specific physical carrier, which can include human memory, and it can exist on
one or more carriers simultaneously.
Instances of E73 Information Object of a linguistic nature should be
declared as instances of the E33 Linguistic Object subclass. Instances of E73
Information Object of a documentary nature should be declared as instances of
the E31 Document subclass. Conceptual items such as types and classes are not
instances of E73 Information Object, nor are ideas without a reproducible
expression.
Examples:
§
image BM000038850.JPG from the Clayton Herbarium
in London
§
E. A. Poe's "The Raven"
§
the movie "The Seven Samurai" by Akira
Kurosawa
§
the Maxwell Equations
Properties:
E74 Group
Subclass of:
E39
Actor
Superclass of:
E40 Legal
Body
Scope
note:
This class comprises any gatherings or organizations of two or more people that
act collectively or in a similar way due to any form of unifying relationship.
In the wider sense this class also comprises official positions which used to be
regarded in certain contexts as one actor, independent of the current holder of
the office, such as the president of a country.
A gathering of people becomes an E74 Group when it exhibits
organizational characteristics usually typified by a set of ideas or beliefs
held in common, or actions performed together. These might be communication,
creating some common artifact, a common purpose such as study, worship,
business, sports, etc. Nationality can be modeled as membership in an E74 Group
(cf. HumanML markup). Married couples and other concepts of family are regarded
as particular examples of E74 Group.
Examples:
§
the impressionists
§
the Navajo
§
the Greeks
§
the peace protestors in New York City on February
15 2003
§
Exxon-Mobil
§
King Solomon and his wives
§
The President of the Swiss Confederation
Properties:
P107 has current
or former member (is current or former member of): E39
Actor
E75 Conceptual Object Appellation
Subclass of:
E41
Appellation
Scope
note: This class comprises
all specific identifiers of intellectual products or standardized
patterns.
Examples:
§
ISBN 3-7913-1418-1
§
ISO2788-1986 (E)
E77 Persistent Item
Subclass of:
E1 CRM
Entity
Superclass
of: E39
Actor
E70
Thing
Scope
note: This class comprises
items that have a persistent identity, sometimes known as “endurants” in
philosophy.
They can be repeatedly recognized within the duration of their
existence by identity criteria rather than by continuity or observation.
Persistent Items can be either physical entities, such as people, animals or
things, or conceptual entities such as ideas, concepts, products of the
imagination or common names.
The criteria that determine the identity of an
item are often difficult to establish -; the decision depends largely on the
judgement of the observer. For example, a building is regarded as no longer
existing if it is dismantled and the materials reused in a different
configuration. On the other hand, human beings go through radical and profound
changes during their life-span, affecting both material composition and form,
yet preserve their identity by other criteria. Similarly, inanimate objects may
be subject to exchange of parts and matter. The class E77 Persistent Item does
not take any position about the nature of the applicable identity criteria and
if actual knowledge about identity of an instance of this class exists. There
may be cases, where the identity of an E77 Persistent Item is not decidable by a
certain state of knowledge.
The main classes of objects that fall outside
the scope the E77 Persistent Item class are temporal objects such as periods,
events and acts, and descriptive properties.
Examples:
§
Leonard da Vinci
§
Stonehenge
§
the hole in the ozone layer
§
the First Law of Thermodynamics
§
the Bermuda Triangle
E78 Collection
Subclass of:
E24 Physical
Man-Made Thing
Scope
note: This class comprises aggregations of instances of E18 Physical Thing
that are assembled and maintained (“curated” and
“preserved,” in museological terminology) by one or more instances of E39 Actor
over time for a specific purpose and audience, and according to a particular
collection development plan.
Items may be added or removed from an E78 Collection in pursuit of
this plan. This class should not be confused with the E39 Actor maintaining the
E78 Collection often referred to with the name of the E78 Collection (e.g. “The
Wallace Collection decided…”).
Collective objects in the general sense, like a tomb full of gifts, a
folder with stamps or a set of chessmen, should be documented as instances of
E19 Physical Object, and not as instances of E78 Collection. This is because
they form wholes either because they are physically bound together or because
they are kept together for their functionality.
Examples:
§
the John Clayton Herbarium
§
the Wallace Collection
§
Michael Foslie’s coralline red algae Herbarium at
Museum of Natural History and Archaeology, Trondheim, Norway
Properties:
P109 has current
or former curator (is current or former curator of): E39
Actor
E79 Part Addition
Subclass of:
E11
Modification
Scope note:
This class comprises activities
that result in an instance of E24 Physical Man-Made Thing being increased,
enlarged or augmented by the addition of a part.
Typical scenarios include the attachment of an accessory, the
integration of a component, the addition of an element to an aggregate object,
or the accessioning of an object into a curated E78 Collection. Objects to which
parts are added are, by definition, man-made, since the addition of a part
implies a human activity. Following the addition of parts, the resulting
man-made assemblages are treated objectively as single identifiable wholes, made
up of constituent or component parts bound together either physically (for
example the engine becoming a part of the car), or by sharing a common purpose
(such as the 32 chess pieces that make up a chess set). This class of activities
forms a basis for reasoning about the history and continuity of identity of
objects that are integrated into other objects over time, such as precious
gemstones being repeatedly incorporated into different items of jewellery, or
cultural artifacts being added to different museum instances of E78 Collection
over their lifespan.
Examples:
§
the setting of the koh-i-noor diamond into the
crown of Queen Elizabeth the Queen Mother
§
the addition of the painting “Room in Brooklyn”
by Edward Hopper to the collection of the Museum of Fine Arts, Boston
Properties:
P110 augmented
(was augmented by): E24 Physical
Man-Made Thing
P111 added (was
added by): E18
Physical Thing
E80 Part Removal
Subclass of:
E11
Modification
Scope
note: This class comprises
the activities that result in an instance of E18 Physical Thing being decreased
by the removal of a part.
Typical scenarios include the detachment of an accessory, the removal
of a component or part of a composite object, or the deaccessioning of an object
from a curated E78 Collection. If the E80 Part Removal results in the total
decomposition of the original object into pieces, such that the whole ceases to
exist, the activity should instead be modelled as an E81 Transformation, i.e. a
simultaneous destruction and production. In cases where the part removed has no
discernible identity prior to its removal but does have an identity subsequent
to its removal, the activity should be regarded as both E80 Part Removal and E12
Production. This class of activities forms a basis for reasoning about the
history, and continuity of identity over time, of objects that are removed from
other objects, such as precious gemstones being extracted from different items
of jewelry, or cultural artifacts being deaccessioned from different museum
collections over their lifespan.
Examples:
§
the removal of the engine from my car
§
the disposal of object number 1976:234 from the
collection
Properties:
P112 diminished
(was diminished by): E24 Physical
Man-Made Thing
P113 removed
(was removed by): E18 Physical
Thing
E81 Transformation
Subclass of:
E63 Beginning of
Existence
E64
End of Existence
Scope
note: This class comprises
the events that result in the simultaneous destruction of one E77 Persistent
Item and the creation of another E77 Persistent Item that preserves recognizable
substance from the first but has a fundamentally different nature and identity.
Although the two instances of E77 Persistent Item are treated as
discrete entities having separate, unique identities, they are causally
connected through the E81 Transformation; the destruction of the first E77
Persistent Item directly causes the creation of the second using or preserving
some relevant substance. Instances of E81 Transformation are therefore distinct
from re-classifications (documented using E17 Type Assignment) or modifications
(documented using E11 Modification) of objects that do not fundamentally change
their nature or identity. Characteristic cases are reconstructions and
repurposing of historical buildings or ruins, fires leaving buildings in ruins,
taxidermy of specimen in natural history and the reorganization of a corporate
body into a new one.
Examples:
§
the death and mummification of Tut Ankh Amun
(transformation of Tut Ankh Amun from a living person to a mummy)
Properties:
P123 resulted in
(resulted from): E77 Persistent
Item
P124 transformed
(was transformed by): E77 Persistent
Item
E82 Actor Appellation
Subclass of:
E41
Appellation
Scope
note: This class
comprises any sort of name, number, code or symbol characteristically used to
identify an E39 Actor.
An E39 Actor will typically have more than one E82 Actor Appellation,
and instances of E82 Actor Appellation in turn may have alternative
representations. The distinction between corporate and
personal names, which is particularly important in library applications, should
be made by explicitly linking the E82 Actor Appellation to an instance of either
E21 Person or E74 Group/E40 Legal Body. If this is not possible, the distinction
can be made through the use of the P2 has type mechanism.
Examples:
§
John Doe
§
Doe, J.
§
the U.S. Social Security Number
246-14-2304
§
the Artist Formerly Known as Prince
§
the Master of the Flemish Madonna
§
Raphael’s Workshop
§
the Brontë Sisters
§
ICOM
§
International Council of Museums
E83 Type Creation
Subclass of:
E65
Creation
Scope
note: This class comprises
activities formally defining new types of items.
It is typically a rigorous scholarly or scientific process that
ensures a type is exhaustively described and appropriately named. In some cases,
particularly in archaeology and the life sciences, E83 Type Creation requires
the identification of an exemplary specimen and the publication of the type
definition in an appropriate scholarly forum. The activity of E83 Type Creation
is central to research in the life sciences, where a type would be referred to
as a “taxon,” the type description as a “protologue,” and the exemplary
specimens as “orgininal element” or “holotype”.
Examples:
§
creation of the taxon 'Penicillium brefeldianum B. O. Dodge'
(1933)
§
addition of class E84 Information Carrier to the
CIDOC CRM
Properties:
P135 created
type (was created by): E55
Type
P136 was based
on (supported type creation)): E1 CRM
Entity
(P136.1
in the taxonomic role: E55
Type)
E84 Information
Carrier
Subclass of:
E22 Man-Made
Object
Scope
note: This class
comprises all instances of E22 Man-Made Object that are explicitly designed to
act as persistent physical carriers for instances of E73 Information Object.
This allows a relationship to be asserted between an E19 Physical
Object and its immaterial information contents. An E84 Information Carrier may
or may not contain information, e.g., a diskette. Note that any E18 Physical
Thing may carry information, such as an E34 Inscription. However, unless it was
specifically designed for this purpose, it is not an Information Carrier.
Therefore the property P128 carries (is carried by) applies to E18
Physical Thing in general.
Examples:
§
the Rosetta Stone
§
my paperback copy of Crime &
Punishment
§
the computer disk at ICS-FORTH that stores the
canonical Definition of the CIDOC CRM
E85
Joining
Subclass of:
E7
Activity
Scope note:
This class comprises the
activities that result in an instance of E39 Actor becoming a member of an
instance of E74 Group. This class does not imply initiative by either
party.
Typical scenarios include becoming a member of a social organisation,
becoming employee of a company, marriage, the adoption of a child by a family
and the inauguration of somebody into an official position.
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament for the University of Cambridge to the Convention Parliament of
1689
§
The inauguration of Mikhail Sergeyevich Gorbachev
as leader of the Union of Soviet Socialist Republics (USSR) in 1985
§
The implementation of the membership treaty
between EU and Denmark January 1. 1973
Properties:
P143 joined (was
joined by): E39
Actor
P144 joined with
(gained member by) E74
Group
E86
Leaving
Subclass of:
E7
Activity
Scope
note: This class comprises
the activities that result in an instance of E39 Actor to be disassociated from
an instance of E74 Group. This class does not imply initiative by either party.
Typical scenarios include the termination of membership in a social
organisation, ending the employment at a company, divorce, and the end of tenure
of somebody in an official position.
Examples:
§
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in
1702
§
George Washington’s leaving office in
1797
§
The implementation of the treaty regulating the
termination of Greenland’s membership in EU between EU, Denmark and Greenland
February 1. 1985
Properties:
P145 separated
(left by) E39
Actor
P146 separated
from (lost member by) E74
Group
E87 Curation Activity
Subclass of: E7
Activity
Scope
note: This class
comprises the activities that result in the continuity of management and the
preservation and evolution of instances of E78 Collection, following an implicit
or explicit curation plan.
It
specializes the notion of activity into the curation of a collection and allows
the history of curation to be recorded.
Items are
accumulated and organized following criteria like subject, chronological period,
material type, style of art etc. and can be added or removed from an E78
Collection for a specific purpose and/or audience. The initial aggregation of
items of a collection is regarded as an instance of E12 Production Event while
the activity of evolving, preserving and promoting a collection is regarded as
an instance of E87 Curation Activity.
Examples:
§
The curation of Michael. Foslie’s coralline
red algae Herbarium 1876 – 1909 (when Foslie died), now at Museum of Natural
History and Archaeology, Norway
Properties:
P147 curated
(was curated by): E78 Collection
E89 Propositional
Object
Subclass of:
E28 Conceptual
Object
Superclass of:
E73 Information
Object
E30
Right
Scope note:
This class comprises
immaterial items, including but not limited to stories, plots, procedural
prescriptions, algorithms, laws of physics or images that are, or represent in
some sense, sets of propositions about real or mental things and that are
documented as single units or serve as topic of discourse.
This class also comprises items that are
“about” something in the sense of a subject. In the wider sense, this class
includes expressions of psychological value such as non-figural art and musical
themes. However, conceptual items such as types and classes are not instances of
E89 Propositional Object. This should not be confused with the definition of a
type, which is indeed an instance of E89 Propositional Object.
Examples:
§
Maxwell’s Equations
§
The ideational contents of Aristotle’s book
entitled ‘Metaphysics’ as rendered in the Greek texts translated in … Oxford
edition…
§
The underlying prototype of any “no-smoking” sign
(E36)
§
The common ideas of the plots of the movie "The
Seven Samurai" by Akira Kurosawa and the movie “The
Magnificent Seven” by John Sturges
§
The image content of the photo of the Allied
Leaders at Yalta 1945 (E38)
Properties:
P148 has
component (is component of): E89 Propositional
Object
P67 refers to (is
referred to by): E1 CRM
Entity
(P67.1 has type:
E55
Type)
P129 is about
(is subject of): E1 CRM
Entity
E90 Symbolic
Object
Subclass of:
E28 Conceptual
Object
E72 Legal
Object
Superclass of:
E73 Information
Object
E41
Appellation
Scope note:
This class comprises identifiable symbols and
any aggregation of symbols, such as characters, identifiers, traffic signs,
emblems, texts, data sets, images, musical scores, multimedia objects, computer
program code or mathematical formulae that have an objectively recognizable
structure and that are documented as single units.
It includes sets of signs of any nature, which
may serve to designate something, or to communicate some propositional content.
An instance of E90 Symbolic Object does not
depend on a specific physical carrier, which can include human memory, and it
can exist on one or more carriers simultaneously. An instance of E90 Symbolic
Object may or may not have a specific meaning, for example an arbitrary
character string.
Examples:
§
‘ecognizabl’
§
The “no-smoking” sign (E36)
§
‘BM000038850.JPG’ (E75)
§
image BM000038850.JPG from the Clayton Herbarium
in London (E38)
§
The distribution of form, tone and colour found
on Leonardo da Vinci’s painting named “Mona Lisa” (E38)
§
The Italian text of Dante’s “Divina Commedia” as
found in the authoritative critical edition La Commedia secondo l’antica
vulgata a cura di Giorgio Petrocchi, Milano: Mondadori, 1966-67 (= Le Opere
di Dante Alighieri, Edizione Nazionale a cura della Società Dantesca Italiana,
VII,
1-4)
(E33)
Properties:
P106 is composed
of (forms part of): E90 Symbolic
Object
The properties of the CRM are
comprehensively declared in this section using the following format:
·
Property names are presented as headings in bold
face, preceded by unique property identifiers;
·
The line “Domain:” declares the class for which
the property is defined;
·
The line “Range:” declares the class to which the
property points, or that provides the values for the property;
·
The line “Superproperty of:” is a cross-reference
to any subproperties the property may have;
·
The line “Quantification:” declares the possible
number of occurrences for domain and range class instances for the property.
Possible values are: 1:many, many:many, many:1;
·
The line “Scope note:” contains the textual
definition of the concept the property represents;
·
The line “Examples:” contains a bulleted list of
examples of instances of this property. If the example is also instance of a
subproperty of this property, the unique identifier of the subclass is added in
parenthesis. If the example instantiates two properties, the unique identifiers
of both properties is added in parenthesis.
The line “Examples:” provides illustrative examples showing how the
property should be used.
P1 is identified by
(identifies)
Domain:
E1 CRM Entity
Range:
E41 Appellation
Superproperty
of:
E1 CRM Entity.
P48 has preferred
identifier (is preferred identifier of): E42
Identifier
E52 Time-Span.
P78 is
identified by (identifies): E49 Time
Appellation
E53 Place. P87 is identified
by (identifies): E44 Place
Appellation
E71 Man-Made
Thing. P102
has title (is title of): E35
Title
E39 Actor. P131 is
identified by (identifies): E82 Actor
Appellation
Scope
note: This property
describes the naming or identification of any real world item by a name or any
other identifier.
This property is intended for identifiers in general use, which form
part of the world the model intends to describe, and not merely for internal
database identifiers which are specific to a technical system, unless these
latter also have a more general use outside the technical context. This property
includes in particular identification by mathematical expressions such as
coordinate systems used for the identification of instances of E53 Place. The
property does not reveal anything about when, where and by whom this identifier
was used. A more detailed representation can be made using the fully developed
(i.e. indirect) path through E15 Identifier Assignment.
Examples:
§
the capital of Italy (E53) is identified by
“Rome” (E48)
§
text 25014–32 (E33) is identified by “The
Decline and Fall of the Roman Empire” (E35)
P2 has type (is type of)
Domain:
E1 CRM
Entity
Range:
E55
Type
Superproperty of. E1 CRM Entity.P137 exemplifies
(is exemplified by):E55 Type
Quantification: many to many (0,n:0,n)
Scope
note: This property allows
sub typing of CRM entities - a form of specialisation – through the use of a
terminological hierarchy, or thesaurus.
The CRM is intended to focus on the high-level entities and
relationships needed to describe data structures. Consequently, it does not
specialise entities any further than is required for this immediate purpose.
However, entities in the isA hierarchy of the CRM may by specialised into any
number of sub entities, which can be defined in the E55 Type hierarchy. E51
Contact Point, for example, may be specialised into “e-mail address”, “telephone
number”, “post office box”, “URL” etc. none of which figures explicitly in the
CRM hierarchy. Sub typing obviously requires consistency between the meaning of
the terms assigned and the more general intent of the CRM entity in
question.
Examples:
§
www.cidoc.icom.org (E51) has type
URL (E55)
P3 has note
Domain:
E1 CRM
Entity
Superproperty
of:
E52 Time-Span.
P79 beginning
is qualified by: E62
String
E52 Time-Span.
P80 end is
qualified by: E62
String
Quantification: one to
many (0,n:0,1)
Scope
note: This property is a
container for all informal descriptions about an object that have not been
expressed in terms of CRM constructs.
In particular it captures the characterisation of the item itself,
its internal structures, appearance etc.
Like property P2 has type (is type of), this property is a
consequence of the restricted focus of the CRM. The aim is not to capture, in a
structured form, everything that can be said about an item; indeed, the CRM
formalism is not regarded as sufficient to express everything that can be said.
Good practice requires use of distinct note fields for different aspects of a
characterisation. The P3.1 has type property of P3 has note allows
differentiation of specific notes, e.g. “construction”, “decoration” etc.
An item may have many notes, but a note is attached to a specific
item.
Examples:
§
coffee mug – OXCMS:1983.1.1 (E19) has note
“chipped at edge of handle” (E62) has type Condition (E55)
Properties:
P3.1 has type: E55
Type
P4 has time-span (is time-span
of)
Domain:
E2 Temporal
Entity
Range:
E52
Time-Span
Quantification: many to
one, necessary, dependent (1,1:1,n)
Scope
note: This property
describes the temporal confinement of an instance of an E2 Temporal
Entity.
The related E52 Time-Span is understood as the real Time-Span during
which the phenomena were active, which make up the temporal entity instance. It
does not convey any other meaning than a positioning on the “time-line” of
chronology. The Time-Span in turn is approximated by a set of dates (E61 Time
Primitive). A temporal entity can have in reality only one Time-Span, but there
may exist alternative opinions about it, which we would express by assigning
multiple Time-Spans. Related temporal entities may share a Time-Span. Time-Spans
may have completely unknown dates but other descriptions by which we can infer
knowledge.
Examples:
§
the Yalta Conference (E7) has time-span
Yalta Conference time-span (E52), ongoing throughout 11 February 1945
(E61)
P5 consists of (forms part
of)
Domain:
E3 Condition
State
Range:
E3 Condition
State
Quantification: one to
many (0,n:0,1)
Scope
note: This property
describes the decomposition of an E3 Condition State into discrete, subsidiary
states.
It is assumed that the sub-states into which the condition state is
analysed form a logical whole - although the entire story may not be completely
known – and that the sub-states are in fact constitutive of the general
condition state. For example, a general condition state of “in ruins” may
be decomposed into the individual stages of decay.
Examples:
The Condition State of the ruined Parthenon (E3 Condition State)
consists of (P5) a bombarded state (E3 Condition State) from the explosion of a
Venetian shell in 1687
P7 took place at
(witnessed)
Domain:
E4
Period
Range:
E53
Place
Superproperty
of:
E9 Move. P26 moved to (was
destination of): E53
Place
E9 Move. P27 moved from
(was origin of): E53
Place
Quantification: many to
many, necessary (1,n:0,n)
Scope
note: This property
describes the spatial location of an instance of E4 Period.
The related E53 Place should
be seen as an approximation of the geographical area within which the phenomena
that characterise the period in question occurred. P7took place at
(witnessed) does not convey any meaning other than spatial positioning
(generally on the surface of the earth). For example, the period
“Révolution française” can be said to have taken place in “France”, the
“Victorian” period, may be said to have taken place in “Britain” and its
colonies, as well as other parts of Europe and north America.
A period can take place at multiple locations.
Examples:
§
the period “Révolution française” (E4) took
place at France (E53)
P8 took place on or within (witnessed)
Domain:
E4
Period
Scope
note: This property
describes the location of an instance of E4 Period with respect to an E19
Physical Object.
P8 took place on or within (witnessed) is
a short-cut of a path defining a E53 Place with respect to the geometry of an
object. cf. E46 Section Definition.
For example, the French and German armistice of 22 June 1940 was
signed in the same railway carriage as the armistice of 11 November
1918.
Examples:
§
the coronation of Queen Elizabeth II (E7) took
place on or within Westminster Abbey (E19)
P9 consists of (forms part of)
Domain:
E4
Period
Quantification: one to
many, (0,n:0,1)
The sub-periods into which the period is decomposed form a logical
whole - although the entire picture may not be completely known - and the
sub-periods are constitutive of the general period.
Examples:
§
Cretan Bronze Age (E4) consists of
Middle Minoan (E4)
P10 falls within (contains)
Domain:
E4
Period
Quantification: many to many (0,n:0,n)
Scope
note: This property
describes an instance of E4 Period, which falls within the E53 Place and E52
Time-Span of another.
The difference with P9 consists of (forms part of) is subtle.
Unlike P9 consists of (forms part of), P10 falls within
(contains) does not imply any logical connection between the two periods
and it may refer to a period of a completely different type.
Examples:
§
the Great Plague (E4) falls within The
Gothic period (E4)
P11 had participant (participated in)
Domain:
E5
Event
Subproperty of: E5 Event. P12 occurred in
the presence of (was present at): E77 Persistent
Item
Superproperty
of:
E7 Activity. P14 carried out
by (performed): E39
Actor
E67 Birth. P96 by mother
(gave birth): E21
Person
E68
Dissolution. P99 dissolved
(was dissolved by): E74
Group
E85 Joining.P143 joined (was
joined by): E39
Actor
E85 Joining.P144 joined with
(gained member by): E74 Group
E86 Leaving.P145 separated
(left by):E39
Actor
E86 Leaving.P146 separated
from (lost member by):E74
Group
Quantification: many to many (0,n:0,n)
Scope
note: This property
describes the active or passive participation of instances of E39 Actors in an
E5 Event.
It connects the life-line of the related E39 Actor with the E53 Place
and E50 Date of the event. The property implies that the Actor was involved in
the event but does not imply any causal relationship. The subject of a portrait
can be said to have participated in the creation of the portrait.
Examples:
§
Napoleon (E21) participated in The Battle
of Waterloo (E7)
Or
§
Maria (E21) participated in Photographing
of Maria (E7)
P12 occurred in the presence of (was present
at)
Domain:
E5
Event
Superproperty
of:
E5 Event. P11 had
participant (participated in): E39
Actor
E7 Activity. P16 used specific
object (was used for): E70
Thing
E9 Move. P25 moved (moved
by): E19
Physical Object
E11
Modification. P31 has modified
(was modified by): E24 Physical
Man-Made Thing
E63 Beginning
of Existence. P92 brought into
existence (was brought into existence by): E77 Persistent
Item
E64 End of
Existence. P93
took out of existence (was taken out of existence by): E77 Persistent
Item
Quantification: many to
many, necessary (1,n:0,n)
Scope note:
This property describes the active or passive presence of an E77 Persistent Item
in an E5 Event without implying any specific role.
It connects the history of a thing with the E53 Place and E50 Date of
an event. For example, an object may be the desk, now in a museum on which a
treaty was signed. The presence of an immaterial thing implies the presence of
at least one of its carriers.
Examples:
§
Deckchair 42 (E19) was present at The
sinking of the Titanic (E5)
P13 destroyed (was destroyed by)
Domain:
E6
Destruction
Subproperty of: E64 End of
Existence. P93
took out of existence (was taken out of existence by): E77 Persistent
Item
Quantification: one to many, necessary
(1,n:0,1)
Scope
note: This property allows
specific instances of E18 Physical Thing that have been destroyed to be related
to a destruction event.
Destruction implies the end of an item’s life as a subject of
cultural documentation – the physical matter of which the item was composed may
in fact continue to exist. A destruction event may be contiguous with a
Production that brings into existence a derived object composed partly of matter
from the destroyed object.
Examples:
§
the Tay Bridge Disaster (E6) destroyed The
Tay Bridge (E22)
P14 carried out by (performed)
Domain:
E7
Activity
Subproperty of: E5 Event. P11 had
participant (participated in): E39
Actor
Superproperty
of:
E8 Acquisition.
P22
transferred title to (acquired title through): E39
Actor
E8 Acquisition.
P23
transferred title from (surrendered title through): E39
Actor
E10 Transfer of
Custody. P29
custody received by (received custody through): E39
Actor
Quantification: many to
many, necessary (1,n:0,n)
Scope
note: This property
describes the active participation of an E39 Actor in an E7 Activity.
It implies causal or legal responsibility. The P14.1 in the role
of property of the property allows the nature of an Actor’s participation to
be specified.
Examples:
§
the painting of the Sistine Chapel (E7) was
carried out by Michaelangelo Buonaroti (E21) in the role of master
craftsman (E55)
Properties:
P14.1 in the role of: E55
Type
P15 was influenced by (influenced)
Domain:
E7
Activity
Superproperty
of:
E7 Activity. P16 used specific
object (was used for): E70
Thing
E7
Activity. P17
was motivated by (motivated): E1 CRM
Entity
E7
Activity. P134 continued
(was continued by): E7
Activity
E83
Type Creation. P136 was based
on (supported type creation): E1 CRM
Entity
Quantification:
many to many (0,n:0,n)
Scope note:
This is a high level property, which captures the
relationship between an E7 Activity and anything that may have had some bearing
upon it.
The property has more specific sub properties.
Examples:
§
the designing of the Sydney Harbour Bridge (E7)
was influenced by the Tyne bridge (E22)
P16 used specific object (was used
for)
Domain:
E7
Activity
Subproperty of: E5 Event. P12 occurred in
the presence of (was present at): E77 Persistent
Item
E7
Activity. P15
was influenced by (influenced): E1 CRM
Entity
Superproperty of:E7 Activity.P33 used specific
technique (was used by):E29 Design or
Procedure
E15 Identifier
Assignment. P142 used
constituent (was used in):E41
Appellation
Quantification: many to many (0,n:0,n)
Scope note:
This property describes the use of material or immaterial things in a way
essential to the performance or the outcome of an E7 Activity.
This property typically applies to tools, instruments, moulds, raw
materials and items embedded in a product. It implies that the presence of the
object in question was a necessary condition for the action. For example, the
activity of writing this text required the use of a computer. An immaterial
thing can be used if at least one of its carriers is present. For example, the
software tools on a computer.
Another example is the use of a particular name by a particular group
of people over some span to identify a thing, such as a settlement. In this
case, the physical carriers of this name are at least the people understanding
its use.
Examples:
§
the writing of this scope note (E7) used
specific object Nicholas Crofts’ computer (E22) mode of use Typing
Tool; Storage Medium (E55)
§
the people of Iraq calling the place identified
by TGN ‘7017998’ (E7) used specific object ‘Quyunjig’ (E44) mode of use Current;
Vernacular (E55)
Properties:
P16.1 mode of use: E55
Type
P17 was motivated by (motivated)
Domain:
E7
Activity
Subproperty of: E7 Activity. P15 was
influenced by (influenced): E1 CRM
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
describes an item or items that are regarded as a reason for carrying out the E7
Activity.
For example, the discovery of a large hoard of treasure may call for
a celebration, an order from head quarters can start a military manoeuvre.
Examples:
§
the resignation of the chief executive (E7)
was motivated by the collapse of SwissAir (E68).
§
the coronation of Elizabeth II (E7) was
motivated by the death of George VI (E69)
P19 was intended use of (was made
for):
Domain:
E7
Activity
Quantification: many to many (0,n:0,n)
Scope
note: This property
relates an E7 Activity with objects created specifically for use in the
activity.
This is distinct from the intended use of an
item in some general type of activity such as the book of common prayer which
was intended for use in Church of England services (see P101 had as
general use (was use of)).
Examples:
§
Lady Diana Spencer’s wedding dress (E71) was
made for Wedding of Prince Charles and Lady Diana Spencer (E7) mode of
use To Be Worn (E55)
Properties:
P19.1 mode of use: E55
Type
P20 had specific purpose (was purpose
of)
Domain:
E7
Activity
Quantification: many to many (0,n:0,n)
Scope note: This property identifies the
relationship between a preparatory activity and the event it is intended to be
preparation for.
This includes activities, orders and other organisational actions,
taken in preparation for other activities or events.
P20 had specific purpose (was purpose of) implies that an
activity succeeded in achieving its aim. If it does not succeed, such as the
setting of a trap that did not catch anything, one may document the unrealized
intention using P21 had general purpose (was purpose of):E55 Type
and/or P33 used specific technique (was used by): E29 Design or
Procedure.
Examples:
§
Van Eyck’s pigment grinding in 1432 (E7) had
specific purpose the painting of the Ghent alter piece (E12)
Domain:
E7
Activity
Quantification: many to many (0,n:0,n)
Scope note:
This property describes an intentional relationship between an E7 Activity and
some general goal or purpose.
This
may involve activities intended as preparation for some type of activity or
event. P21had general purpose (was purpose of) differs from P20 had
specific purpose (was purpose of) in that no occurrence of an
event is implied as the purpose.
Examples:
§
Van Eyck’s pigment grinding (E7) had general
purpose painting (E55)
§
The setting of trap 2742 on May 17th
1874 (E7) had general purpose Catching Moose (E55) (Activity
type
P22 transferred title to (acquired title
through)
Domain:
E8
Acquisition
Subproperty of: E7 Activity. P14 carried out
by (performed): E39
Actor
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor that acquires the legal ownership of an object as a
result of an E8 Acquisition.
The property will typically describe an Actor
purchasing or otherwise acquiring an object from another Actor. However, title
may also be acquired, without any corresponding loss of title by another Actor,
through legal fieldwork such as hunting, shooting or fishing.
In reality the title is either transferred to or from someone, or
both.
Examples:
§
acquisition of the Amoudrouz collection by the
Geneva Ethnography Museum (E8) transferred title to Geneva Ethnography
Museum (E74)
P23 transferred title from (surrendered title
through)
Domain:
E8
Acquisition
Subproperty of: E7 Activity. P14 carried out
by (performed): E39
Actor
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor or Actors who relinquish legal ownership as the result
of an E8 Acquisition.
The property will typically be used to describe a person donating or
selling an object to a museum. In reality title is either transferred to or from
someone, or both.
Examples:
§
acquisition of the Amoudrouz collection by the
Geneva Ethnography Museum (E8) transferred title from Heirs of Amoudrouz
(E74)
P24 transferred title of (changed ownership
through)
Domain:
E8
Acquisition
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E18 Physical Thing or things involved in an E8 Acquisition.
In reality, an acquisition must refer to at least one transferred
item.
Examples:
§
acquisition of the Amoudrouz collection by the
Geneva Ethnography Museum (E8) transferred title of Amoudrouz Collection
(E78)
P25 moved (moved by)
Domain:
E9
Move
Subproperty of: E5 Event. P12 occurred in
the presence of (was present at): E77 Persistent
Item
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E19 Physical Object that is moved during a move event.
The property implies the object’s passive
participation. For example, Monet’s painting “Impression sunrise” was moved for
the first Impressionist exhibition in 1874.
In reality, a move must concern at least one
object.
Examples:
§
Monet´s “Impression sunrise” (E22) moved
by preparations for the First Impressionist Exhibition (E9)
P26 moved to (was destination of)
Domain:
E9
Move
Subproperty of: E4 Period. P7 took place at
(witnessed): E53
Place
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the destination of a E9 Move.
A move will be linked to a destination, such as the move of an
artefact from storage to display. A move may be linked to many terminal
instances of E53 Places. In this case the move describes a distribution of a set
of objects. The area of the move includes the origin, route and
destination.
Examples:
§
the movement of the Tutenkhamun Exhibition (E9)
moved to The British Museum (E53)
P27 moved from (was origin of)
Domain:
E9
Move
Subproperty of: E4 Period. P7 took place at
(witnessed): E53
Place
Quantification: many to
many, necessary (1,n:0,n)
Scope
note: This property
identifies the starting E53 Place of an E9 Move.
A move will be linked to an origin, such as the move of an artefact
from storage to display. A move may be linked to many origins. In this case the
move describes the picking up of a set of objects. The area of the move includes
the origin, route and destination.
Examples:
§
the movement of the Tutenkhamun Exhibition (E9)
moved from The Egyptian Museum in Cairo (E53)
P28 custody surrendered by (surrendered custody
through)
Domain:
E10 Transfer
of Custody
Subproperty of: E7 Activity. P14 carried out
by (performed): E39
Actor
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor or Actors who surrender custody of an instance of E18
Physical Thing in an E10 Transfer of Custody activity.
The property will typically describe an Actor surrendering custody of
an object when it is handed over to someone else’s care. On occasion, physical
custody may be surrendered involuntarily – through accident, loss or
theft.
In reality, custody is either transferred to
someone or from someone, or both.
Examples:
§
the Secure Deliveries Inc. crew (E40)
surrendered custody through The delivery of the paintings by
Secure Deliveries Inc. to the National Gallery (E10).
P29 custody received by (received custody
through)
Domain:
E10 Transfer
of Custody
Subproperty of: E7 Activity. P14 carried out
by (performed): E39
Actor
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor or Actors who receive custody of an instance of E18
Physical Thing in an E10 Transfer of Custody activity.
The property will typically describe Actors receiving custody of an
object when it is handed over from another Actor’s care. On occasion, physical
custody may be received involuntarily or illegally – through accident,
unsolicited donation, or theft.
In reality, custody is either transferred to
someone or from someone, or both.
Examples:
§
representatives of The National Gallery (E40)
received custody through. The delivery of the paintings by
Secure Deliveries Inc. to the National Gallery (E10)
P30 transferred custody of (custody transferred
through)
Domain:
E10 Transfer
of Custody
Range:
E18 Physical
Thing
Quantification: many to
many, necessary (1,n:0,n)
Scope note:
This property identifies an item or items of E18 Physical Thing concerned in an
E10 Transfer of Custody activity.
The property will
typically describe the object that is handed over by an E39 Actor to another
Actor’s custody. On occasion, physical custody may be transferred involuntarily
or illegally – through accident, unsolicited donation, or theft.
Examples:
the delivery of
the paintings by Secure Deliveries Inc. to the National Gallery (E10)
transferred custody of paintings from The Iveagh Bequest (E19)
P31 has modified (was modified by)
Domain:
E11
Modification
Subproperty of: E5 Event. P12 occurred in
the presence of (was present at): E77 Persistent
Item
Superproperty
of:
E12
Production. P108 has
produced (was produced by): E24 Physical
Man-Made Thing
E79 Part
Addition. P110 augmented
(was augmented by): E24 Physical
Man-Made Thing
E80 Part
Removal. P112
diminished (was diminished by): E24 Physical
Man-Made Thing
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E24 Physical Man-Made Thing modified in an E11
Modification.
If a modification is applied to a non-man-made
object, it is regarded as an E22 Man-Made Object from that time onwards.
Examples:
§
rebuilding of the Reichstag (E11) has
modified the Reichstag in Berlin (E24)
P32 used general technique (was technique
of)
Domain:
E7
Activity
Superproperty
of:
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the technique that was employed in an act of modification.
These
techniques should be drawn from an external E55 Type hierarchy of consistent
terminology of general techniques such as embroidery, oil-painting, etc.
Specific techniques may be further described as instances of E29 Design or
Procedure.
Examples:
§
ornamentation of silver cup 113 (E11) used
general technique gold-plating (E55) (Design or Procedure Type)
P33 used specific technique (was
used by)
Domain:
E7
Activity
Subproperty of: E7 Activity. P16 used specific
object (was used for): E70
Thing
Quantification: many to
many (0,n:0,n)
Scope
note: This property
identifies a specific E29 Design or Procedure used in an E11
Modification.
Modification may be carried out in order to ensure the preservation
of an object and not just as part of the creative process.
The property differs from P32 used general technique (was
technique of) in that the E29 Design or Procedure referred to is specific
and documented rather than simply being a term in the E55 Type hierarchy.
Typical examples would include intervention plans for conservation.
Examples:
§
Ornamentation of silver cup 232 (E11)
used specific technique ‘Instructions for golden chase work by A N Other’
(E29)
§
Rebuilding of Reichstag (E11) used specific
technique Architectural plans by Foster and Partners (E29)
P34 concerned
(was assessed by)
Domain:
E14 Condition
Assessment
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E18 Physical Thing that was assessed during an E14 Condition
Assessment activity.
Conditions may be assessed either by direct observation or using
recorded evidence. In the latter case the E18 Physical Thing does not need to be
present or extant.
Examples:
§
1997 condition assessment of the silver
collection (E14) concerned silver cup 232 (E22)
P35 has
identified (was identified by
Domain:
E14 Condition
Assessment
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E3 Condition State that was observed in an E14 Condition
Assessment activity.
Examples:
§
1997 condition assessment of silver cup 232 (E14)
has identified oxidation traces were present in 1997 (E3) has
type oxidation traces (E55)
P37 assigned (was assigned by)
Domain:
E15 Identifier Assignment
Quantification:
many to many (0,n:0,n)
Scope
note: This property
records the identifier that was assigned to an item in an Identifier Assignment
activity.
An Identifier might be created prior to an assignment.
Examples:
§
01 June 1997 Identifier
Assignment of the silver cup donated by Martin Doerr (E15) assigned 232
(E42)
P38 deassigned
(was deassigned by)
Domain:
E15 Identifier Assignment
Quantification:
many to many (0,n:0,n)
Scope
note: This property
records the identifier that was deassigned from an instance of E1 CRM
Entity.
Deassignment of an identifier may be necessary when an item is taken
out of an inventory, a new numbering system is introduced or items are merged or
split up.
The same identifier may be deassigned on more than one
occasion.
Examples:
§
31 July 2001 Identifier
Assignment of the silver cup OXCMS:2001.1.32 (E15) deassigned 232
(E42)
P39 measured (was measured by):
Domain:
E16 Measurement
Quantification: many to one, necessary
(1,1:0,n)
Scope
note: This property
associates an instance of E16 Measurement with the instance of E1 CRM Entity to
which it applied. An instance of E1 CRM Entity may be measured more than once.
Material and immaterial things and processes may be measured, e.g. the number of
words in a text, or the duration of an event.
Examples:
§
31 August 1997
measurement of height of silver cup 232 (E16) measured silver cup 232
(E22)
P40 observed dimension (was observed
in)
Domain:
E16 Measurement
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
records the dimension that was observed in an E16 Measurement Event.
E54 Dimension can be any quantifiable aspect of E70 Thing. Weight,
image colour depth and monetary value are dimensions in this sense. One
measurement activity may determine more than one dimension of one
object.
Dimensions may be determined either by direct observation or using
recorded evidence. In the latter case the measured Thing does not need to be
present or extant.
Even though knowledge of the value of a dimension requires
measurement, the dimension may be an object of discourse prior to, or even
without, any measurement being made.
Examples:
§
31 August 1997
measurement of height of silver cup 232 (E16) observed dimension silver
cup 232 height (E54) has unit mm (E58), has value 224
(E60)
P41 classified
(was classified by)
Domain:
E17 Type Assignment
Quantification:
many to one, necessary (1,1:0,n)
Scope
note: This property
records the item to which a type was assigned in an E17 Type Assignment
activity.
Any instance of a CRM entity may be assigned a type through type
assignment. Type assignment events allow a more detailed path from E1 CRM Entity
through P41 classified (was classified), E17 Type Assignment, P42
assigned (was assigned by) to E55 Type for assigning types to objects
compared to the shortcut offered by P2 has type (is type
of).
Examples:
§
31 August 1997
classification of silver cup 232 (E17) classified silver cup 232
(E22)
P42 assigned (was
assigned by)
Domain:
E17 Type Assignment
Quantification:
many to many, necessary (1,n:0,n)
Scope
note: This property
records the type that was assigned to an entity by an E17 Type Assignment
activity.
Type assignment events allow a more detailed path from E1 CRM Entity
through P41 classified (was classified by), E17 Type Assignment, P42
assigned (was assigned by) to E55 Type for assigning types to objects
compared to the shortcut offered by P2 has type (is type
of).
For example, a fragment of an antique vessel could be assigned the
type “attic red figured belly handled amphora” by expert A. The same fragment
could be assigned the type “shoulder handled amphora” by expert B.
A Type may be intellectually constructed independent from assigning
an instance of it.
Examples:
§
31 August 1997
classification of silver cup 232 (E17) assigned goblet (E55)
P43 has dimension (is dimension of)
Domain:
E70
Thing
Quantification: one to many, dependent
(0,n:1.1)
Scope
note: This property
records a E54 Dimension of some E70 Thing.
It is a shortcut of the more fully developed path from E70 Thing
through P39 measured (was measured by), E16 Measurement P40 observed
dimension (was observed in) to E54 Dimension. It offers no information about
how and when an E54 Dimension was established, nor by whom.
An instance of E54
Dimension is specific to an instance of E70 Thing.
Examples:
§
silver cup 232 (E22) has dimension height
of silver cup 232 (E54) has unit mm (E58), has value 224
(E60)
P44 has condition (condition of)
Domain:
E18 Physical
Thing
Quantification:
one to many, dependent (0,n:1,1)
Scope
note: This property
records an E3 Condition State for some E18 Physical Thing.
It is a shortcut of the more fully developed
path from E18 Physical Thing through P34 concerned (was assessed by), E14
Condition Assessment P35 has identified (identified by) to E3 Condition
State. It offers no information about how and when the E3 Condition State was
established, nor by whom.
An instance of Condition State is specific to an instance of Physical
Thing.
Examples:
§
silver cup 232 (E22) has condition
oxidation traces were present in 1997 (E3) has type oxidation traces
(E55)
P45 consists of (is incorporated in)
Domain:
E18 Physical
Thing
Quantification:
many to many, necessary (1,n:0,n)
Scope
note: This property
identifies the instances of E57 Materials of which an instance of E18 Physical
Thing is composed.
All
physical things consist of physical materials. P45 consists of (is
incorporated in) allows the different Materials to be recorded. P45
consists of (is incorporated in) refers here to observed Material as opposed
to the consumed raw material.
A Material, such as a theoretical alloy, may not have any physical
instances.
Examples:
§
silver cup 232 (E22) consists of silver
(E57)
P46 is composed of (forms part of)
Domain:
E18 Physical
Thing
Superproperty of:E19 Physical
Object. P56
bears feature (is found on): E26 Physical
Feature
Quantification: many to
many (0,n:0,n)
Scope
note: This property allows
instances of E18 Physical Thing to be analysed into component
elements.
Component elements, since they are themselves instances of E18
Physical Thing, may be further analysed into sub-components, thereby creating a
hierarchy of part decomposition. An instance of E18 Physical Thing may be shared
between multiple wholes, for example two buildings may share a common
wall.
This property is intended to describe specific components that are
individually documented, rather than general aspects. Overall descriptions
of the structure of an instance of E18 Physical Thing are captured by the
P3 has note property.
The instances of E57 Materials of which an item of E18 Physical Thing
is composed should be documented using P45 consists of (is
incorporated in).
Examples:
§
the Royal carriage (E22) forms part of the
Royal train (E22)
§
the “Hog’s Back” (E24) forms part of the
“Fosseway” (E24)
P48 has preferred identifier (is
preferred identifier of)
Domain:
E1 CRM
Entity
Subproperty of: E1 CRM Entity.P1 is identified
by (identifies): E41
Appellation
Quantification: many to one (0,1:0,n)
Scope
note: This property
records the preferred E42 Identifier that was used to identify an instance of E1
CRM Entity at the time this property was recorded.
More than one preferred identifier may have
been assigned to an item over time.
Use of this property requires an external mechanism for assigning
temporal validity to the respective CRM instance.
P48 has preferred identifier (is preferred
identifier of), is a shortcut for the path from E1
CRM Entity through P140 assigned attribute to (was attributed by), E15
Identifier Assignment, P37 assigned (was assigned by) to E42 Identifier.
The fact that an identifier is a preferred one for an organisation can be better
expressed in a context independent form by assigning a suitable E55 Type to the
respective instance of E15 Identifier Assignment using the P2 has type
property.
Examples:
§
the pair of Lederhosen donated by Dr Martin Doerr
(E22) has preferred identifier OXCMS:2001.1.32 (E42)
P49 has former or current keeper (is former or
current keeper of)
Domain:
E18 Physical
Thing
Superproperty
of:
E18 Physical
Thing. P50 has
current keeper (is current keeper of): E39
Actor
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor or Actors who have or have had custody of an instance
of E18 Physical Thing at some time.
The distinction with P50 has current keeper
(is current keeper of) is that P49 has former or current keeper (is
former or current keeper of) leaves open the question as to whether the
specified keepers are current.
P49 has former or current keeper (is former
or current keeper of) is a shortcut for the more
detailed path from E18 Physical Thing through P30 transferred custody of
(custody transferred through), E10 Transfer of Custody, P28 custody
surrendered by (surrendered custody through) or P29 custody received by
(received custody through) to E39 Actor.
Examples:
§
paintings from The Iveagh Bequest (E18)
has former or current keeper Secure Deliveries Inc.
(E40)
P50 has current keeper (is current keeper
of)
Domain:
E18 Physical
Thing
Subproperty of: E18 Physical
Thing. P49 has
former or current keeper (is former or current keeper of): E39 Actor
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor or Actors who had custody of an instance of E18
Physical Thing at the time this property was recorded.
P50 has current keeper (is current keeper of) is a shortcut for the more detailed path from E18 Physical Thing
through P30 transferred custody of (custody transferred through), E10
Transfer of Custody, P29 custody received by (received custody
through) to E39 Actor.
Examples:
§
paintings from The Iveagh Bequest (E18) has
current keeper The National Gallery (E40)
P51 has former or current owner (is former or
current owner of)
Domain:
E18 Physical
Thing
Superproperty
of:
E18 Physical
Thing. P52 has
current owner (is current owner of): E39
Actor
Quantification: many to
many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor that is or has been the legal owner (i.e. title holder)
of an instance of E18 Physical Thing at some time.
The distinction with P52 has current owner (is current owner
of) is that P51 has former or current owner (is former or current owner
of) does not indicate whether the specified owners are current. P51 has
former or current owner (is former or current owner of) is a shortcut for
the more detailed path from E18 Physical Thing through P24 transferred title
of (changed ownership through), E8 Acquisition, P23 transferred
title from (surrendered title through), or P22 transferred title
to (acquired title through) to E39 Actor.
Examples:
§
paintings from the Iveagh Bequest (E18) has
former or current owner Lord Iveagh (E21)
P52 has current owner (is current owner
of)
Domain:
E18 Physical
Thing
Subproperty of: E18 Physical
Thing. P51 has
former or current owner (is former or current keeper of): E39
Actor
E72 Legal
Object.P105
right held by (has right on):E39
Actor
Quantification: many to many (0,n:0,n)
Scope note:
This property identifies the E21 Person, E74 Group or E40 Legal Body that was
the owner of an instance of E18 Physical Thing at the time this property was
recorded.
P52 has current owner (is current owner
of) is a shortcut for the more detailed path from
E18 Physical Thing through P24 transferred title of (changed ownership
through), E8 Acquisition, P22 transferred title to (acquired title
through) to E39 Actor, if and only if this acquisition event is the most
recent.
Examples:
§
paintings from the Iveagh Bequest (E18) has
current owner «English Heritage» (E40)
P53 has former or current
location (is former or current location of)
Domain:
E18 Physical
Thing
Superproperty
of:
E19 Physical
Object. P55 has current
location (currently holds): E53
Place
Quantification: many to many, necessary
(1,n:0,n)
Scope note:
This property allows an instance of E53 Place to be associated as the former or
current location of an instance of E18 Physical Thing.
In the case of E19 Physical Objects, the
property does not allow any indication of the Time-Span during which the
Physical Object was located at this Place, nor if this is the current
location.
In the case of immobile objects, the Place
would normally correspond to the Place of creation.
P53 has former or current location (is
former or current location of) is a shortcut. A more detailed representation
can make use of the fully developed (i.e. indirect) path from E19 Physical
Object through P25 moved (moved by), E9 Move, P26 moved to (was
destination of) or P27 moved from (was origin of) to E53
Place.
Examples:
§
silver cup 232 (E22) has former or current
location Display Case 4, Room 23, Museum of Oxford (E53)
P54 has current permanent location (is current
permanent location of)
Domain:
E19 Physical
Object
Quantification: many to one (0,1:0,n)
Scope
note: This property
records the foreseen permanent location of an instance of E19 Physical Object at
the time this property was recorded.
P54 has current permanent location (is current permanent location
of) is similar to P55 has current location
(currently holds). However, it indicates the E53 Place currently reserved
for an object, such as the permanent storage location or a permanent exhibit
location. The object may be temporarily removed from the permanent location, for
example when used in temporary exhibitions or loaned to another institution. The
object may never actually be located at its permanent location.
Examples:
§
silver cup 232 (E22) has current permanent
location Shelf 3.1, Store 2, Museum of Oxford (E53)
P55 has current location (currently
holds)
Domain:
E19 Physical
Object
Subproperty of: E18 Physical
Thing. P53 has
former or current location (is former or current location of): E53
Place
Quantification: many to
one (0,1:0,n)
Scope
note: This property
records the location of an E19 Physical
Object at the time the property was recorded.
This property is a specialisation of P53 has former or
current location (is former or current location of). It indicates that the
E53 Place associated with the E19 Physical Object is the current location of the
object. The property does not allow any indication of how long the Object has
been at the current location.
P55 has current location (currently holds) is a shortcut. A more detailed representation can make use of the
fully developed (i.e. indirect) path from E19 Physical Object through P25
moved (moved by), E9 Move P26 moved to (was destination of) to E53
Place if and only if this Move is the most recent.
Examples:
§
silver cup 232 (E22) has current location
Display cabinet 23, Room 4, British Museum (E53)
P56 bears feature (is found on):
Domain:
E19 Physical
Object
Subproperty of: E18 Physical
Thing. P46 is composed
of (forms part of): E18 Physical
Thing
Quantification: one to
many, dependent (0,n:1,1)
Scope
note: This property
describes a E26 Physical Feature found on a E19 Physical Object It does not
specify the location of the feature on the object.
P56 bears feature (is found
on) is a shortcut. A more detailed representation
can make use of the fully developed (i.e. indirect) path from E19 Physical
Object through P59 has section (is located on or within), E53 Place,
P53 has former or current location (is former or current location of) to
E26 Physical Feature.
A Physical Feature can only exist on one object. One object may bear
more than one Physical Feature. An E27 Site should be considered as an E26
Physical Feature on the surface of the Earth.
Examples:
§
silver cup 232 (E22) bears feature 32 mm
scratch on silver cup 232 (E26)
P57 has number of parts
Domain:
E19 Physical
Object
Quantification: many to
one (0,1:0,n)
Scope
note: This property
documents the E60 Number of parts of which an instance of E19 Physical Object is
composed.
This may be used as a method of checking
inventory counts with regard to aggregate or collective objects. What
constitutes a part or component depends on the context and requirements of the
documentation. Normally, the parts documented in this way would not be
considered as worthy of individual attention.
For a more complete description, objects may be decomposed into their
components and constituents using P46 is composed of (forms parts of)
and P45 consists of (is incorporated in). This allows each element to
be described individually.
Examples:
§
chess set 233 (E22) has number of
parts 33 (E60)
P58 has section
definition (defines section)
Domain:
E18 Physical
Thing
Quantification:
one to many, dependent, (0,n:1,1)
Scope note:
This property links an area (section) named by a E46
Section Definition to the instance of E18 Physical Thing upon which it is
found.
The CRM handles sections
as locations (instances of E53 Place) within or on E18 Physical Thing that are
identified by E46 Section Definitions. Sections need not be discrete and
separable components or parts of an object.
This is part of a more developed path from E18
Physical Thing through P58, E46 Section Definition, P87 is identified by
(identifies) that allows a more precise definition of a location found on an
object than the shortcut P59 has section (is
located on or within).
A particular instance of a Section Definition
only applies to one instance of Physical Thing.
Examples:
§
HMS Victory (E22) has
section definition poop deck of HMS Victory (E46)
P59 has section (is located on or
within)
Domain:
E18 Physical
Thing
Quantification: one to many (0,n:0,1)
Scope
note: This property links an area to the instance of E18 Physical
Thing upon which it is found.
It is typically used when
a named E46 Section Definition is not appropriate.
E18 Physical Thing may be
subdivided into arbitrary regions.
P59 has section (is located on or within)
is a shortcut. If the E53 Place is identified by a Section Definition, a more
detailed representation can make use of the fully developed (i.e. indirect) path
from E18 Physical Thing through P58 has section definition (defines
section), E46 Section Definition, P87 is
identified by (identifies) to E53 Place. A
Place can only be located on or within one Physical Object.
Examples:
§
HMS Victory (E22) has
section HMS Victory section B347.6 (E53)
P62 depicts (is depicted by)
Domain:
E24 Physical
Man-Made Thing
Range:
E1 CRM
Entity
Quantification: many to
many (0,n:0,n)
Scope
note: This property
identifies something that is depicted by an instance of E24 Physical Man-Made
Thing.
This property is a
shortcut of the more fully developed path from E24 Physical Man-Made Thing
through P65 shows visual item (is shown by), E36 Visual Item, P138 represents
(has representation) to E1CRM Entity. P62.1 mode of depiction allows the nature
of the depiction to be refined.
Examples:
“Impression
Sunrise” by Monet (E84) depicts sun rising over Le Havre (E5) mode of
depiction Impressionistic (E55)
a 20 pence coin
(E24) depicts Queen Elizabeth II (E21) mode of depiction Profile
(E55)
Properties:
P62.1 mode of depiction: E55
Type
P65 shows visual item (is
shown by)
Domain:
E24 Physical
Man-Made Thing
Quantification: many to
many (0,n:0,n)
Scope
note: This property
documents an E36 Visual Item shown by an instance of E24 Physical Man-Made
Thing.
This property is similar to P62 depicts (is depicted by) in
that it associates an item of E24 Physical Man-Made Thing with a visual
representation. However, P65 shows visual item (is shown by) differs from
the P62 depicts (is depicted by) property in that it makes no claims
about what the E36 Visual Item is deemed to represent. E36 Visual Item
identifies a recognisable image or visual symbol, regardless of what this image
may or may not represent.
For example, all recent British coins bear a portrait of Queen
Elizabeth II, a fact that is correctly documented using P62 depicts (is
depicted by). Different portraits have been used at different periods,
however. P65 shows visual item (is shown by) can be used to refer to a
particular portrait.
P65 shows visual item (is shown
by) may also be used for Visual Items such as signs,
marks and symbols, for example the 'Maltese Cross' or the 'copyright symbol’
that have no particular representational content.
This property is part of the fully developed path from E24 Physical
Man-Made Thing through P65 shows visual item (is shown by), E36 Visual
Item, P138 represents (has representation) to E1 CRM Entity which is
shortcut by, P62 depicts (is depicted by).
Examples:
§
“Impression Sunrise” by Monet (E84) shows
visual item Impression_Sunrise.jpg (E38)
P67 refers to (is referred to by)
Domain:
E89
Propositional Object
Range:
E1 CRM Entity
Superproperty
of:
E31 Document.
P70 documents
(is documented in): E1 CRM
Entity
E32 Authority
Document. P71
lists (is listed in): E55
Type
E73
Information Object. P129 is about
(is subject of): E1 CRM
Entity
E36 Visual
Item. P138
represents (has representation): E1 CRM
Entity
Quantification: many to
many (0,n:0,n)
Scope note:
This property documents that an E89 Propositional Object makes a statement about
an instance of E1 CRM Entity. P67 refers to (is referred to by) has the
P67.1 has type link to an instance of E55 Type. This is intended to allow
a more detailed description of the type of reference. This differs from P129
is about (is subject of), which describes the primary subject or subjects of
the E89 Propositional Object.
Examples:
the eBay auction
listing of 4 July 2002 (E73) refers to silver cup 232 (E22) has type
item for sale (E55)
Properties:
P67.1 has type: E55
Type
P68 foresees use of (use
foreseen by):
Quantification: many to
many (0,n:0,n)
Scope
note: This property
identifies an E57 Material foreseeen to be used by an E29 Design or Procedure.
E29 Designs and procedures commonly foresee the use of particular E57
Materials. The fabrication of adobe bricks, for example, requires straw, clay
and water. This property enables this to be documented.
This property is not intended for the documentation of E57 Materials
that were used on a particular occasion when an instance of E29 Design or
Procedure was executed.
Examples:
§
procedure for soda glass manufacture (E29)
foresees use of soda (E57)
P69 is associated
with
Domain:
E29 Design or
Procedure
Quantification: many to
many (0,n:0,n)
Scope
note: This symmetric
property describes the association of an E29 Design or Procedure with other
Designs or Procedures.
Any instance of E29 Design or Procedure may be
associated with other designs or procedures. The nature of the association may
be whole-part, sequence, prerequisite etc. The property is assumed to be
entirely reciprocal.
Examples:
§
procedure for glass blowing (E29) is
associated with procedure for glass heating (E29)
Properties:
P69.1 has type: E55 Type
P70 documents (is
documented in)
Domain:
E31 Document
Subproperty of: E89
Propositional Object. P67 refers to (is
referred to by): E1 CRM
Entity
Quantification: many to many, necessary (1,n:0,n)
Scope
note: This property
describes the CRM Entities documented by instances of E31 Document.
Documents may describe any conceivable entity,
hence the link to the highest-level entity in the CRM hierarchy. This property
is intended for cases where a reference is regarded as being of a documentary
character, in the scholarly or scientific sense.
Examples:
§
the British Museum catalogue (E31)
documents the British Museum’s Collection (E78)
P71 lists (is listed in)
Domain:
E32 Authority
Document
Subproperty of: E89
Propositional Object. P67 refers to (is
referred to by): E1 CRM
Entity
Quantification:
many to many (0,n:0,n)
Scope
note: This property
documents a source E32 Authority Document for an instance of an E55
Type.
Examples:
§
the Art & Architecture Thesaurus (E32)
lists alcazars (E55)
P72 has language (is language of)
Domain:
E33 Linguistic
Object
Quantification: many to
many, necessary (0,n:0,n)
Scope
note: This property
describes the E56 Language of an E33 Linguistic Object.
Linguistic Objects are composed in one or more human Languages. This
property allows these languages to be documented.
Examples:
§
the American Declaration of Independence (E33)
has language 18th Century English (E56)
P73 has translation (is translation
of)
Domain:
E33 Linguistic
Object
Subproperty of: E70 Thing. P130 shows
features of (features are also found on): E70
Thing
Quantification: one to
many (0,n:0,1)
Scope
note: This property
describes the source and target of instances of E33Linguistic Object involved in
a translation.
When a Linguistic Object is translated into a new language it becomes
a new Linguistic Object, despite being conceptually similar to the source
object.
Examples:
§
“Les Baigneurs” (E33) has translation “The
Bathers” (E33)
P74 has current or former residence (is current or
former residence of)
Domain:
E39
Actor
Quantification:
many to many (0,n:0,n)
Scope
note: This property
describes the current or former E53 Place of residence of an E39 Actor.
The residence may be either the Place where the Actor resides, or a
legally registered address of any kind.
Examples:
§
Queen Elizabeth II (E39) has current or former
residence Buckingham Palace (E53)
P75 possesses (is possessed by)
Domain:
E39
Actor
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies former or current instances of E30 Rights held by an E39
Actor.
Examples:
§
Michael Jackson (E21) possesses
Intellectual property rights on the Beatles’ back catalogue (E30)
P76 has contact point (provides access
to)
Domain:
E39
Actor
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies an E51 Contact Point of any type that provides access to an E39 Actor
by any communication method, such as e-mail or fax.
Examples:
§
RLG (E40) has contact point bl.ric@rlg.org
(E51)
P78 is identified by
(identifies)
Domain:
E52
Time-Span
Subproperty of: E1 CRM Entity. P1 is identified
by (identifies): E41
Appellation
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies an E52 Time-Span using an E49Time Appellation.
Examples:
§
the time span 1926 to 1988 (E52) is identified
by Showa (Japanese time appellation) (E49)
P79 beginning is qualified by
Domain:
E52
Time-Span
Subproperty of: E1 CRM Entity. P3 has note: E62
String
Quantification:
many to one (0,1:0,n)
Scope
note: This property qualifies the beginning of an E52 Time-Span
in some way.
The nature of the
qualification may be certainty, precision, source etc.
Examples:
§
the time-span of the
Holocene (E52) beginning is qualified by approximately (E62)
P80 end is qualified by
Domain:
E52
Time-Span
Subproperty of: E1 CRM Entity. P3 has note: E62
String
Quantification:
many to one (0,1:0,n)
Scope
note: This property qualifies the end of an E52 Time-Span in some
way.
The nature of the
qualification may be certainty, precision, source etc.
Examples:
§
the time-span of the
Holocene (E52) end is qualified by approximately (E62)
P81 ongoing
throughout
Domain:
E52
Time-Span
Quantification:
many to one, necessary (1,1:0,n)
Scope
note: This property describes the minimum period of time covered
by an E52 Time-Span.
Since Time-Spans may not have precisely known
temporal extents, the CRM supports statements about the minimum and maximum
temporal extents of Time-Spans. This property allows a Time-Span’s minimum
temporal extent (i.e. it’s inner boundary) to be assigned an E61 Time Primitive
value. Time Primitives are treated by the CRM as application or system specific
date intervals, and are not further analysed.
Examples:
§
the time-span of the
development of the CIDOC CRM (E52) ongoing throughout 1996-2002
(E61)
P82 at some time within
Domain:
E52
Time-Span
Quantification:
many to one, necessary (1,1:0,n)
Scope
note: This property
describes the maximum period of time within which an E52 Time-Span
falls.
Since Time-Spans may not have precisely known
temporal extents, the CRM supports statements about the minimum and maximum
temporal extents of Time-Spans. This property allows a Time-Span’s maximum
temporal extent (i.e. it’s outer boundary) to be assigned an E61 Time Primitive
value. Time Primitives are treated by the CRM as application or system specific
date intervals, and are not further analysed.
Examples:
§
the time-span of the
development of the CIDOC CRM (E52) at some time within 1992-infinity
(E61)
P83 had at least duration (was minimum duration
of)
Domain:
E52
Time-Span
Quantification:
one to one (1,1:1,1)
Scope
note: This property describes the minimum length of time covered
by an E52 Time-Span.
It allows an E52 Time-Span to be associated with
an E54 Dimension representing it’s minimum duration (i.e. it’s inner boundary)
independent from the actual beginning and end.
Examples:
§
the time span of the Battle
of Issos 333 B.C.E. (E52) had at least duration Battle of Issos minimum
duration (E54) has unit day (E58) has value 1
(E60)
P84 had at most duration (was maximum duration
of)
Domain:
E52
Time-Span
Quantification: one to
one (1,1:1,1)
Scope
note: This property describes the maximum length of time covered
by an E52 Time-Span.
It allows an E52 Time-Span
to be associated with an E54 Dimension representing it’s maximum duration (i.e.
it’s outer boundary) independent from the actual beginning and end.
Examples:
§
the time span of the Battle of Issos 333 B.C.E.
(E52) had at most duration Battle of Issos maximum duration (E54) has
unit day (E58) has value 2 (E60)
P86 falls within (contains)
Domain:
E52
Time-Span
Quantification:
many to many (0,n:0,n)
Scope
note: This property describes the inclusion relationship between
two instances of E52 Time-Span.
This property supports the notion that a
Time-Span’s temporal extent falls within the temporal extent of another
Time-Span. It addresses temporal containment only, and no contextual link
between the two instances of Time-Span is implied.
Examples:
§
the time-span of the Apollo
11 moon mission (E52) falls within the time-span of the reign of Queen
Elizabeth II (E52)
P87 is identified by (identifies)
Domain:
E53
Place
Subproperty of: E1 CRM Entity. P1 is identified
by (identifies): E41
Appellation
Quantification:
many to many (0,n:0,n)
Scope
note: This property identifies an E53 Place using an E44 Place
Appellation.
Examples of Place Appellations used to identify
Places include instances of E48 Place Name, addresses, E47 Spatial Coordinates
etc.
Examples:
§
the location of the Duke of
Wellington’s House (E53) is identified by No 1 London (E45)
P88 consists of (forms part of)
Domain:
E53
Place
Quantification:
many to many (0,n:0,n)
Scope
note: This property identifies an E53 Place that forms part of
another Place.
It supports the notion that a Place can be
subdivided into one or more constituent parts. It implies both spatial and
contextual containment relationships between the two Places.
Examples:
§
the area covered by the
London Borough of Islington in 1976 (E53) forms part of the area covered
by Greater London in 1976 (E53)
P89 falls within (contains)
Domain:
E53 Place
Quantification:
many to many (0,n:0,n)
Scope
note: This property identifies the instances of E53 Places that
fall within the area covered by another Place.
It addresses spatial containment only, and no
‘whole-part’ relationship between the two places is implied.
Examples:
§
the area covered by the World Heritage Site of
Stonehenge (E53) falls within the area of Salisbury Plain
(E53)
P90 has value
Domain:
E54
Dimension
Quantification: many to
one, necessary (1,1:0,n)
Scope
note: This property allows
an E54 Dimension to be approximated by an E60 Number primitive.
Examples:
§
height of silver cup 232 (E54) has value
226 (E60)
P91 has unit (is unit of)
Domain:
E54
Dimension
Quantification:
many to one, necessary (1,1:0,n)
Scope
note: This property
shows the type of unit an E54 Dimension was expressed in.
Examples:
§
height of silver cup 232 (E54) has unit
mm (E58)
P92 brought into
existence (was brought into existence by)
Domain:
E63 Beginning
of Existence
Subproperty of: E5 Event. P12 occurred in
the presence of (was present at): E77 Persistent
Item
Superproperty
of:
E65 Creation.
P94 has
created (was created by): E28 Conceptual
Object
E66 Formation.
P95 has formed
(was formed by): E74
Group
E67 Birth. P98 brought into
life (was born): E21
Person
E12
Production. P108 has
produced (was produced by): E24 Physical
Man-Made Thing
E81
Transformation. P123 resulted in
(resulted from): E77 Persistent
Item
Quantification: one to
many, necessary, dependent (1,n:1,1)
Scope
note: This property allows
an E63 Beginning of Existence event to be linked to the E77 Persistent Item
brought into existence by it.
It allows a “start” to be attached to any Persistent Item being
documented i.e. E70 Thing, E72 Legal Object, E39 Actor, E41 Appellation, E51
Contact Point and E55 Type.
Examples:
§
the birth of Mozart (E67) brought into
existence Mozart (E21)
P93 took out of
existence (was taken out of existence by)
Domain:
E64 End of Existence
Subproperty of: E5 Event. P12 occurred in the presence of (was
present at): E77 Persistent Item
Superproperty
of:
E6 Destruction. P13 destroyed (was destroyed by):
E18 Physical Thing
E68 Dissolution. P99 dissolved (was dissolved by):
E74 Group
E69 Death. P100 was death of (died in): E21 Person
E81 Transformation. P124 transformed (was transformed by):
E77 Persistent Item
Quantification: one to
many, necessary (1,n:0,1)
Scope
note: This property
allows an E64 End of Existence event to be linked to the E77 Persistent Item
taken out of existence by it.
In the case of immaterial things, the E64 End
of Existence is considered to take place with the destruction of the last
physical carrier.
This allows an “end” to be attached to any Persistent Item being
documented i.e. E70 Thing, E72 Legal Object, E39 Actor, E41 Appellation, E51
Contact Point and E55 Type. For many Persistent Items we know the maximum
life-span and can infer, that they must have ended to exist. We assume in that
case an End of Existence, which may be as unnoticeable as forgetting the secret
knowledge by the last representative of some indigenous nation.
Examples:
§
the death of Mozart (E69) took out of
existence Mozart (E21)
P94 has created (was created by)
Domain:
E65
Creation
Subproperty of: E63 Beginning of
Existence. P92
brought into existence (was brought into existence by): E77 Persistent
Item
Superproperty of: E83 Type
Creation. P135 created
type (was created by): E55 Type
Quantification: one to many, necessary, dependent
(1,n:1,1)
Scope
note: This property allows
a conceptual E65 Creation to be linked to the E28 Conceptual Object created by
it.
It represents the act of conceiving the intellectual content of the
E28 Conceptual Object. It does not represent the act of creating the first
physical carrier of the E28 Conceptual Object. As an example, this is the
composition of a poem, not its commitment to paper.
Examples:
§
the composition of “The Four Friends” by A. A.
Milne (E65) has created “The Four Friends” by A. A. Milne
(E28)
P95 has formed (was formed by)
Domain:
E66
Formation
Subproperty of: E63 Beginning of
Existence. P92
brought into existence (was brought into existence by): E77 Persistent
Item
Quantification: one to many, necessary, dependent
(1,n:1,1)
Scope
note: This property links
the founding or E66 Formation for an E74 Group with the Group itself.
Examples:
§
the formation of the CIDOC CRM SIG at the August
2000 CIDOC Board meeting (E66) has formed the CIDOC CRM Special Interest
Group (E74)
P96 by mother (gave birth)
Domain:
E67
Birth
Subproperty of: E5 Event. P11 had
participant (participated in): E39
Actor
Quantification: many to
one, necessary (1,1:0,1)
Scope
note: This property
links an E67 Birth event to an E21 Person as a participant in the role of
birth-giving mother.
Note that biological fathers are not necessarily participants in the
Birth (see P97 from father (was father for)). The Person being
born is linked to the Birth with the property P98 brought into life
(was born). This is not intended for use with general natural history
material, only people. There is no explicit method for modelling conception and
gestation except by using extensions. This is a sub-property of P11
had participant (participated in).
Examples:
§
the birth of Queen Elizabeth II (E67) by
mother Queen Mother (E21)
P97 from father (was father for)
Domain:
E67
Birth
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
links an E67 Birth event to an E21 Person in the role of biological
father.
Note that biological fathers are not seen as necessary participants
in the Birth, whereas birth-giving mothers are (see P96 by mother
(gave birth)). The Person being born is linked to the Birth with the
property P98 brought into life (was born).
This is not intended for use with general
natural history material, only people. There is no explicit method for modelling
conception and gestation except by using extensions.
A Birth event is normally (but not always) associated with one
biological father.
Examples:
§
King George VI (E21) was father for the
birth of Queen Elizabeth II (E67)
P98 brought into life (was born)
Domain:
E67
Birth
Subproperty of: E63 Beginning of
Existence. P92
brought into existence (was brought into existence by): E77 Persistent
Item
Quantification: one to many, dependent
(0,n:1,1)
Scope
note: This property
links an E67Birth event to an E21 Person in the role of offspring.
Twins, triplets etc. are brought into life by the same Birth event.
This is not intended for use with general Natural History material, only people.
There is no explicit method for modelling conception and gestation except by
using extensions.
Examples:
§
the Birth of Queen Elizabeth II (E67) brought
into life Queen Elizabeth II (E21)
P99 dissolved (was dissolved by)
Domain:
E68
Dissolution
Subproperty of: E5 Event. P11 had
participant (participated in): E39
Actor
E64 End of Existence. P93 took out of existence (was taken out
of existence by): E77 Persistent Item
Quantification: one to many, necessary
(1,n:0,n)
Scope
note: This property
links the disbanding or E68 Dissolution of an E74 Group to the Group
itself.
Examples:
§
the end of The Hole in the Wall Gang (E68)
dissolved The Hole in the Wall Gang (E74)
P100 was death of (died in)
Domain:
E69
Death
Subproperty of: E64 End of
Existence. P93
took out of existence (was taken out of existence by): E77 Persistent
Item
Quantification: one to many, necessary
(1,n:0,n)
Scope
note: This property
links an E69 Death event to the E21 Person that died.
A Death event may involve multiple people, for
example in the case of a battle or disaster.
This is not intended for use with general Natural History material,
only people.
Examples:
§
Mozart’s death (E69) was death of Mozart
(E21)
P101 had as general use (was use of)
Domain:
E70
Thing
Quantification: many to many (0,n:0,n)
Scope
note: This property
links an instance of E70 Thing to an E55 Type of usage.
It allows the generic link between things, both physical and
immaterial, to methods and techniques of use. Thus it can be asserted that a
baseball bat had a general use for sport and a specific use for threatening
people during the Great Train Robbery.
Examples:
§
Tony Gill’s Ford Mustang (E22) had as general
use transportation (E55)
P102 has title (is title of)
Domain:
E71 Man-Made
Thing
Quantification:
many to many (0,n:0,n)
Scope
note: This property
describes the E35 Title applied to an instance of E71 Man-Made Thing. The E55
Type of Title is assigned in a sub property.
The P102.1 has type property of
the P102 has title (is title of) property enables the relationship
between the Title and the thing to be further clarified, for example, if the
Title was a given Title, a supplied Title etc.
It allows any man-made material or immaterial thing to be given a
Title. It is possible to imagine a Title being created without a specific object
in mind.
Examples:
§
the first book of the Old Testament (E33) has
title “Genesis” (E35)
has type
translated (E55)
Properties:
P102.1 has type: E55
Type
P103 was intended for (was intention
of)
Domain:
E71 Man-Made
Thing
Quantification:
many to many (0,n:0,n)
Scope
note: This property
links an instance of E71 Man-Made Thing to an E55 Type of usage.
It creates a property between specific man-made things, both physical
and immaterial, to Types of intended methods and techniques of use. Note: A link
between specific man-made things and a specific use activity should be expressed
using P19 was intended use of (was made for).
Examples:
§
this plate (E22) was intended for being
destroyed at wedding reception (E55)
P104 is subject to (applies to)
Domain:
E72 Legal
Object
Quantification: many to
many (0,n:0,n)
Scope
note: This property
links a particular E72 Legal Object to the instances of E30 Right to which it is
subject.
The Right is held by an E39 Actor as described
by P75 possesses (is possessed by).
Examples:
§
Beatles back catalogue (E72) is subject to
reproduction right on Beatles back catalogue (E30)
P105 right held by (has right
on)
Domain:
E72 Legal
Object
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor who holds the instances of E30 Right to an E72 Legal
Object.
It is a superproperty of P52 has current owner
(is current owner of) because ownership is a right
that is held on the owned object.
P105 right held by (has right on) is a
shortcut of the fully developed path from E72 Legal Object through P104 is
subject to (applies to), E30 Right, P75 possesses (is possessed by)
to E39 Actor.
Examples:
§
Beatles back catalogue (E73) right held by
Michael Jackson (E21)
P106 is composed of (forms part of)
Domain:
E90 Symbolic Object
Range:
E90 Symbolic
Object
Superproperty
of:
Subproperty
of:
Quantification:
many to many (0,n:0,n)
Scope
note: This property
associates an instance of E90 Symbolic
Object with a part of it that is by itself an instance
of E90 Symbolic Object, such as fragments of texts or
clippings from an image.
Examples:
§
This Scope note P106 has part
‘fragments of texts’
§
‘recognizable’ P106 has part
‘ecognizabl’
P107 has current or former member (is current or
former member of)
Domain:
E74
Group
Quantification:
many to many (0,n:0,n)
Scope
note: This property
relates an E39 Actor to the E74 Group of which he or she is a member.
Groups, Legal Bodies and Persons, may all be members of Groups. A
Group necessarily consists of more than one member.
This property is a shortcut of the more fully developed path from E74
Group through P144 joined with (gained member by), E85 Joining, P143 joined (was
joined by) to E39 Actor
The property P107.1 kind of member can
be used to specify the type of membership or the role the member has in the
group.
Examples:
§
Moholy Nagy (E21) is current or former
member of Bauhaus (E74)
§
National
Museum of Science and Industry (E40) has current or
former member The National Railway Museum (E40)
§
The married couple Queen Elisabeth and Prince
Phillip (E74) has current or former member Prince Phillip (E21) with
P107.1 kind of member husband (E55 Type)
Properties:
P107.1 kind of member: E55 Type
Domain:
E12
Production
Subproperty of: E11 Modification.
P31 has
modified (was modified by): E24 Physical
Man-Made Thing
E63
Beginning of Existence. P92 brought into
existence (was brought into existence by): E77 Persistent
Item
Quantification:
one to many, necessary, dependent (1,n:1,1)
Scope
note: This property
identifies the E24 Physical Man-Made Thing that came into existence as a result
of an E12 Production.
The identity of an instance of E24 Physical
Man-Made Thing is not defined by its matter, but by its existence as a subject
of documentation. An E12 Production can result in the creation of multiple
instances of E24 Physical Man-Made Thing.
Examples:
§
The building of Rome (E12) has
produced Ôhe Colosseum (E22)
P109 has current or former curator (is current or
former curator of)
Domain:
E78
Collection
Quantification: many to
many, necessary (1,n:0,n)
Scope
note: This property
identifies the E39 Actor or Actors who assume or have assumed overall curatorial
responsibility for an E78 Collection.
This
property is effectively a short-cut. It does not allow a history of curation to
be recorded. This would require use of an Event assigning responsibility for a
Collection to a curator.
Examples:
§
the Robert Opie Collection (E78) has current
or former curator Robert Opie (E39)
§
the Mikael. Foslie’s
coralline red algae Herbarium (E78) has current or
former curator Mikael Foslie
P110 augmented (was augmented by)
Domain:
E79 Part
Addition
Subproperty of:
E11
Modification. P31 has modified
(was modified by): E24 Physical
Man-Made Thing
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E24 Physical Man-Made Thing that is added to (augmented) in an
E79 Part Addition.
Although a Part Addition event normally
concerns only one item of Physical Man-Made Thing, it is possible to imagine
circumstances under which more than one item might be added to (augmented). For
example, the artist Jackson Pollock trailing paint onto multiple
canvasses.
Examples:
§
the final nail-insertion Event (E79)
augmented Coffin of George VI (E24)
P111 added (was added by)
Domain:
E79 Part
Addition
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E18 Physical Thing that is added during an E79 Part Addition
activity
Examples:
§
the insertion of the final nail (E79)
added the last nail in George VI’s coffin (E18)
P112 diminished (was
diminished by)
Domain:
E80 Part
Removal
Subproperty of:
E11
Modification. P31 has modified
(was modified by): E24 Physical
Man-Made Thing
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E24 Physical Man-Made Thing that was diminished by E80 Part
Removal.
Although a Part removal activity normally concerns only one item of
Physical Man-Made Thing, it is possible to imagine circumstances under which
more than one item might be diminished by a single Part Removal activity.
Examples:
§
the coffin of Tut Ankh Amun (E22) was
diminished by The opening of the coffin of Tut Ankh Amun (E80)
P113 removed (was removed by)
Domain:
E80 Part
Removal
Range:
E18 Physical
Thing
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E18 Physical Thing that is removed during an E80 Part Removal
activity.
Examples:
§
the opening of the coffin of Tut Ankh Amun (E80)
removed The mummy of Tut Ankh Amun (E20,E22)
P114 is equal in time to
Domain:
E2 Temporal
Entity
Range:
E2 Temporal
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This symmetric
property allows the instances of E2 Temporal Entity with the same E52 Time-Span
to be equated.
This property is only necessary if the time span is unknown
(otherwise the equivalence can be calculated).
This property is
the same as the "equal" relationship of Allen’s temporal logic (Allen,
1983, pp. 832-843).
Examples:
§
the destruction of the Villa Justinian Tempus
(E6) is equal in time to the death of Maximus Venderus (E69)
P115 finishes (is finished by)
Domain:
E2 Temporal
Entity
Range:
E2 Temporal
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
allows the ending point for a E2 Temporal Entity to be situated by reference to
the ending point of another temporal entity of longer duration.
This property is only necessary if the time span is unknown
(otherwise the relationship can be calculated). This property is the same as the
"finishes / finished-by" relationships of Allen’s temporal logic (Allen, 1983,
pp. 832-843).
Examples:
§
Late Bronze Age (E4) finishes Bronze Age
(E4)
P116 starts (is started by)
Domain:
E2 Temporal
Entity
Range:
E2 Temporal
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
allows the starting point for a E2 Temporal Entity to be situated by reference
to the starting point of another temporal entity of longer duration.
This property is only necessary if the time span is unknown
(otherwise the relationship can be calculated). This property is the same as the
"starts / started-by" relationships of Allen’s temporal logic (Allen, 1983, pp.
832-843).
P117 occurs during (includes)
Domain:
E2 Temporal
Entity
Range:
E2 Temporal
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
allows the entire E52 Time-Span of an E2 Temporal Entity to be situated within
the Time-Span of another temporal entity that starts before and ends after the
included temporal entity.
This property is only necessary if the time span is unknown
(otherwise the relationship can be calculated). This property is the same as the
"during / includes" relationships of Allen’s temporal logic (Allen, 1983,
pp. 832-843).
Examples:
§
Middle Saxon period (E4) occurs during
Saxon period (E4)
P118 overlaps in time with (is overlapped in time
by)
Domain:
E2 Temporal
Entity
Range:
E2 Temporal
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies an overlap between the instances of E52 Time-Span of two instances of
E2 Temporal Entity.
It implies a
temporal order between the two entities: if A overlaps in time B, then A must
start before B, and B must end after A. This property is only necessary if the
relevant time spans are unknown (otherwise the relationship can be
calculated).
This property is the same as the "overlaps / overlapped-by"
relationships of Allen’s temporal logic (Allen, 1983, pp. 832-843).
Examples:
§
the Iron Age (E4) overlaps in time with
the Roman period (E4)
P119 meets in time with (is met in time
by)
Domain:
E2 Temporal
Entity
Range:
E2 Temporal
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
indicates that one E2 Temporal Entity immediately follows another.
It implies a particular order between the two entities: if A meets in
time with B, then A must precede B. This property is only necessary if the
relevant time spans are unknown (otherwise the relationship can be calculated).
This property is the same as the "meets / met-by " relationships of
Allen’s temporal logic (Allen, 1983, pp.
832-843).
Examples:
§
Early Saxon Period (E4) meets in time with
Middle Saxon Period (E4)
P120 occurs before (occurs after)
Domain:
E2 Temporal
Entity
Range:
E2 Temporal
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the relative chronological sequence of two temporal entities.
It implies that a temporal gap exists between the end of A and the
start of B. This property is only necessary if the relevant time spans are
unknown (otherwise the relationship can be calculated).
This property is the same as the "before / after " relationships of
Allen’s temporal logic (Allen, 1983, pp.
832-843).
Examples:
§
Early Bronze Age (E4) occurs before Late
Bronze age (E4)
P121 overlaps with
Domain:
E53 Place
Range:
E53 Place
Quantification: many to many (0,n:0,n)
Scope
note: This symmetric
property allows the instances of E53 Place with overlapping geometric extents to
be associated with each other.
It does not specify anything about the shared area. This property is
purely spatial, in contrast to Allen operators, which are purely
temporal.
Examples:
§
the territory of the United States (E53)
overlaps with the Arctic (E53)
P122 borders with
Domain:
E53 Place
Range:
E53 Place
Quantification: many to many (0,n:0,n)
Scope
note: This symmetric
property allows the instances of E53 Place which share common borders to be
related as such.
This property is purely spatial, in contrast to
Allen operators, which are purely temporal.
Examples:
§
Scotland (E53) borders with England
(E53)
P123 resulted in (resulted from)
Domain:
E81
Transformation
Range:
E77 Persistent
Item
Subproperty of: E63 Beginning of
Existence. P92
brought into existence (was brought into existence by): E77 Persistent
Item
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the E77 Persistent Item or items that are the result of an E81
Transformation.
New items replace the transformed item or items, which cease to exist
as units of documentation. The physical continuity between the old and the new
is expressed by the link to the common Transformation.
P124 transformed (was transformed by)
Domain:
E81
Transformation
Range:
E77 Persistent
Item
Subproperty of: E64 End of
Existence. P93
took out of existence (was taken out of existence by): E77 Persistent
Item
Quantification: one to many, necessary
(1,n:0,1)
Scope
note: This property
identifies the E77 Persistent Item or items that cease to exist due to a E81
Transformation.
It is replaced by the result of the Transformation, which becomes a
new unit of documentation. The continuity between both items, the new and the
old, is expressed by the link to the common Transformation.
Examples:
§
the transformation of the Venetian Loggia in
Heraklion into a city hall (E81) transformed the Venetian Loggia in
Heraklion (E22)
§
the death and mummification of Tut Ankh Amun
(E81) transformed the ruling PharaoTut Ankh Amun (E21)
P125 used object of type (was type of object used
in)
Domain:
E7
Activity
Range:
E55
Type
Subproperty of:
Quantification:
many to many (0,n:0,n)
Scope
note: This property
defines the kind of objects used in an E7 Activity, when the specific instance
is either unknown or not of interest, such as use of "a hammer".
Examples:
§
at the Battle of Agincourt (E7), the English
archers used object of type long bow (E55)
P126 employed (was employed in)
Domain:
E11
Modification
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies E57 Material employed in an E11 Modification.
The E57 Material used during the E11 Modification does not
necessarily become incorporated into the E24 Physical Man-Made Thing that forms
the subject of the E11 Modification.
Examples:
§
the repairing of the Queen Mary (E11)
employed Steel (E57)
§
distilled water (E57) was employed in the
restoration of the Sistine Chapel (E11)
P127 has broader term (has narrower
term)
Domain:
E55
Type
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies a super-Type to which an E55 Type is related.
It allows Types to be organised into hierarchies. This is the sense of "broader
term generic
(BTG)" as defined in ISO 2788
Examples:
§
dime (E55) has broader term coin
(E55)
P128 carries (is carried by)
Domain:
E24 Physical
Man-Made Thing
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies an E73 Information Object carried by an instance of E24 Physical
Man-Made Thing.
In general this would be an E84 Information Carrier P65 shows
visual item (is shown by) is a specialisation of P128 carries (is carried
by) which should be used for carrying visual items.
Examples:
§
Matthew’s paperback copy of Reach for the Sky
(E84) carries the text of Reach for the Sky (E73)
P129 is about (is subject of)
Domain:
E89
Propositional Object
Range:
E1 CRM
Entity
Subproperty: E89 Propositional
Object. P67
refers to (is referred to by): E1 CRM
Entity
Quantification: many to
many (0,n:0,n)
Scope
note: This property
documents that an E89 Propositional Object has as subject an instance of E1 CRM
Entity.
This differs from P67 refers to (is referred
to by), which refers to an E1 CRM Entity, in that it describes the primary
subject or subjects of an E89 Propositional Object.
Examples:
§
The text entitled ‘Reach for the sky’ (E33)
is about Douglas Bader (E21)
P130 shows features of (features are also found
on)
Domain:
E70
Thing
Quantification:
many to many (0,n:0,n)
Scope
note: This property
generalises the notions of "copy of" and "similar to" into a dynamic,
asymmetric relationship, where the domain expresses the derivative, if such a
direction can be established.
Otherwise, the relationship is symmetric. It is a short-cut of P15
was influenced by (influenced) in a creation or production, if such a reason
for the similarity can be verified. Moreover it expresses similarity in cases
that can be stated between two objects only, without historical knowledge about
its reasons.
Examples:
§
the Parthenon Frieze on the Acropolis in Athens
(E22) shows features of the Original Parthenon Frieze in the British
museum (E22). Kind of similarity: Copy (E55)
Properties:
P130.1 kind of similarity: E55
Type
P131 is identified by (identifies)
Domain:
E39
Actor
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies a name used specifically to identify an E39 Actor.
This property is a specialisation of P1 is
identified by (identifies) is identified by.
Examples:
§
Tyler Withersopp IV (E39) is identified by
US social security number 619-17-4204 (E82)
P132 overlaps with
Domain:
E4
Period
Quantification:
many to many (0,n:0,n)
Scope
note: This symmetric
property allows instances of E4 Period that overlap both temporally and
spatially to be related, i,e. they share some spatio-temporal extent.
This property does not imply any ordering or sequence between the two
periods, either spatial or temporal.
Examples:
§
the “Urnfield” period (E4) overlaps with
the “Hallstatt” period (E4)
P133 is separated from
Domain:
E4
Period
Quantification:
many to many (0,n:0,n)
Scope
note: This symmetric
property allows instances of E4 Period that do not overlap both temporally and
spatially, to be related i,e. they do not share any spatio-temporal
extent.
This property does not imply any ordering or sequence between the two
periods either spatial or temporal.
Examples:
§
the “Hallstatt” period (E4) is separated
from the “La Tène” era (E4)
P134 continued (was continued by)
Domain:
E7
Activity
Quantification:
many to many (0,n:0,n)
Scope
note: This property
allows two activities to be related where the domain is considered as an
intentional continuation of the range.
Used multiple times, this allows a chain of related activities to be
created which follow each other in sequence.
Examples:
§
the construction of the Kölner Dom (Cologne
Cathedral) (E7), abandoned in the 15th century, was continued by
construction in the 19th century adapting the initial plans so as to
preserve the intended appearance (E7)
P135 created type (was created by)
Domain:
E83 Type
Creation
Quantification:
one to many, necessary (1,n:0,1)
Scope
note: This property
identifies the E55 Type, which is created in an E83Type Creation
activity.
Examples:
§
The description of a new ribbon worm
species by Bürger (E83) created type ‘Lineus coxinus (Bürger, 1892)’ (E55)
P136 was based on (supported type
creation)
Domain:
E83 Type
Creation
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies one or more items that were used as evidence to declare a new E55
Type.
The examination of these items is often the only objective way to
understand the precise characteristics of a new Type. Such items should be
deposited in a museum or similar institution for that reason. The taxonomic role
renders the specific relationship of each item to the Type, such as "holotype"
or "original element".
Examples:
§
the taxon creation of the plant species
‘Serratula glauca Linné, 1753.’ (E83) was based on Object
BM000576251 of the Clayton Herbarium (E20) in the taxonomic role
original element (E55)
Properties:
P136.1 in the taxonomic role: E55
Type
P137 exemplifies ( is exemplified by )
Domain:
E1 CRM Entity
Range:
E55 Type
Quantification:
many to many (0,n:0,n)
Scope
note: This property
allows an item to be declared as a particular example of an E55 Type or
taxon
The P137.1 in the taxonomic role property of P137 exemplifies (is
exemplified by) allows differentiation of taxonomic roles. The taxonomic
role renders the specific relationship of this example to the Type, such as
"prototypical", "archetypical", "lectotype", etc. The taxonomic role "lectotype"
is not associated with the Type Creation (E83) itself, but selected in a later
phase.
Examples:
§
Object BM000098044 of the Clayton Herbarium (E20)
exemplifies Spigelia marilandica (L.) L.
(E55) in the taxonomic role lectotype
Properties:
P137.1 in the taxonomic role: E55
Type
P138 represents (has representation)
Domain:
E36 Visual
Item
Range:
E1 CRM
Entity
Subproperty: E89 Propositional
Object. P67
refers to (is referred to by): E1 CRM
Entity
Quantification: many to
many (0,n:0,n)
Scope
note: This property
establishes the relationship between an E36 Visual Item and the entity that it
visually represents.
Any entity may be
represented visually. This property is part of the fully developed path from E24
Physical Man-Made Thing through P65 shows visual item (is shown by), E36
Visual Item, P138 represents (has representation) to E1 CRM Entity, which
is shortcut by P62depicts (is depicted by). P138.1 mode of representation
allows the nature of the representation to be refined.
Examples:
§
the design on the reverse of a Swiss coin (E36)
represents Helvetia (E28) mode of representation Profile
(E55)
Properties:
P138.1 mode of representation: E55
Type
P139 has alternative form
Domain:
E41 Appellation
Quantification:
many to many (0,n:0,n)
Scope
note: This property establishes a relationship of equivalence between two
instances of E41 Appellation independent from any item identified by them. It is
a dynamic asymmetric relationship, where the range expresses the derivative, if
such a direction can be established. Otherwise, the relationship is symmetric.
The relationship is not transitive.
The equivalence applies to all cases of use of an instance of E41
Appellation. Multiple names assigned to an object, which are not equivalent for
all things identified with a specific instance of E41 Appellation, should be
modelled as repeated values of P1 is identified by (identifies).
P139.1 has
type allows
the type of derivation, such as “transliteration from Latin 1 to ASCII” be
refined..
Examples:
§
"Martin Doerr" (E41) has alternative form
"Martin Dörr" (E41) has type Alternate spelling (E55)
§
"Гончарова, Наталья
Сергеевна" (E41) has alternative form
"Gončarova, Natal´â Sergeevna" (E41) has type ISO 9:1995 transliteration
(E55)
§
“ÁèÞíá” has alternative form “Athina” has type
transcription.
Properties:
P139.1 has type: E55
Type
P140 assigned
attribute to (was attributed by)
Domain:
E13 Attribute Assignment
Superproperty of:E14 Condition
Assessment. P34 concerned
(was assessed by): E18 Physical
Thing
E16 Measurement.
P39 measured
(was measured by): E70
Thing
E17
Type Assignment. P41 classified
(was classified by): E1 CRM
Entity
Quantification: many to many (0,n:0,n)
Scope
note: This property
indicates the item to which an attribute or relation is assigned.
Examples:
§
February 1997 Current Ownership Assessment of
Martin Doerr’s silver cup (E13) assigned attribute to Martin Doerr’s
silver cup (E19)
§
01 June 1997 Identifier
Assignment of the silver cup donated by Martin Doerr (E15) assigned attribute
to silver cup 232 (E19)
P141 assigned
(was assigned by)
Domain:
E13 Attribute Assignment
Superproperty of:E14 Condition
Assessment. P35 has
identified (identified by): E3 Condition
State
E15 Identifier
Assignment. P37 assigned (was
assigned by): E42
Identifier
E15 Identifier
Assignment. P38 deassigned
(was deassigned by): E42
Identifier
E16 Measurement. P40 observed
dimension (was observed in): E54
Dimension
E17 Type
Assignment. P42 assigned (was
assigned by): E55
Type
Quantification: many to many (0,n:0,n)
Scope
note: This property
indicates the attribute that was assigned or the item that was related to the
item denoted by a property P140 assigned attribute to in an Attribute assignment
action.
Examples:
§
February 1997 Current Ownership Assessment of
Martin Doerr’s silver cup (E13) assigned Martin Doerr (E21)
§
01 June 1997 Identifier Assignment of the silver
cup donated by Martin Doerr (E15) assigned object identifier
232
P142 used
constituent (was used in)
Domain:
E15 Identifier
Assignment
Subproperty of: E7 Activity. P16 used specific
object (was used for): E70
Thing
Quantification:
(0:n,0:n)
Scope
note: This property
associates the event of assigning an instance of E42 Identifier to an entity,
with the instances of E41 Appellation that were used as elements of the
identifier.
Examples:
§
On June 1, 2001 assigning the personal name
heading “Guillaume, de Machaut, ca. 1300-1377” (E15) used constituent
“Guillaume, de Machaut” (E82 Actor Appellation)
§
On June 1, 2001 assigning the personal name
heading “Guillaume, de Machaut, ca. 1300-1377” (E15) used constituent
“ca. 1300-1377” (E49 Time Appellation
P143 joined (was
joined by)
Domain:
E85
Joining
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E39 Actor that becomes member of a E74 Group in an
E85 Joining.
Joining events allow for describing people becoming members of a group with a
more detailed path from E74 Group through P144 joined
with (gained member by), E85 Joining, P143 joined (was joined by)
to E39 Actor, compared to the shortcut offered by
P107 has current or former member (is current or former member
of).
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament to the Convention Parliament of 1689 joined Sir Isaac
Newton
§
The inauguration of Mikhail Sergeyevich Gorbachev
as leader of the Union of Soviet Socialist Republics (USSR) in 1985
joined Mikhail Sergeyevich Gorbachev
§
The implementation of the membership treaty
January 1. 1973 between EU and Denmark joined Denmark
(E40)
P144 joined with
(gained member by)
Domain:
E85
Joining
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E74 Group of which an instance of E39 Actor becomes a
member through an instance of E85 Joining.
Although a Joining activity normally concerns
only one instance of E74 Group, it is possible to imagine circumstances under
which becoming member of one Group implies becoming member of another Group as
well.
Joining events allow for describing people
becoming members of a group with a more detailed path from E74 Group through
P144 joined with (gained member by), E85 Joining, P143 joined (was joined by) to
E39 Actor, compared to the shortcut offered by P107 has current or former member
(is current or former member of).
The property P144.1 kind of member can
be used to specify the type of membership or the role the member has in the
group.
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament to the Convention Parliament of 1689 joined with the
Convention Parliament
§
The inauguration of Mikhail Sergeyevich Gorbachev
as Leader of the Union of Soviet Socialist Republics (USSR) in 1985 joined
with the office of Leader of the Union of Soviet Socialist Republics (USSR)
with P144.1 kind of member President
§
The implementation of the membership treaty
January 1. 1973 between EU and Denmark joined with EU (E40)
Properties:
P144.1 kind of member: E55
Type
Domain:
E86
Leaving
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E39 Actor that leaves an instance of E74 Group
through an instance of E86 Leaving.
Examples:
§
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in 1702
separated Sir Isaac Newton
§
George Washington’s leaving office in 1797
separated George Washington
§
The implementation of the treaty regulating the
termination of Greenland membership in EU between EU, Denmark and Greenland
February 1. 1985 (E86) separated Greenland (E40)
P146 separated
from (lost member by)
Domain:
E86
Leaving
Range:
E74
Group
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E74 Group an instance of E39 Actor leaves through an
instance of E86 Leaving.
Although a Leaving activity normally concerns
only one instance of E74 Group, it is possible to imagine circumstances under
which leaving one E74 Group implies leaving another E74 Group as
well.
Examples:
§
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in 1702
separated from the Convention Parliament
§
George Washington’s leaving office in 1797
separated from the office of President of the United States
§
The implementation of the treaty regulating the
termination of Greenland membership in EU between EU, Denmark and Greenland
February 1. 1985 separated from EU (E40)
P147 curated (was curated by)
Quantification: many to
many, necessary (1,n:0,n)
Scope
note: This property
associates an instance of E78 Collection or collections with subject of a
curation activity following some implicit or explicit curation plan.
Examples:
§
The activities (E87) by the Benaki Museum
curated the acquisition of dolls and games of
urban and folk manufacture dating from the 17th to the 20th century, from
England, France and Germany for the “Toys, Games and Childhood Collection (E78)
of the Museum.
§
The activities (E87) of the Historical Museum of Crete, Heraklion, Crete, curated the
development of the permanent Numismatic Collection
(E78).
§
The
activities (E87) by Mikael Foslie curated the Mikael. Foslie’s coralline red
algae Herbarium
P148 has component (is component of)
|
Editors: |
Nick
Crofts
City of Geneva,
Geneva,
Switzerland |
Martin
Doerr,
ICS-FORTH,
Heraklion-Crete,
Greece
|
Tony Gill
RLG,
Mountain View,
CA, USA |
Stephen Stead,
Paveprime Ltd,
London
UK |
Matthew Stiff
English
Heritage
Swindon,
UK |
Creation Date:
11-07-1998
Last Modified:
24-10-2003
The present
version of the CIDOC CRM incorporates a series of amendments to version 3.2.1,
submitted to ISO and accepted as Committee Draft ISO/CD 21127. These amendments
were the result of a systematic exploration of the requirements for the intended
scope of the CIDOC CRM as decided in summer 2001. This includes in particular
documentation in Natural History, archaeology and the ability to communicate
with traditional and Digital Libraries. These amendments have been developed and
approved by the CIDOC CRM Special Interest Group, ISO/TC46/SC4/WG9 in a series
of meetings together with various invited experts in the period from July 2001
to October 2003.
With this version, the cycle
of amendments to extend the functionality of the CIDOC CRM ends. The development
team felt that the task to cover the intended scope as outlined in July 2001 and
the general functionality required by members of the team up to now has been
successfully fulfilled. Further amendments should only concern editorial changes
to improve the clarity of the text. Therefore, the modelling constructs of
the CIDOC CRM are expected to undergo no changes from this version until the
final International Standard.
In the Second
Joined Meeting of ISO/TC46/SC4/WG9 and CIDOC CRM SIG the following has been
decided: 3, new entities and 14 new properties have been declared, domain of 3
properties and range of 2 properties was changed and 1 property
renamed
1) New Entities
and their properties
E78
Collection is curated by (curates): Actor
E79 Part Addition added to (was augmented by): Physical Man-Made
Thing
E79 Part Addition added (was added by): Physical Thing
E80 Part Removal removed from (was diminished by): Physical Man-Made
Thing
E80 Part Removal removed (was removed by): Physical Thing
2) New
properties
E2 Temporal Entity. removed (was removed by): Temporal
Entity
E2 Temporal Entity. equal in time: Temporal Entity
E2 Temporal Entity. finishes (finished-by): Temporal
Entity
E2 Temporal Entity. starts (started-by): Temporal Entity
E2 Temporal Entity. during (includes): Temporal Entity
E2 Temporal Entity. overlaps in time (overlapped-by in time):
Temporal Entity
E2 Temporal Entity. meets in time (met-by in time): Temporal
Entity
E2 Temporal Entity. before (after): Temporal Entity
E53 Place overlaps. with: E53
Place
E53 Place borders. with: E53 Place
3) The Property:
E19 Physical Object. has former or current location (is former or current
location of): Place
has been redirected to:
E18 Physical Thing. has former or current location (is former or current
location of): Place
4) The
Property:
E19 Physical Object. has current permanent location (is current permanent
location of): Place
has been redirected to:
E18 Physical Thing. has current permanent location (is current permanent
location of): Place
5) The
Property:
E19 Physical Object. has current location (currently holds): Place
has been redirected to:
E18 Physical Thing. has current location (currently holds): Place
6) The
Property:
E7 Activity. was motivation for (motivated): Conceptual Object
has been redirected to:
E7 Activity. was motivation for (motivated): Man-Made Thing
7) The
Property:
E7 Activity. motivated the creation of (was created for): Conceptual
Object
has been redirected and changed to:
E7 Activity. motivated the creation of (was created because of): Man-Made
Thing
8) The property
“P33 used specific technique” was declared as subproperty of “P15 took into
account”
9) The property
“P111 added to” was declared as subproperty of “P31 has modified”
10) The property
“P113 removed from” was declared as subproperty of “P31 has modified”
11) Scope note
for Actors Hierarchy, Actor and Title have been revised.
12) Scope notes for properties have been
added.
In the 3rd
joined meeting of the CIDOC Special Interest Group and ISO/TC46//SC4/WG9 the
following have been decided: 1 new entity and 5 new properties have been
declared, domain of 4 properties was changed and 1 property renamed, 1 entity
has been deleted, 7 entities was renamed.
1) New Entity
and its properties
E81
Transformation resulted in (was result on): Persistent Item
E81
Transformation transformed (was transformed by): Persistent Item
2) New properties
E7
Activity. used general object (was used for): Type
E11
Modification. employed (was employed by): Material
E55 Type.
has broader term (has narrower term): Type
3) The Property:
E19 Physical Object. has former or current keeper (is former or current keeper
of): Actor
has been redirected to:
E18 Physical Thing. has former or current keeper (is former or current keeper
of): Actor
4) The Property:
E19 Physical Object. has keeper (is current keeper of): Actor
has been redirected to:
E18 Physical Thing. has keeper (is current keeper of): Actor
5) The Property:
E19 Physical Object. has former or current owner (is former or current owner
of): Actor
has been redirected to:
E18 Physical Thing. has former or current owner (is former or current owner of):
Actor
6) The Property:
E19 Physical Object. has owner (is current owner of): Actor
has been redirected to:
E18 Physical Thing. has owner (is current owner of): Actor
7) The
Property:
E7 Activity. used object (was used for): Physical Object
has been renamed to:
E7 Activity. used specific object (was used for): Physical Object
8) The entity
E76 Gender
and the property P61 has gender
have been
deleted
9) 7 entities has been
renamed:
|
E8 Acquisition |
E8
Acquisition |
|
E11 Modification |
E11
Modification |
|
E12 Production |
E12
Production |
|
E16 Measurement |
E16
Measurement |
|
E65 Conceptual
Creation |
E65 Creation |
|
E66 Formation |
E66 Formation |
|
E77 Existence |
E77 Persistent
Item |
In the 3th joined meeting of the CIDOC
Special Interest Group and ISO/TC46//SC4/WG9 the following have been decided: 2
new entities and 12 new properties have been declared, 1 entity has been
renamed, domain of 4 properties was changed, range of 8 properties was changed,
6 properties renamed, 7 properties has been deleted.
Note: a typing mistake was corrected in item
number 17 of the list on 16/01/2008.
The
property:
E9 Move. P27 moved from (vacated): E53 Place
has been renamed
to :
E9 Move. P26 moved
from (was origin of): E53 Place
This was corrected to:
The
property:
E9 Move. P27 moved from (vacated): E53 Place
has been renamed
to :
E9 Move. P27 moved
from (was origin of): E53 Place
E83 Type Creation.
It was declared as
subclass of E65 Creation
2)
New properties:
E23 Information
Carrier. P128 is carried of (is materialized by): E73
Information Object
E73 Information
Object. P129 is about (is subject of): E1 CRM Entity
E28 Conceptual Object. P67 refers to (is referred to by): E1 CRM
Entity
E70 Thing. P130
shows features of (features are also found on): E70 Thing
(kind of similarity: Type)
It was declared as
superproperty of
E33 Linguistic Object. P73 has translation (is translation of): E33
Linguistic Object
E4 Period. P132
overlaps with: E4 Period
E4 Period. P133 is
separated from: E4 Period
E7 Activity.
P134 continued (was continued by): E7
Activity
It was declared as
subproperty of
E7 Activity. P15 (was influenced by (influenced): E7
Activity
E83 Type Creation.
P135 created type (was created by): E55 Type.
It was declared as
subproperty of
E65 Creation. P94 has created (was created by): E28 Conceptual
Object
E83 Type Creation.
P136 was based on (supported type creation): E1 CRM Entity
(in the taxonomic role: E55 Type)
It was declared as
subproperty of
E7 Activity. P15 was influenced by (influenced): E1 CRM
Entity.
E55 Type. P137
is exemplified by (exemplifies): E1 CRM Entity
(in the taxonomic role: E55 Type)
E36 Visual Item.
P138 visualizes (has visualization): E1 CRM Entity,
E28 Conceptual Object. P67 refer to (is referred to by): E1 CRM
Entity
4)
The domain of the following properties was changed:
The property:
E18 Physical Thing. P43 has dimension (is dimension of): E54
Dimension
has been redirected to:
The property:
E28 Conceptual
Object. P67 refers to (is referred to by): E1 CRM Entity
has been redirected to:
E73 Information Object. P67 refers to (is
referred to by): E1 CRM Entity
The property:
E18 Physical Thing. P54 has current permanent location (is current
permanent location of): E53 Place
has been redirected to:
E19 Physical Object. P54 has current permanent location (is current
permanent location of): E53 Place
The property:
E18 Physical
Thing. P55 has current location (currently holds): E53 Place
has been redirected to:
5)
The ranges of the following properties were changed:
The
property:
E16 Measurement. P39 measured (was measured
by): E18 Physical Thing
has been redirected to:
E16 Measurement. P39 measured (was measured
by): E70 Thing
The
property:
E7 Activity. P16
used specific object (was used for): E19 Physical Object
has been redirected to:
The
property:
has been redirected to:
E8 Acquisition. P24 transferred title of (changed ownership through):
E18 Physical Thing
The
property:
E5 Event. P12
occurred in the presence of (was present at): E70 Thing
has been redirected to:
7)
The property:
E7 Activity. P15
took into account (was taken into account by): E77 Persistent Item
has been renamed
and redirected to:
E7 Activity. P15 was influenced by (influenced): E1 CRM
Entity
8) The property:
E7 Activity. P17
was motivation for (motivated): E71 Man-Made Thing
has been renamed and
redirected to:
9) The property:
E24 Physical
Man-Made Thing. P62 depicts object (is depicted by): E18 Physical
Thing
has been renamed
and redirected to:
10) The property:
E74 Group. P107
had member (was member of): E39 Actor
has been renamed
to :
E74 Group. P107
has current or former member (is current or former member of): E39 Actor
11) The property:
E52 Time-Span. P81
at least covering: E61 Time Primitive
has been renamed
to :
E52 Time-Span. P81
ongoing throughout: E61 Time Primitive
12) The property:
E52 Time-Span. P82
at most within: E61 Time Primitive
has been renamed
to :
E52 Time-Span. P82
at some time within: E61 Time Primitive
13)
The following properties was deleted:
E3 Condition
State. P6 falls within (contains): E3 Condition State
E7 Activity. P18
motivated the creation of (was created because of): E71 Man-Made
Thing
E21 Person. P60 is
member of: E40 Legal Body
E24 Physical
Man-Made Thing. P63 depicts event (is depicted by):E5 Event
E24 Physical
Man-Made Thing. P64 depicts concept (is depicted by):E55 Type
E28 Conceptual
Object. P66 refer to concept (is referred to by): E55 Type
E52 Time-Span. P85
consists of (forms part of): E52 Time-Span
14)
The property:
E5 Event. P11 had
participants (participated in): E39 Actor
has been renamed
to :
E5 Event. P11 had
participant (participated in): E39 Actor
15)
The property:
E7 Activity. P21
had as general purpose (was purpose of): E55 Type
has been renamed
to :
E7 Activity. P21
had general purpose (was purpose of): E55 Type
16)
The property:
E9 Move. P26 moved to (occupied): E53 Place
has been renamed
to :
E9 Move. P26 moved
to (was destination of): E53 Place
17)
The property:
E9 Move. P27 moved from (vacated): E53 Place
has been renamed
to :
E9 Move. P27 moved
from (was origin of): E53 Place
18)
The property:
E15 Identifier Assignment. P37 assigns (is assigned by): E42 Object
identifier
has been renamed
to :
E15 Identifier Assignment. P37 assigned (was assigned by): E42 Object
identifier
19)
The property:
E15 Identifier Assignment. P38 deassigns (is deassigned by): E42 Object
identifier
has been renamed
to :
E15 Identifier Assignment. P38 deassigned (was deassigned by): E42 Object
identifier
20)
The property:
E19 Physical Object. P48 preferred identifier is (is preferred identifier of):
E42 Object identifier
has been renamed
to :
E19 Physical Object. P48 has preferred identifier (is preferred identifier of):
E42 Object identifier
21)
The property:
E32 Authority Document. P71 contains (is part of): E55 Type
has been renamed
to :
E32 Authority Document. P71 lists (is listed in): E55 Type
21)
The property:
E39 Actor. P76 has contact points (provides access to): E51 Contact
Point
has been renamed
to :
E39 Actor. P76 has contact point (provides access to): E51 Contact
Point
22)
The property:
E52 Time-Span. P83 had at least duration: E54 Dimension
has been renamed
to :
E52 Time-Span. P83 had at least duration (was minimum duration of): E54
Dimension
23)
The property:
E52 Time-Span. P84 had at most duration: E54 Dimension
has been renamed
to :
E52 Time-Span. P84 had at most duration (was maximum duration of): E54
Dimension
24)
The property:
E54 Dimension. P90 value: E60 Number
has been renamed
to :
E54 Dimension. P90 has value: E60 Number
25) The property:
P15 was influenced
by (influenced)
was declared as
superproperty of
P16 used specific object (was used for)
P17 was motivated by (motivated)
P19 was intended use of (was made for)
P20 had specific purpose (was purpose of)
P134 continued (was continued by)
26) The property:
P11 had participant (participated in)
was declared as
subproperty of
P12 occurred in the presence of (was present at)
27) The entity
28) The entity
The following changes for internal
consistency have been proposed, but they have not been decided in the Copenhagen
meeting. They are incorporated in this document, in expectation of a positive
decision:
1) The property:
E40 Legal Body. consists of (belongs to): E40 Legal Body
was deleted (new
issue 104).
2) The property
P105.2 has note: E62 String
was deleted (new
issue 106).
3) The property:
P33 used specific
technique
was declared as
subproperty of
P12 occurred in the presence of (was present at)
4) New property
E39 Actor. P131 is
identified by (identifies): E82 Actor Appellation.
In the 5th joined meeting of the CIDOC
Special Interest Group and ISO/TC46//SC4/WG9 the following have been decided: 3
entities were deleted and 1 new entity was declared, 24 properties has been
renamed, domain of 1 property was changed, and range of 1 property was
changed.
Note: a typing mistake was corrected in item
number 14 of the list on 16/01/2008.
The property
E79 Part Removal.
P112 removed from (was diminished by): E24 Physical Man-Made Thing
has been renamed to :
E79 Part Removal.
P112 diminished (was diminished by): E24 Physical Man-Made Thing
This was corrected to:
The property
E80 Part Removal.
P112 removed from (was diminished by): E24 Physical Man-Made Thing
has been renamed to :
E80 Part Removal.
P112 diminished (was diminished by): E24 Physical Man-Made Thing
1) The entity:
E23 Information
Carrier
was deleted.
2) New entity
was declared.
3) The property
E8 Acquisition.
P22 transferred title to (acquired title to): E39 Actor
has been renamed to :
E8 Acquisition.
P22 transferred title to (acquired title through): E39 Actor
4) The property
E10 Transfer of
Custody. P28 custody surrendered by (surrendered custody): E39 Actor
has been renamed to :
E10 Transfer of
Custody. P28 custody surrendered by (surrendered custody through): E39
Actor
5) The property
E10 Transfer of
Custody. P29 custody received by (received custody): E39 Actor
has been renamed to :
E10 Transfer of
Custody. P29 custody received by (received custody through): E39
Actor
6) The property
E10 Transfer of
Custody. P30 transferred custody of (custody changed by): E19 Physical
Object
has been redirected and renamed to
:
E10 Transfer of
Custody. P30 transferred custody of (custody transferred through): E18 Physical
Thing
7) The property
E16 Measurement.
P40 observed dimension (was observed): E54 Dimension
has been renamed to :
E16 Measurement.
P40 observed dimension (was observed in): E54 Dimension
8) The property
E19 Physical Object. P58 has section definition (defines section):
E46 Section Definition
has been redirected to:
E18 Physical Thing. P58 has section definition (defines section): E46
Section Definition
9) The property
E52 Time-Span. P79 begins at qualify: E62 String
has been renamed to :
E52 Time-Span. P79 beginning is qualified by: E62 String
10) The property
E52 Time-Span. P80 ends at qualify: E62 String
has been renamed to :
E52 Time-Span. P80 end is qualified by: E62 String
11) The property
E54 Dimension. P91
unit: E58 Measurement Unit
has been renamed to :
E54 Dimension. P91
has unit (is unit of): E58 Measurement Unit
12) The property
E78 Collection.
P109 is curated by (curates): E39 Actor
has been renamed to :
E78 Collection.
P109 has current or former curator (is current or former curator of): E39
Actor
13) The property
E79 Part Addition.
P110 added to (was augmented by): E24 Physical Man-Made Thing
has been renamed to :
E79 Part Addition.
P110 augmented (was augmented by): E24 Physical Man-Made Thing
14) The property
E80 Part Removal.
P112 removed from (was diminished by): E24 Physical Man-Made Thing
has been renamed to :
E80 Part Removal.
P112 diminished (was diminished by): E24 Physical Man-Made Thing
15) The property
E2 Temporal
Entity. P114 equal in time: E2 Temporal Entity
has been renamed to :
E2 Temporal
Entity. P114 is equal in time to: E2 Temporal Entity
16) The property
E2 Temporal
Entity. P115 finishes (finished-by): E2 Temporal Entity
has been renamed to :
E2 Temporal
Entity. P115 finishes (is finished by): E2 Temporal Entity
17) The property
E2 Temporal
Entity. P116 starts (started-by): E2 Temporal Entity
has been renamed to :
E2 Temporal
Entity. P116 starts (is started by): E2 Temporal Entity
18) The property
E2 Temporal
Entity. P117 during (includes): E2 Temporal Entity
has been renamed to :
E2 Temporal
Entity. P117 occurs during (includes): E2 Temporal Entity
19) The property
E2 Temporal
Entity. P118 overlaps in time (overlapped-by in time): E2 Temporal
Entity
has been renamed to :
E2 Temporal
Entity. P118 overlaps in time with (is overlapped in time by): E2 Temporal
Entity
20) The property
E2 Temporal
Entity. P119 meets in time (met-by in time): E2 Temporal Entity
has been renamed to :
E2 Temporal
Entity. P119 meets in time with (is met in time by): E2 Temporal
Entity
21) The property
E2 Temporal
Entity. P120 before (after): E2 Temporal Entity
has been renamed to :
E2 Temporal
Entity. P120 occurs before (occurs after): E2 Temporal Entity
22) The property
E81
Transformation. P123 resulted in (was resulted on): E77 Persistent
Item
has been renamed to :
E81
Transformation. P123 resulted in (resulted from): E77 Persistent Item
23) The property
E7 Activity. P125
used general object (was used for): E55 Type
has been renamed to :
E7 Activity. P125
used object of type (was type of object used in): E55 Type
24) The property
E11 Modification.
P126 employed (was employed by): E57 Material
has been renamed to :
25) The property
E23 Information
Carrier. P128 is carried of (is materialized by): E73 Information
Object
has been redirected and renamed to
:
E24 Physical
Man-Made thing. P128 carries (is carried by): E73 Information Object
26) The property
E36 Visual Item.
P138 visualizes (has visualization): E1 CRM Entity
has been renamed to :
E36 Visual Item.
P138 represents (has representation): E1 CRM Entity
27) The property
E41 Appellation.
P139 also represented: E41 Appellation
has been renamed to :
E41 Appellation.
P139 has alternative form: E41 Appellation
28) The property
P3 has note
has been declared as superproperty
of
P79 beginning is qualified by
P80 end is qualified by
29) The property
P11 had participant (participated in)
was declared as superproperty of
P14 carried out by (performed)
P96 by mother (gave birth)
P99 dissolved (was
dissolvedby)
30) The property
P12 occured in the presence of (was present at)
was declared as superproperty of
P11 had participant (participated in)
P16 used specific
object (was used for)
P25 moved (moved
by)
P31 has modified
(was modified by)
P33 used specific
technique (was used by)
P92 brought into
existence (was brought into existence by)
P93 took out of
existence (was taken out of existence by)
31) The property:
P15 was influenced
by (influenced)
was declared as superproperty of
P16 used specific object (was used for)
P17 was motivated by (motivated)
P33 used specific technique (was used by)
P134 continued (was continued by)
P136 was based on (supported type creation)
32) The property:
E40 Legal Body. consists of (belongs to): E40 Legal Body
was deleted
33) The property
P105.2 has note: E62 String
was deleted
34) New property
E39 Actor. P131 is
identified by (identifies): E82 Actor Appellation.
Introduction and
Scope Notes for classes E21 – E84 have been revised, and 2 new paragraphs were
inserted
(CIDOC CRM Class
Declarations and CIDOC CRM Property Declarations).
Scope Notes for
all entities and properties have been revised, 2 new
properties was declared, 1 property was redirected and two properties was
renamed:
1) New property
E13 Attribute
Assignment. P140 assigned attribute to (was attributed by): E1 CRM
Entity
E14 Condition Assessment. P34 concerned (was assessed by): E18
Physical Thing
E15 Identifier Assignment. P36 registered
(was registered by): E19 Physical Object
E16 Measurement. P39 measured (was measured by): E70 Thing
E17 Type Assignment. P41
classified (was classified by): E1 CRM Entity
2) New property
E13 Attribute
Assignment. P141 assigned (was assigned by): E1 CRM Entity
E14 Condition Assessment. P35 has identified
(identified by): E3 Condition State
E15 Identifier Assignment. P37 assigned (was
assigned by): E42 Object Identifier
E15 Identifier Assignment. P38 deassigned
(was deassigned by): E42 Object Identifier
E16. Measurement.
P40 observed dimension (was observed in): E54 Dimension
E17 Type
Assignment. P42 assigned (was assigned
by): E55 Type
3) The Property:
E6 Destruction. P13 destroyed (was destroyed by): E19 Physical Object
has been
redirected to:
(This amendments list has been added in
version 4.2.2 on 11/03/2008 because it was omitted in the due version
4.2)
In the 11th joined meeting of the CIDOC CRM
SIG and ISO/TC46/SC4/WG9 which tool place in Zagreb Croatia on May
25th and 27th, 2005 the following decisions have been
taken:
1)
Stuff has been renamed in Thing, thus
E18 Physical Stuff
has been renamed to:
E18 Physical Thing
E24 Physical Man-Made Stuff
has been renamed to:
E24 Physical Man-Made Thing
E70
Stuff
has been renamed to:
E70 Thing
E71 Man-Made Stuff
has been renamed to:
E71 Man-Made Thing
2) From compounds with Event the word Event
has been removed, thus
E8 Acquisition
Event
has been renamed
to:
E8
Acquisition
E11
Modification Event
has been renamed
to:
E11
Modification
E12 Production
Event
has been renamed
to:
E12 Production
E16 Measurement
Event
has been renamed
to:
E16 Measurement
E65 Creation Event
has been renamed
to:
E65 Creation
E66 Formation
Event
has been renamed
to:
E66
Formation
In the 14th joined meeting of the CIDOC CRM SIG and ISO/TC46/SC4/WG9
which tool place in Crete, Greece on October 23-27, 2006 the following decisions
have been taken:
Became superproperty to of E7 Activity.P33 used specific technique (was used by):E29 Design or
Procedure
Became subproperty of E7 Activity. P125 used
object of type (was type of object used in): E55 Type
Became subproperty E7 Activity. P16 used specific object (was used for): E70
Thing
The name of P35B is changed to P35 has
identified (was identified by)
In 15th CIDOC CRM Harmonization
meeting, which took place in Edinburgh in 9 – 12 July 2007 the following
changes tool place.
Changes to entities:
In the second
paragraph of the scope note, in
the item numbered 1, the phrase “, and in particular by
a preferred identifier” has been added.
.
E3 Condition State
In the second
paragraph of the scope note the “It” has been substituted by “An instance of
this class”
The first and the
last sentence of the 4th paragraph of the scope note has been
changed.
From :
Artistic
style may be modelled as E4 Period.There are two different
conceptualisations of ‘style’, defined either by physical features or by
historical context. For example, “Impressionism” can be viewed as a period
lasting from approximately 1870 to 1905 during which paintings with particular
characteristics were produced by a group of artists that included (among others)
Monet, Renoir, Pissarro, Sisley and Degas. Alternatively, it can be regarded as
a style applicable to all paintings sharing the characteristics of the works
produced by the Impressionist painters, regardless of historical context. The
first interpretation is consistent
with E4 Period, and the second defines morphological object types that
fall under E55 Type.
To:
There are two different
conceptualisations of ‘artistic style’, defined either by physical features or
by historical context. For example, “Impressionism” can be viewed as a period
lasting from approximately 1870 to 1905 during which paintings with particular
characteristics were produced by a group of artists that included (among others)
Monet, Renoir, Pissarro, Sisley and Degas. Alternatively, it can be regarded as
a style applicable to all paintings sharing the characteristics of the works
produced by the Impressionist painters, regardless of historical context. The
first interpretation is an E4 Period, and the second defines morphological
object types that fall under E55 Type.
The scope note and the examples are changed
and the property P36 is deleted and P142 is added.
BEFORE
Scope
note: This class
comprises actions assigning or deassigning object identifiers.
Examples of such identifiers
include Find Numbers and Inventory Numbers. Documenting the act of identifier
assignment and deassignment is especially useful when objects change custody or
the identification system of an organization is changed. In order to keep track
of the identity of an object in such cases, it is important to document by whom,
when and for what purpose an identifier is assigned to an object.
Examples:
§
replacement of the inventory number TA959a by GE34604 for a
17th century lament cloth at the Museum Benaki, Athens
Properties:
P36 registered
(was registered by): E19 Physical Object
P37 assigned (was
assigned by): E42 Object Identifier
P38 deassigned
(was deassigned by): E42 Object Identifier
AFTER
Scope
note: This class
comprises activities that result in the allocation of an identifier to an
instance of E1 CRM Entity. An E15 Identifier Assignment may include the creation
of the identifier from multiple constituents, which themselves may be instances
of E41 Appellation. The syntax and kinds of constituents to be used may be
declared in a rule constituting an instance of E29 Design or
Procedure.
Examples of such identifiers
include Find Numbers, Inventory Numbers, uniform titles in the sense of
librarianship and Digital Object Identifiers (DOI). Documenting the act of
identifier assignment and deassignment is especially useful when objects change
custody or the identification system of an organization is changed. In order to
keep track of the identity of things in such cases, it is important to document
by whom, when and for what purpose an identifier is assigned to an
item.
The fact that an identifier is a preferred one
for an organisation can be expressed by using the property E1 CRM Entity. P48
has preferred identifier (is preferred identifier of): E42 Identifier. It
can better be expressed in a context independent form by assigning a suitable
E55 Type, such as “preferred identifier assignment”, to the respective instance
of E15 Identifier Assignment via the P2 has type property.
Examples:
§
Replacement of the inventory number TA959a by GE34604 for a
17th century lament cloth at the Museum Benaki, Athens
§
Assigning the author-uniform title heading
“Goethe, Johann Wolfgang von, 1749-1832. Faust. 1. Theil.” for a work
(E28)
§
On June 1, 2001 assigning
the personal name heading “Guillaume, de Machaut, ca. 1300-1377” (E42,E82) to
Guillaume de Machaut (E21)
Properties:
P37 assigned (was
assigned by): E42 Identifier
P38 deassigned
(was deassigned by): E42 Identifier
P142 used
constituent (was used in): E41 Appellation
The 1st paragraph of the scope note changed
from:
“This class comprises documented plans for the execution of
actions in order to achieve a result of a specific quality, form or contents. In
particular it comprises plans for deliberate human activities that
result in the modification or production of instances of E24 Physical
Thing.”
To:
“This
class comprises documented plans for the execution of actions in order to
achieve a result of a specific quality, form or contents. In particular it
comprises plans for deliberate human activities that may result in the modification or production
of instances of E24 Physical Thing.”
A third paragraph
added to the scope note text which is the following:
“The text of an
instance of E33 Linguistic Object can be documented in a note by P3 has note:
E62 String”
E41
Appellation
The Appellation became subclass of E28
Conceptual Object and super class of E51 Contact Point
The name of E42 is changed from E42 Object
Identifier to E42 Identifier. Also the scope note and the examples are
changed
BEFORE:
This class
comprises codes assigned to objects in order to identify them uniquely within
the context of one or more organisations.
Such codes
are often known as inventory numbers, registration codes, etc. and are typically
composed of alphanumeric sequences. The class E42 Object Identifier is not
normally used for machine-generated identifiers used for automated processing
unless these are also used by human agents.
Examples:
§
MM.GE.195
§
13.45.1976
§
DPS_1000
§
OXCMS: 1997.4.1
AFTER:
“This class comprises codes assigned
to instances of E1 CRM Entity in order to identify them uniquely and permanently
within the context of one or more organisations. Such codes are often known as
inventory numbers, registration codes, etc. and are typically composed of
alphanumeric sequences. The class E42 Identifier is not normally used for
machine-generated identifiers used for automated processing unless these are
also used by human agents
Examples:
§
“MM.GE.195”
§
“13.45.1976”
§
“OXCMS: 1997.4.1”
§
ISSN “0041-5278”
§
ISRC “FIFIN8900116”
§
Shelf mark “Res 8 P 10”
§
“Guillaume de Machaut (1300?-1377)” [a controlled
personal name heading that follows the French rules]
The subclass of E51 is changed from E77
Persistent Item became E41 Appellation
The first sentence of
the second paragraph of the scope note is changed
BEFORE
Scope
note: This class
comprises quantifiable properties that are measured by some calibrated means and
can be approximated by numerical values.
An instance of E54
Dimension is thought to be the true quantity, independent from its numerical
approximation, e.g. in inches or in cm.
AFTER
Scope
note: This class
comprises quantifiable properties that are measured by some calibrated means and
can be approximated by numerical values.
An instance of E54
Dimension is regarded as the true quantity, independent from its numerical
approximation, e.g. in inches or in cm.
The scope note is changed
From
This class comprises any gatherings or organizations of two or more
people that act collectively or in a similar way due to any form of unifying
relationship
A gathering of people becomes an E74 Group when it exhibits
organizational characteristics usually typified by a set of ideas or beliefs
held in common, or actions performed together. These might be communication,
creating some common artifact, a common purpose such as study, worship,
business, sports, etc. Nationality can be modeled as membership in an E74 Group
(cf. HumanML markup).
Examples:
§
the impressionists
§
the Navajo
§
the Greeks
§
the peace protestors in New York City on February
15 2003
§
Exxon-Mobil
To:
This class comprises any gatherings or organizations of two or more
people that act collectively or in a similar way due to any form of unifying
relationship. In the wider sense this class also comprises official positions
which used to be regarded in certain contexts as one actor, independent of the
current holder of the office, such as the president of a country.
A gathering of people becomes an E74 Group when it exhibits
organizational characteristics usually typified by a set of ideas or beliefs
held in common, or actions performed together. These might be communication,
creating some common artifact, a common purpose such as study, worship,
business, sports, etc. Nationality can be modeled as membership in an E74 Group
(cf. HumanML markup). Married couples and other concepts of family are regarded
as particular examples of E74 Group.
Examples:
§
the impressionists
§
the Navajo
§
the Greeks
§
the peace protestors in New York City on February
15 2003
§
Exxon-Mobil
§
King Solomon and his wives
§
The President of the Swiss
Confederation
Subclass of:
E7 Activity
Scope note:
This class comprises the
activities that result in an instance of E49 Actor becoming a member of an
instance of E74 Group. This class does not imply initiative by either
party.
Typical scenarios include becoming a member of a social organisation,
becoming employee of a company, the adoption of a child by a family and the
inauguration of somebody into an official position.
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament for the University of Cambridge to the Convention Parliament of
1689
§
The inauguration of Mikhail Sergeyevich Gorbachev
as leader of the Union of Soviet Socialist Republics (USSR) in 1985
Properties:
P143 joined (was
joined by): E39 Actor
P144 joined with (gained member by) E74 Group
Subclass of:
E7 Activity
Scope
note: This class comprises
the activities that result in an instance of E49 Actor to be separated from an
instance of E74 Group. This class does not imply initiative by either party.
Typical scenarios include the termination of membership in a social
organisation, ending the employment at a company, and the end of tenure of
somebody in an official position.
Examples:
§
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in
1702
§
George Washington’s leaving office in
1797
Properties:
P145 separated
(left by) E39 Actor
P146 separated from (lost member by) E74 Group
The scope note is changed
BEFORE:
This property is a container for all informal descriptions about an
object that cannot be expressed in terms
of CRM constructs.
In particular it captures the characterisation of the item itself,
its internal structures, appearance etc.
Like property P2 has type (is type of), this property is a
consequence of the restricted focus of the CRM. The aim is not to capture, in a
structured form, everything that can be said about an item; indeed, the CRM
formalism is not regarded as sufficient to express everything that can be said.
Good practice requires use of distinct note fields for different aspects of a
characterisation. The P2 has type (is type
of) property of P3 has note allows differentiation of specific
notes, e.g. “construction”, “decoration” etc.
An item may have many notes, but a note is attached to a specific
item.
AFTER
:
This property is a container for all informal descriptions about an
object that have not been expressed in
terms of CRM constructs.
In particular it captures the characterisation of the item itself,
its internal structures, appearance etc.
Like property P2 has type (is type of), this property is a
consequence of the restricted focus of the CRM. The aim is not to capture, in a
structured form, everything that can be said about an item; indeed, the CRM
formalism is not regarded as sufficient to express everything that can be said.
Good practice requires use of distinct note fields for different aspects of a
characterisation. The P3.1 has type
property of P3 has note allows differentiation of specific notes,
e.g. “construction”, “decoration” etc.
An item may have many notes, but a note is attached to a specific
item.
Is deleted
The scope note of P37 is changed
BEFORE
Scope
note: This property
records the identifier that was assigned to an object in an Identifier
Assignment activity.
An Object Identifier might be created prior to an
assignment.
AFTER
Scope
note: This property
records the identifier that was assigned to an item in an Identifier Assignment
activity.
An Identifier might be created prior to an assignment.
The
scope note of P38 is changed
BEFORE
Scope
note: This property
records the identifier that was deassigned from an object.
Deassignment of an identifier may be necessary when an object is
taken out of an inventory, a new numbering system is introduced or objects are
merged or split up.
The same identifier may be deassigned on more than one
occasion.
Scope
note: This property
records the identifier that was deassigned from an instance of E1 CRM
Entity.
Deassignment of an identifier may be necessary when an item is taken
out of an inventory, a new numbering system is introduced or items are merged or
split up.
The same identifier may be deassigned on more than one
occasion.
Is deleted
The domain, range and the scope note of P48
is changed
BEFORE
Subproperty of: E19 Physical Object.
P47 is identified by (identifies): E42 Object Identifier
Quantification: many to one (0,1:0,n)
Scope
note: This property
records the preferred E42 Object Identifier that was used to identify the E19
Physical Object at the time this property was recorded.
More than one preferred identifier may have
been assigned to an object during its history.
Use of this property requires an external mechanism for assigning
temporal validity to the respective CRM instance.
P48 has preferred identifier (is preferred
identifier of), like P47 is identified by
(identifies) is a shortcut for the path from E19 Physical Object through
P36 registered (was registered by), E15 Identifier Assignment, P37
assigned (was assigned by) to E42 Object Identifier.
AFTER
Domain:
E1 CRM Entity
Subproperty of: E1 CRM Entity. P1 is
identified by (identifies): E41 Appellation
Quantification: many to one (0,1:0,n)
Scope
note: This property
records the preferred E42 Identifier that was used to identify an instance of E1
CRM Entity at the time this property was recorded.
More than one preferred identifier may have
been assigned to an item over time.
Use of this property requires an external mechanism for assigning
temporal validity to the respective CRM instance.
P48 has
preferred identifier (is preferred identifier of),
is a shortcut for the path from E1 CRM Entity through P140 assigned attribute
to (was attributed by), E15 Identifier Assignment, P37 assigned (was
assigned by) to E42 Identifier. The fact that an identifier is a preferred
one for an organisation can be better expressed in a context independent form by
assigning a suitable E55 Type to the respective instance of E15 Identifier
Assignment using the P2 has type property.
A property is added to this
property
Properties:
P69.1 has type: E55 Type
The scope note is changed and a property is
added
BEFORE
Scope
note: This property
establishes a relationship of synonymy between two instances of E41 Appellation.
The synonymy applies to all cases of use of
an instance of E41 Appellation. Multiple names assigned to an object, which, are
not always synonymous should be instantiated as repeated values of the “is
identified by “ property. This property is symmetric but not
transitive
AFTER
Scope
note: This property establishes a relationship of synonymy between two
instances of E41 Appellation, independent from any item identified by them. The
property is a dynamic, asymmetric relationship, where the domain expresses a
derivative, if such a direction can be established. Otherwise, the relationship
is symmetric.
The synonymy applies to all cases of use of an instance of E41
Appellation. Multiple names assigned to an object, which, are not always
synonymous should be instantiated as repeated values of the “is identified by “
property. This property is not transitive.
P139.1 has type allows the type of
derivation, such as “transliteration from Latin 1 to ASCII” be
refined.
Properties:
P139.1 has type: E55 Type
Six new properties have been
added
Domain:
E15 Identifier Assignment
Subproperty of: E7
Activity. P16 used specific object (was used for): E70 Thing
Quantification:
(0:n,0:n)
Scope
note: This property
associates the event of assigning an instance of E42 Identifier to an entity,
with the instances of E41 Appellation that were used as elements of the
identifier.
Examples:
§
On June 1, 2001 assigning the personal name
heading “Guillaume, de Machaut, ca. 1300-1377” (E15) used constituent
“Guillaume, de Machaut” (E82 Actor Appellation)
§
On June 1, 2001 assigning the personal name
heading “Guillaume, de Machaut, ca. 1300-1377” (E15) used constituent
“ca. 1300-1377” (E49 Time Appellation)
Domain:
E85 Joining
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E39 Actor that becomes member of a E74 Group in an
E85 Joining.
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament to the Convention Parliament of 1689 joined Sir Isaac
Newton
§
The inauguration of Mikhail Sergeyevich Gorbachev
as leader of the Union of Soviet Socialist Republics (USSR) in 1985
joined Mikhail Sergeyevich Gorbachev
Domain:
E85 Joining
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E74 Group of which an instance of E39 Actor becomes a
member through an instance of E85 Joining.
Although a Joining activity normally concerns
only one instance of E74 Group, it is possible to imagine circumstances under
which becoming member of one Group implies becoming member of another Group as
well.
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament to the Convention Parliament of 1689 joined with the
Convention Parliament
§
The inauguration of Mikhail Sergeyevich Gorbachev
as Leader of the Union of Soviet Socialist Republics (USSR) in 1985 joined
with the office of Leader of the Union of Soviet Socialist Republics (USSR)
Domain:
E86 Leaving
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E39 Actor that leaves an instance of E74 Group
through an instance of E86 Leaving.
Examples:
§
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in 1702
separated Sir Isaac Newton
§
George Washington’s leaving office in 1797
separated George Washington
Domain:
E86 Leaving
Range:
E74 Group
Quantification: many to many, necessary
(1,n:0,n)
Scope
note: This property
identifies the instance of E74 Group an instance of E39 Actor leaves through an
instance of E86 Leaving.
Although a Leaving activity normally concerns
only one instance of E74 Group, it is possible to imagine circumstances under
which leaving one E74 Group implies leaving another E74 Group as
well.
Examples:
§
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in 1702
separated from the Convention Parliament
§
George Washington’s leaving office in 1797
separated from the office of President of the United States
Domain:
E28 Conceptual Object
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies a name used specifically to identify an E28 Conceptual Object.
This property is a specialisation of P1 is
identified by (identifies) is identified by.
Examples:
§
The publication „Germanisches Nationalmuseum (GNM),
Fuehrer durch die Sammlungen” (broschiert), Prestl 1995 (E73) is identified
by ISBN 3-7913-1418-1 (E75)
In 16th CIDOC CRM
Harmonization meeting which took place in Nuremberg on 4 – 7 December
2007, the following changes took place
From the introduction, the characterization
of the CRM ontology as a domain ontology is deleted.
The text was changed as:
BEFORE
Applied
Form
The CRM is a
domain ontology in the sense used in computer science. ………..
AFTER
Applied
Form
T
he CRM is an
ontology in the sense used in computer science. ……..
The first letter of the first word in the
first example was capitalized.
BEFORE
·
replacement of the inventory number TA959a by GE34604 for a
17th century lament cloth at the Museum Benaki, Athens
AFTER
·
Replacement of the inventory number TA959a by
GE34604 for a 17th century lament cloth at the Museum Benaki,
Athens
The first sentence of the scope note is
changed
BEFORE
This class comprises codes assigned to
instances…
AFTER
This class comprices strings or codes
assigned to instances….
The scope note is changed to include
marriage as a social organization and also to correct misspelled class numbers
and names.
BEFORE
E85 Joining
Subclass of:
E7 Activity
Scope note:
This class comprises the
activities that result in an instance of E49 Actor becoming a member of an
instance of E74 Group. This class does not imply initiative by either
party.
Typical scenarios include becoming a member of a social organisation,
becoming employee of a company, the adoption of a child by a family and the
inauguration of somebody into an official position.
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament for the University of Cambridge to the Convention Parliament of
1689
§
The inauguration of Mikhail Sergeyevich Gorbachev
as leader of the Union of Soviet Socialist Republics (USSR) in 1985
Properties:
P143 joined (was
joined by): E39 Actor
P144 joined
with (gained member by) E74 Group
E80
Leaving
Subclass of:
E7 Activity
Scope
note: This class comprises
the activities that result in an instance of E49 Actor to be separated from an
instance of E74 Group. This class does not imply initiative by either party.
Typical scenarios include the termination of membership in a social
organisation, ending the employment at a company, and the end of tenure of
somebody in an official position.
Examples:
§
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in
1702
§
George Washington’s leaving office in
1797
Properties:
P145 separated
(left by) E39 Actor
P146 separated
from (lost member by) E74 Group
AFTER
E85 Joining
Subclass of: E7 Activity
Scope note: This
class comprises the activities that result in an instance of E39 Actor becoming
a member of an instance of E74 Group. This class does not imply initiative by
either party.
Typical scenarios include becoming a member of a social
organisation, becoming employee of a
company, marriage, the adoption of a
child by a family and the inauguration of somebody into an official position.
Examples:
·
The election of Sir Isaac Newton as Member of
Parliament for the University of Cambridge to the Convention Parliament of
1689
·
The inauguration of Mikhail Sergeyevich Gorbachev
as leader of the Union of Soviet Socialist Republics (USSR) in 1985
Properties:
P143 joined (was
joined by): E39 Actor
P144 joined with (gained member by) E74
Group
E86
Leaving
Subclass of: E7 Activity
Scope note: This class comprises the activities that result in an instance of E39
Actor to be disassociated from an instance of E74 Group. This class does not
imply initiative by either party.
Typical scenarios include the termination
of membership in a social organisation, ending the employment at
a company, divorce, and the end of
tenure of somebody in an official position.
Examples:
·
The end of Sir Isaac Newton’s duty as Member of
Parliament for the University of Cambridge to the Convention Parliament in
1702
·
George Washington’s leaving office in
1797
Properties:
P145 disassociated
(left by) E39 Actor
P146 disassociated from (lost member by) E74
Group
The following changes have been made to the
17th SIG meeting May 12-15 at Heraklion Crete
In the terminology there were two instance
paragraphs. In this version they have been merged.
BEFORE
|
instance |
An
instance of a class is an item that has the traits that match the
criteria of the intension of the class.
For example:
The painting known as
the “The Mona Lisa” is an instance of the class Physical Man Made
Object.
An
instance of a property is a factual relation between an instance of
the domain and an instance of the range of the property that
matches the criteria of the intension of the property.
For
example:
“The Louvre is current owner
of The Mona Lisa” is an instance of the property “is current
owner of”.
|
AFTER
|
instance |
For example:
The painting known as
the “The Mona Lisa” is an instance of the class Physical Man Made
Object.
An
instance of a property is a factual relation between an instance of
the domain and an instance of the range of the property that
matches the criteria of the intension of the property.
For
example:
“The Louvre is current owner
of The Mona Lisa” is an instance of the property “is current
owner of”.
|
Subclass of:
E28
Conceptual Object
Superclass of:
E73 Information Object
E30 Right
Scope note:
This class comprises
immaterial items, including but not limited to stories, plots, procedural
prescriptions, algorithms, laws of physics or images that are, or represent in
some sense, sets of propositions about real or mental things and that are
documented as single units or serve as topic of discourse.
This class also comprises items that are
“about” something in the sense of a subject. In the wider sense, this class
includes expressions of psychological value such as non-figural art and musical
themes. However, conceptual items such as types and classes are not instances of
E89 Propositional Object. This should not be confused with the definition of a
type, which is indeed an instance of E89 Propositional Object.
Examples:
§
Maxwell’s Equations
§
The ideational contents of Aristotle’s book
entitled ‘Metaphysics’ as rendered in the Greek texts translated in … Oxford
edition…
§
The underlying prototype of any “no-smoking” sign
(E36)
§
The common ideas of the plots of the movie "The
Seven Samurai" by Akira Kurosawa and the movie “The
Magnificent Seven” by John Sturges
§
The image content of the photo of the Allied
Leaders at Yalta 1945 (E38)
Properties:
P148 has component
(is component of): E89 Propositional Object
P67 refers to (is
referred to by): E1 CRM Entity
(P67.1 has type:
E55 Type)
P129 is about (is
subject of): E1 CRM Entity
Subclass of:
E28
Conceptual Object
E72 Legal Object
Superclass of: E73 Information
Object
E41 Appellation
Scope note:
This class comprises identifiable symbols and
any aggregation of symbols, such as characters, identifiers, traffic signs,
emblems, texts, data sets, images, musical scores, multimedia objects, computer
program code or mathematical formulae that have an objectively recognizable
structure and that are documented as single units.
It includes sets of signs of any nature, which
may serve to designate something, or to communicate some propositional content.
An instance of E90 Symbolic Object does not
depend on a specific physical carrier, which can include human memory, and it
can exist on one or more carriers simultaneously. An instance of E90 Symbolic
Object may or may not have a specific meaning, for example an arbitrary
character string.
Examples:
§
‘ecognizabl’
§
The “no-smoking” sign (E36)
§
‘BM000038850.JPG’ (E75)
§
image BM000038850.JPG from the Clayton Herbarium
in London (E38)
§
The distribution of form, tone and colour found
on Leonardo da Vinci’s painting named “Mona Lisa” (E38)
§
The Italian text of Dante’s “Divina Commedia” as
found in the authoritative critical edition La Commedia secondo l’antica
vulgata a cura di Giorgio Petrocchi, Milano: Mondadori, 1966-67 (= Le Opere
di Dante Alighieri, Edizione Nazionale a cura della Società Dantesca Italiana,
VII,
1-4)
(E33)
Properties:
P106 is composed of (forms part of): E90
Symbolic Object
BEFORE
P148 is identified by
(identifies)
Domain:
E28 Conceptual Object
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies a name used specifically to identify an E28 Conceptual Object.
This property is a specialisation of P1 is
identified by (identifies) is identified by.
Examples:
§
The publication „Germanisches Nationalmuseum (GNM),
Fuehrer durch die Sammlungen” (broschiert), Prestl 1995 (E73) is identified
by ISBN 3-7913-1418-1 (E75)
AFTER
P148 has component (is component
of)
Domain:
E89 Propositional Object
Range:
E89 Propositional Object
Superproperty
of:
Subproperty
of:
Quantification:
(0:n,0:n)
Scope
note: This property
associates an instance of E89 Propositional
Object with a structural part of it that is by itself an
instance of E89 Propositional Object.
Examples:
The Italian text of Dante’s textual work entitled “Divina Commedia” (E33)
P148 has component The Italian text of Dante’s textual work entitled
“Inferno” (E33)
BEFORE
E73 Information Object.P67 refers to (is
referred to by): E1 CRM Entity
E73 Information Object.P129 is about (is
subject of): E1 CRM Entity
AFTER
E89 Propositional Object.P67 refers to (is
referred to by): E1 CRM Entity
E89 Propositional Object.P129 is about (is
subject of): E1 CRM Entity
BEFORE
E73 Information Object. P106
is composed of (forms part of): E73 Information
Object
AFTER
E90 Symbolic Object. P106 is composed of
(forms part of): E90 Symbolic Object
Changes in the scope note of E7 Activity P16
have been made for the name use and new examples have been added to both of
them.
E7
Activity
Subclass of:
E5 Event
Superclass of:
E8 Acquisition
E9
Move
E10 Transfer of
Custody
E11 Modification
E13 Attribute
Assignment
E65 Creation
E66 Formation
E85
Joining
E86
Leaving
Scope
note: This class
comprises actions intentionally carried out by instances of E39 Actor that
result in changes of state in the cultural, social, or physical systems
documented.
This
notion includes complex, composite and long-lasting actions such as the building
of a settlement or a war, as well as simple, short-lived actions such as the
opening of a door.
Examples:
§
the Battle of Stalingrad
§
the Yalta Conference
§
my birthday celebration 28-6-1995
§
the writing of “Faust” by Goethe (E65)
§
the formation of the Bauhaus 1919
(E66)
§
calling the place identified
by TGN ‘7017998’ ‘Quyunjig’ by the people of Iraq
Properties:
P14
carried out by (performed): E39
Actor
(P14.1 in the role of: E55
Type)
P15
was influenced by (influenced): E1 CRM
Entity
P16
used specific object (was used for): E70
Thing
(P16.1 mode of use: E55
Type)
P17
was motivated by (motivated): E1 CRM
Entity
P19
was intended use of (was made for): E71 Man-Made
Thing
(P19.1 mode of use: E55
Type)
P20
had specific purpose (was purpose of): E7
Activity
P21
had general purpose (was purpose of): E55
Type
P32 used general technique (was technique of): E55
Type
P33
used specific technique (was used by): E29 Design or
Procedure
P125 used object of type (was type of object used in): E55
Type
P134 continued
(was continued by): E7 Activity
Domain:
E7 Activity
Subproperty of: E5 Event. P12 occurred in
the presence of (was present at): E77
Persistent Item
E7
Activity. P15
was influenced by (influenced): E1 CRM
Entity
Superproperty of:E7 Activity.P33 used specific
technique (was used by):E29 Design or
Procedure
E15 Identifier
Assignment. P142 used
constituent (was used in):E41
Appellation
Quantification: many to many (0,n:0,n)
Scope note:
This property describes the use of material or immaterial things in a way
essential to the performance or the outcome of an E7 Activity.
This property typically applies to tools, instruments, moulds, raw
materials and items embedded in a product. It implies that the presence of the
object in question was a necessary condition for the action. For example, the
activity of writing this text required the use of a computer. An immaterial
thing can be used if at least one of its carriers is present. For example, the
software tools on a computer.
Another example is the use of a particular name
by a particular group of people over some span to identify a thing, such as a
settlement. In this case, the physical carriers of this name are at least the
people understanding its use.
Examples:
§
the writing of this scope note (E7) used
specific object Nicholas Crofts’ computer (E22) mode of use Typing
Tool; Storage Medium (E55)
§
the people of Iraq calling
the place identified by TGN ‘7017998’ (E7) used specific object ‘Quyunjig’ (E44) mode of use Current; Vernacular
(E55)
Properties:
P16.1 mode of use: E55
Type
BEFORE
E54 Dimension (old)
(former
E38)
Subclass of:
E1 CRM Entity
Scope
note: This class
comprises quantifiable properties that are measured by some calibrated means and
can be approximated by numerical values.
An instance of E54 Dimension is regarded as the true quantity,
independent from its numerical approximation, e.g. in inches or in cm. The
properties of the class E54 Dimension allow for expressing the numerical
approximation. It is recommended to record all numerical approximations of
instances of E54 Dimension as intervals of indeterminacy. Numerical
approximations in archaic instances of E58 Measurement Unit used in historical
records should be preserved. Equivalents corresponding to current knowledge
should be recorded as additional instances of E54 Dimension as
appropriate.
Examples:
§
currency: £26.00
§
length: 3.9-4.1 cm
§
diameter 26 mm
§
weight 150 lbs
§
density: 0.85 gm/cc
§
luminescence: 56 ISO lumens
§
tin content: 0.46 %
§
taille au garot: 5 hands
§
calibrated C14 date: 2460-2720 years,
etc
Properties:
P90 has value: E60
Number
P91 has unit (is unit of): E58
Measurement Unit
AFTER
E54 Dimension
(former E38)
Subclass of:
E1 CRM Entity
Scope
note: This class
comprises quantifiable properties that can be measured by some calibrated means
and can be approximated by values, i.e. points or regions in a mathematical or
conceptual space, such as natural or real numbers, RGB values etc.
An instance of E54 Dimension represents the true quantity,
independent from its numerical approximation, e.g. in inches or in cm. The
properties of the class E54 Dimension allow for expressing the numerical
approximation of the values of an instance of E54 Dimension. If the true values
belong to a non-discrete space, such as spatial distances, it is recommended to
record them as approximations by intervals or regions of indeterminacy enclosing
the assumed true values. For instance, a length of 5 cm may be recorded as
4.5-5.5 cm, according to the precision of the respective observation. Note, that
interoperability of values described in different units depends critically on
the representation as value regions.
Numerical approximations in archaic instances of E58 Measurement Unit
used in historical records should be preserved. Equivalents corresponding to
current knowledge should be recorded as additional instances of E54 Dimension as
appropriate.
Examples:
§
the height of silver cup 232
§
The RGB value matrix of my digital image IMG_0025
from 4-5-2007
§
the wingspan of my stuffed chaffinch
‘Fringilla coelebs Linnaeus, 1758’
§
the calibrated C14 date of bone splinter
AC-1983-04532
§
The number of coins in the silver hoard
XXXX
Properties:
P90 has value: E60
Number
P91 has unit (is
unit of): E58
Measurement Unit
BEFORE
(former
E24)
Subclass of:
E71 Man-Made Thing
Superclass of:
E30 Right
E55
Type
E73 Information
Object
Scope
note: This class comprises
non-material products of our minds and information produced by humans with or
without using technical devices that have become objects of a discourse about
their identity, circumstances of creation and historical
implications.
Characteristically, instances of this class are created, invented or
thought by someone, and then may be documented or communicated between persons.
Instances of E28 Conceptual Object have the ability to exist on more than one
particular carrier at the same time, such as papers,
electronic signals, marks, audio media, paintings, photos, human
memories, etc.
They cannot be destroyed as long as they exist on at least one
carrier or in memory.
Their existence ends when the last carrier is lost. A greater
distinction can be made between products having a clear identity, such as a
specific text, or photographs, and the ideas and concepts shared and traded by
groups of people.
Examples:
§
Beethoven’s “Ode an die Freude” (Ode to Joy),
(E73)
§
the definition of “ontology” in the Oxford
English Dictionary
§
the knowledge about the victory at Marathon
carried by the famous runner
Properties :
P148 is identified by (identifies) : E75 Conceptual Object
Appellation
AFTER
(former
E24)
Subclass of:
E71 Man-Made
Thing
Superclass of:
E89 Propositional Object
E90 Symbolic Object
E55
Type
Scope
note: This class comprises non-material products of our minds and other
human
produced data that have become objects of a discourse about their
identity, circumstances of creation or historical implication. The production of
such information may have been supported by the use of technical devices such as
cameras or computers.
Characteristically, instances of this class are created, invented or
thought by someone, and then may be documented or communicated between persons.
Instances of E28 Conceptual Object have the ability to exist on more than one
particular carrier at the same time, such as paper, electronic signals, marks,
audio media, paintings, photos, human memories, etc.
They cannot be destroyed. They exist as long as they can be found on
at least one carrier or in at least one human memory. Their existence ends when
the last carrier and the last memory are lost.
Examples:
§
Beethoven’s “Ode an die Freude” (Ode to Joy),
(E73)
§
the definition of “ontology” in the Oxford
English Dictionary
§
the knowledge about the victory at Marathon
carried by the famous runner
BEFORE
Domain:
E55 Type
Quantification:
many to many (0,n:0,n)
Scope
note: This property
allows an item to be declared as an example of an E55 Type or taxon.
The taxonomic role renders the specific relationship of this example
to the Type, such as "prototypical", "archetypical" "lectotype", etc. The
taxonomic role "lectotype" is not associated with the Type Creation (E83)
itself, but selected in a later phase.
Examples:
§
‘Spigelia marilandica (L.) L.’ (E55) is exemplified by
Object BM000098044 of the Clayton Herbarium (E20) in the taxonomic
role lectotype
Properties:
P137.1 in the taxonomic role: E55 Type
AFTER
Domain:
E1 CRM Entity
Quantification:
many to many (0,n:0,n)
subproperty of: E1 CRM Entity. P2
has type: E55 Type
Scope
note: This property
allows an item to be declared as a particular example of an E55 Type or taxon.
The P137.1 in the taxonomic role property of P137
exemplifies (is exemplified by) allows differentiation of taxonomic roles.
The taxonomic role renders the specific relationship of this example to the
Type, such as "prototypical", "archetypical", "lectotype", etc. The taxonomic
role "lectotype" is not associated with the Type Creation (E83) itself, but
selected in a later phase.
Examples:
§
Object BM000098044 of the Clayton Herbarium (E20)
exemplifies Spigelia marilandica (L.) L.
(E55) in the taxonomic role lectotype
Properties:
P137.1 in the taxonomic role: E55
Type
Changes in the range and the scope note of
P39
BEFORE
Domain:
E16
Measurement
Quantification: many to one, necessary
(1,1:0,n)
Scope
note: This property
records the E70 Thing that was the subject of an instance of E16 Measurement
Event.Thing may be measured more than once. Both material and
immaterial sThing may be measured, e.g. the number of words in a
text.
Examples:
§
31 August 1997
measurement of height of silver cup 232 (E16) measured silver cup 232
(E22)
AFTER
Domain:
E16
Measurement
Quantification: many to one, necessary
(1,1:0,n)
Scope
note: This property associates an instance of E16 Measurement
with the instance of E1 CRM Entity to which it applied. An instance of E1 CRM
Entity may be measured more than once. Material and immaterial things and
processes may be measured, e.g. the number of words in a text, or the duration
of an event.
Examples:
§
31 August 1997
measurement of height of silver cup 232 (E16) measured silver cup 232
(E22)
Domain:
E7
Activity
Quantification: many to many (0,n:0,n)
Scope
note: This property
identifies the relationship between a preparatory activity and the event it is
intended to be preparation for.
This includes activities, orders and other organisational actions,
taken in preparation for other activities or events.
P20 had specific purpose (was purpose of) implies that an
activity succeeded in achieving its aim. If it does not succeed, such as the
setting of a trap that did not catch anything, one may document the unrealized
intention using P21 had general purpose (was purpose of):E55 Type
and/or P33 used specific technique (was used by): E29 Design or
Procedure.
Examples:
§
Van Eyck’s pigment grinding in 1432 (E7) had
specific purpose the painting of the Ghent alter piece (E12)
Domain:
E7
Activity
Quantification: many to many (0,n:0,n)
Scope note:
This property describes an intentional relationship between an E7 Activity and
some general goal or purpose.
This
may involve activities intended as preparation for some type of activity or
event. P21had general purpose (was purpose of) differs from P20 had
specific purpose (was purpose of) in that no occurrence of an
event is implied as the purpose.
Examples:
§
Van Eyck’s pigment grinding (E7) had general
purpose painting (E55)
§
The setting of trap 2742 on May 17th
1874 (E7) had general purpose Catching Moose (E55) (Activity
type)
Domain:
E72 Legal
Object
Quantification:
many to many (0,n:0,n)
Scope
note: This property
identifies the E39 Actor who holds the instances of E30 Right to an E72 Legal
Object.
It is a superproperty of P52 has current owner
(is current owner of) because ownership is a right
that is held on the owned object.
P105 right held by (has right on) is a
shortcut of the fully developed path from E72 Legal Object through P104 is
subject to (applies to), E30 Right, P75 possesses (is possessed by)
to E39 Actor.
Examples:
§
J.M.Barrie’s Peter Pan (E73) right held by
Great Ormond Street Hospital (E40)
1.
2nd paragraph of chapter “APPLIED
FORM”
Before:
Although the
definition of the CRM provided here is complete, it is an intentionally compact
and concise presentation of the CRM’s 86 classes and 132 unique properties. It
does not attempt to articulate the inheritance of properties by subclasses
throughout the class hierarchy (this would require the declaration of several
thousand properties, as opposed to 132)
After:
Although the
definition of the CRM provided here is complete, it is an intentionally compact
and concise presentation of the CRM’s 86 classes and 137 unique properties. It does not attempt to
articulate the inheritance of properties by subclasses throughout the class
hierarchy (this would require the declaration of several thousand properties, as
opposed to 137)
2.
In chapter “Terminology” the paragraph that gives
the definition of the instance (page v)
Before:
For example:
The painting known as the “The
Mona Lisa” is an instance of the class Physical Man
Made Object.
After:
For example:
The painting known as the “The
Mona Lisa” is an instance of the class Man Made
Object.
The name of P68 usually employs (is usually
employed by) was changed from P68 usually employs (is usually employed by)
to P68 foresees use of (use foreseen by):
FROM:
P68 usually
employs (is usually employed by):
Domain:
E29 Design or
Procedure
Quantification: many to
many (0,n:0,n)
Scope
note: This property
describes an E57 Material usually employed in an E29 Design or Procedure.
Designs and procedures commonly employ
particular Materials. The fabrication of adobe bricks, for example, requires
straw, clay and water. This property enables this to be documented.
This property is not intended for the documentation of Materials that
were required on a particular occasion when a Design or Procedure was
executed.
Examples:
procedure for soda
glass manufacture (E29) usually employs soda (E57)
TO:
P68 foresees
use of (use foreseen by):
Quantification: many to
many (0,n:0,n)
Scope
note: This property
identifies an E57 Material foreseeen to be used by an E29 Design or Procedure.
E29 Designs and procedures commonly
foresee the use of particular E57 Materials. The fabrication of adobe bricks,
for example, requires straw, clay and water. This property enables this to be
documented.
This property is not intended for the documentation of E57 Materials
that were used on a particular occasion when an instance of E29 Design or
Procedure was executed.
Examples:
§
procedure for soda glass manufacture (E29)
foresees use of soda (E57)
§
The text of compatibility was
changed.
FROM:
Compatibility
with the CRM
Users intending to take
advantage of the semantic interoperability offered by the CRM may want to make
parts of their data structures compatible with the CRM. The respective parts
should pertain either to the associations by which users would like their data
to be accessible in an integrated environment, or to contents intended for
transport to other environments, so that the meaning encoded by its structure is
preserved in another target system.
In that sense, the CRM is not
aimed at proposing a complete matching of user documentation structures with the
CRM, nor that a user should always implement all CRM concepts and associations;
rather it is intended to leave room for all kinds of extensions to capture the
richness of cultural information, but also for simplifications for reasons of
economy.
Further, the CRM is a means to
interpret structured information in a way, so that large amounts of data
contents can be transformed or mediated automatically. As a consequence, the CRM
aims not at resolving free text information into a formal logical form. In other
terms, it does not intend to provide more structuring than the users have done
before, and free text information does not fall under the scope of compatibility
considerations. The CRM foresees however the associations to transport such
information in relation to structured information.
The CRM is a formal ontology,
expressible in terms of logic or a suitable knowledge representation language.
Its concepts can be instantiated as sets of statements that form models of the
assumed reality referred to in a structured document. Any encoding of CRM
instances in a formal language that preserves the relations to the CRM classes,
properties and inheritance rules among them is regarded a “CRM-compatible
form”.
A part of a documentation structure is compatible with the CRM, if a
deterministic logical algorithm can be found, that transforms any data correctly
encoded in this structure into a CRM-compatible form without loss of meaning. No
assumptions are made about the nature of this algorithm. It may in particular
draw on other formal ontologies expressing background knowledge such as
thesauri. The algorithm itself can only be found and verified intellectually by
understanding the meaning intended by the designer of the data structure and the
CRM concepts. By the term “correctly encoded” we mean that the data are encoded
so that the meaning intended by the designer of the data structure is correctly
applied to the intended meaning of the data.
Information system implementers may choose to provide export
facilities of selected data into a CRM-compatible form. They may further choose
to provide a service to access selected data by querying with CRM
concepts. It is not regarded a loss of compatibility, if certain subclasses and
subproperties of the CRM are not supported in such a service. In that case it is
regarded essential that the services publishes the set of CRM concepts it
supports.
TO:
Utility of CRM
compatibility
The goal of
the CRM is to enable the integration of the largest number of information
resources. Therefore it aims to provide the greatest flexibility of systems to
become compatible, rather than imposing one particular solution.
Users intending to take
advantage of the semantic interoperability offered by the CRM may want to make
parts of their data structures compatible with the CRM. Compatibility may
pertain either to the associations by which users would like their data to be
accessible in an integrated environment, or to the contents intended for
transport to other environments, allowing encoded meaning to be preserved in a
target system.
The CRM does not require
complete matching of all user documentation structures with the CRM, nor that
systems should always implement all CRM concepts and associations; instead it
leaves room both for extensions, needed to capture the full richness of cultural
information, and for simplifications, required for reasons of
economy.
Furthermore, the CRM provides
a means of interpreting structured information so that large amounts of data can
be transformed or mediated automatically. It does not require unstructured or
semi-structured free text information to be analysed into a formal logical
representation. In other words, it does not aim to provide more structure than
users have previously provided. The interpretation of information in the form of
free text falls outside the scope of compatibility considerations. The CRM does,
however, allow free text information to be integrated with structured
information.
The Information Integration
Environment
The notion of CRM
compatibility is based on interoperability. Interoperability is best
defined on the basis of specific communication practices between information
systems. Following current practice, we distinguish the following types of
information integration environments pertaining to information systems:
3.
Local
information systems. These are either collection management systems or content
management systems that constitute institutional memories and are maintained
by an institution. They are used for primary data entry, i.e. a relevant part of
the information, be it data or metadata, is primary information in digital form
that fulfils institutional needs.
4.
Integrated access systems. These provide an homogeneous
access layer to multiple local systems. The information they manage
resides primarily on local systems. We distinguish between:
a.
Materialized access systems, which physically
import data provided by local systems, using a data warehouse approach.
Such systems may employ so-called metadata harvesting techniques or rely on data
submission. Data may be transformed to respect the schema of the access system
before being merged.
b.
Mediation systems, [Gio Wiederholt] which
send out queries, formulated according to a virtual global schema, to multiple
local systems and then collect and integrate the answers. The queries may be
transformed to a local schema either by the mediation system or by the receiving
local system itself.
`
Local systems may also
import data from other systems, in order to complement collections, or to
merge information from other systems. An information system may export
information for migration and preservation.
Compatibility with the CRM
pertains to one or more of the following data communication capabilities
or use cases:
5.
data
falling within the scope of the CRM can be exported from an information
system into an encoded form without loss of meaning with respect to CRM
concepts;
6.
data
falling within the scope of the CRM can be transformed into another
encoded form without loss of meaning with respect to CRM concepts;
7.
data
falling within the scope of the CRM can be imported from an encoded form
into an information system without loss of meaning with respect to CRM
concepts;
8.
data
falling within the scope of the CRM that is contained in an information system
can be queried and retrieved exhaustively in terms of CRM concepts,
subject to the expressive power of a particular query language.
Any declaration of CRM
compatibility must specify one or more of the above use cases. System and data
structure providers shall not declare their products as “CRM compatible” without
specifying the appropriate use cases as detailed below.
In the context of this
chapter, the expression “without loss of meaning with respect to the CRM
concepts” means the following: The CRM concepts are used to classify items of
discourse and their relationships. By virtue of this classification, data can be
understood as propositions of a kind declared by the CRM about real world facts,
such as “Object x. forms part of: Object y”. In case the encoding, i.e. the
language used to describe a fact, is changed, only an expert conversant with
both languages can assess if the two propositions do indeed describe the same
fact. If this is the case, then there is no loss of meaning with respect to CRM
concepts. Communities of practice requiring fewer concepts than the CRM declares
may restrict CRM compatibility with respect to an explicitly declared subset of
the CRM.
Users of this standard may
communicate CRM compatible data, as detailed below, with data structures and
systems that are either more detailed and specialized than the CRM or whose
scope extends beyond that of the CRM. In such cases, the standard
guarantees only the preservation of meaning with respect to CRM concepts.
However, additional information that can be regarded as extending CRM concepts
may be communicated and preserved in CRM compatible systems through the
appropriate use of controlled terminology. The specification of the latter
techniques does not fall under the scope of this standard. Communities of
practice requiring extensions to the CRM are encouraged to declare their
extensions as CRM-compatible standards.
CRM-Compatible Form
The CRM is a formal ontology
which can be expressed in terms of logic or a suitable knowledge representation
language. Its concepts can be instantiated as sets of statements that provide a
model of reality. We call any encoding of such CRM instances in a formal
language that preserves the relations between the CRM classes,
properties and inheritance rules a “CRM-compatible form”.
Hence data expressed in any CRM-compatible form can be automatically transformed
into any other CRM-compatible form without loss of meaning. Classes and
properties of the CRM are identified by their initial codes, such as “E55” or
“P12”. The names of classes and properties of a CRM-compatible form may be
translated into any local language, but the identifying codes must be
preserved. A CRM-compatible form should not implement the
quantifiers of CRM properties as cardinality constraints for the encoded
instances. Quantifiers may be implemented in an informative way, or not at all.
Statements that violate quantifiers should be treated as alternative
knowledge.
Any encoding of CRM instances
in a formal language that preserves the relations within a consistent
subset of CRM classes, properties and inheritance
rules is regarded a “reduced CRM-compatible form”, if:
·
all the
conditions applicable to a CRM compatible form are respected;
the subset does not violate
the rules of subsumption and inheritance;
·
any
instance of the reduced CRM-compatible form is also a valid instance of a (full)
CRM compatible form
·
the subset
contains at least the following concepts:
|
E1 |
CRM Entity |
|
E2 |
- |
Temporal Entity |
|
E4 |
- |
- |
Period |
|
E5 |
- |
- |
- |
Event |
|
E7 |
- |
- |
- |
- |
Activity |
|
E11 |
- |
- |
- |
- |
- |
Modification |
|
E12 |
- |
- |
- |
- |
- |
- |
Production |
|
E13 |
- |
- |
- |
- |
- |
Attribute Assignment |
|
E65 |
- |
- |
- |
- |
- |
Creation |
|
E63 |
- |
- |
- |
- |
Beginning of Existence |
|
E12 |
- |
- |
- |
- |
- |
Production |
|
|
E65 |
- |
- |
- |
- |
- |
Creation |
|
E64 |
- |
- |
- |
- |
End of Existence |
|
E77 |
- |
Persistent Item |
|
E70 |
- |
- |
Thing |
|
E72 |
- |
- |
- |
Legal Object |
|
E18 |
- |
- |
- |
- |
Physical Thing |
|
E24 |
- |
- |
- |
- |
- |
Physical Man-Made Thing |
|
E90 |
- |
- |
- |
- |
Symbolic Object |
|
E71 |
- |
- |
- |
Man-Made Thing |
|
E24 |
- |
- |
- |
- |
Physical Man-Made
Thing |
|
E28 |
- |
- |
- |
- |
Conceptual Object |
|
E89 |
- |
- |
- |
- |
- |
Propositional Object |
|
E30 |
- |
- |
- |
- |
- |
- |
Right |
|
E73 |
- |
- |
- |
- |
- |
- |
Information Object |
|
E90 |
- |
- |
- |
- |
- |
Symbolic Object |
|
E41 |
- |
- |
- |
- |
- |
- |
Appellation |
|
E73 |
- |
- |
- |
- |
- |
- |
Information Object |
|
E55 |
- |
- |
- |
- |
- |
Type |
|
E39 |
- |
- |
Actor |
|
E74 |
- |
- |
- |
Group |
|
E52 |
- |
Time-Span |
|
E53 |
- |
Place |
|
E54 |
- |
Dimension |
|
E59 |
Primitive Value |
|
E61 |
- |
Time Primitive |
|
E62 |
- |
String |
|
|
|
|
|
|
|
|
|
|
|
Property id |
Property Name |
Entity – Domain |
Entity -
Range |
|
|
is identified by
(identifies) |
E1 CRM Entity |
E41 Appellation |
|
P2 |
has type (is type of) |
E1 CRM Entity |
E55 Type |
|
P3 |
has note |
E1 CRM Entity |
E62 String |
|
P4 |
has time-span (is time-span
of) |
E2 Temporal Entity |
E52 Time-Span |
|
P7 |
took place at (witnessed) |
E4 Period |
E53 Place |
|
P10 |
falls within (contains) |
E4 Period |
E4 Period |
|
P12 |
occurred in the presence of (was present
at) |
E5 Event |
E77 Persistent Item |
|
P11 |
- had
participant (participated in) |
E5 Event |
E39 Actor |
|
|
- -
carried out by (performed) |
E7 Activity |
E39 Actor |
|
P16 |
- used specific
object (was used for) |
E7 Activity |
E70 Thing |
|
P31 |
- has modified
(was modified by) |
E11 Modification |
E24 Physical Man-Made
Thing |
|
P108 |
- -
has produced (was produced by) |
E12 Production |
E24 Physical Man-Made
Thing |
|
P92 |
- brought into
existence (was brought into existence by) |
E63 Beginning of Existence |
E77 Persistent Item |
|
P108 |
- -
has produced (was produced by) |
E12 Production |
E24 Physical Man-Made
Thing |
|
P94 |
- -
has created (was created by) |
E65 Creation |
E28 Conceptual Object |
|
P93 |
- took out of
existence (was taken out of existence by) |
E64 End of Existence |
E77 Persistent Item |
|
P15 |
was influenced by
(influenced) |
E7 Activity |
E1 CRM Entity |
|
P16 |
- used specific
object (was used for) |
E7 Activity |
E70 Thing |
|
P20 |
had specific purpose (was purpose
of) |
E7 Activity |
E7 Activity |
|
P43 |
has dimension
(is dimension of) |
E70 Thing |
E54 Dimension |
|
P46 |
is composed of (forms part
of) |
E18 Physical Thing |
E18 Physical Thing |
|
P59 |
has section (is located on or
within) |
E18 Physical Thing |
E53 Place |
|
P67 |
refers to ( is referred to
by) |
E89 Propositional Object |
E1 CRM Entity |
|
P75 |
possesses (is possessed
by) |
E39 Actor |
E30 Right |
|
P81 |
ongoing throughout |
E52 Time-Span |
E61 Time Primitive |
|
P82 |
at some time within |
E52 Time-Span |
E61 Time Primitive |
|
P89 |
falls within (contains) |
E53 Place |
E53 Place |
|
P104 |
is subject to (applies to) |
E72 Legal Object |
E30 Right |
|
P106 |
|
E90 Symbolic Object |
E90 Symbolic Object |
|
P107 |
|
E74 Group |
E39 Actor |
|
P127 |
|
E55 Type |
E55 Type |
|
P128 |
|
E24 Physical Man-Made
Thing |
E73 Information Object |
|
P130 |
|
E70
Thing |
E70
Thing |
|
P140 |
assigned attribute to (was attributed
by) |
E13 Attribute Assignment |
E1 CRM Entity |
|
P141 |
assigned (was assigned by) |
E13 Attribute Assignement |
E1 CRM Entity |
|
P148 |
has component (is component
of) |
E89 Propositional Object |
E89 Propositional
Object |
CRM Compatibility of Data Structure
A data
structure is export-compatible with the CRM if it is possible to transform any data from this data structure into
a CRM-compatible form without loss of meaning. Implicit concepts may be
present in elements of the data structure that are not supported by the CRM. As
long as these concepts can be encoded as instances of E55 Type (i.e. as
terminology) and attached unambiguously to their respective data items with
suitable properties, the data structure is still regarded as export
compatible.
Note that not all
CRM concepts may be represented by elements of an export-compatible data
structure. All data from export-compatible data structures can be transported in
a CRM-compatible form. In particular any CRM compatible form or reduced
CRM-compatible form is export-compatible with the CRM.
A data
structure is import-compatible with the CRM if it is possible to automatically transform any data from a
CRM-compatible form into this data structure without loss of meaning,
simply on the basis of knowledge about the data structure elements being
used. This implies that a data record transformed into this data
structure from a CRM-compatible form can be transformed back into the
CRM-compatible form without loss of meaning. Note that the
back-transformation into a CRM-compatible form may result in a data record that
is semantically equivalent but not identical with the original.
Any CRM-compatible
form is automatically import-compatible with the CRM. Note that an
import-compatible data structure may be semantically richer than the CRM. It may
contain elements that, through the use of a transformation algorithm, can be
made to correspond to CRM concepts or specializations thereof or that contain
elements with meanings that fall outside the scope of the CRM. However, it must
not contain elements that overlap in meaning with CRM concepts and which cannot
be subsumed via transformation by a CRM concept other than E1 CRM Entity and E77
Persistent Item.
Import-compatible
data structures may be used to transport data for applications that require
concepts that lie beyond the scope of the CRM, as well as data from any
export-compatible data structure. Note that, in general, applications may
make use of data from a CRM import-compatible data structure that has
been exported into a CRM compatible form by semantic reduction to CRM concepts,
i.e. by generalizing all subsumed concepts to the most specific CRM concept
applicable, and by discarding elements that fall outside the scope of the
CRM.
A data structure
is partially import-compatible with the
CRM if the above holds for a reduced CRM-compatible form.
CRM Compatibility of Information
Systems
An information
system is export-compatible with the CRM
if it is possible to export all user data from this
information system into an import-compatible data structure. This capability is
the recommended kind of CRM-compatibility for local information systems.
An information
system is partially export
compatible if it is possible to export all user data
from this information system into a partially import-compatible data structure.
This is not the recommended kind of CRM-compatibility, but it may not be
feasible for legacy systems to acquire a higher level of CRM compatibility
without unreasonable effort. This reduced level of CRM compatibility is
nonetheless highly useful.
Note that there is
no minimum requirement for the classes and properties that must be present in
the exported user data. Therefore it is possible that the data may pertain to
instances of just a single property, such as E21 Person. P131 is identified
by: E82 Actor Appellation.
An information
system is import-compatible with the CRM
if it is possible to import data encoded in a
CRM-compatible form and to access the data in a manner equivalent to and
homogeneous with all generic data of this system that fall under the same
concepts. This capability is considered as the normal kind of CRM compatibility
for integrated access systems that physically copy source data in a
data warehouse style (materialized access systems).
An information
system is partially import-compatible with the CRM if it is
possible to import data encoded in a reduced CRM-compatible form and to access
the data in a manner equivalent to and homogeneous with all generic data of this
system that fall under the same concepts. Depending on the functional
requirements, it makes sense for integrated access systems to offer access
services of reduced complexity by being only partially import-compatible with
the CRM.
Note that it makes
sense for integrated access systems to import data from extended data structures
by semantic reduction to CRM defined concepts.
Note that local
information system providers may choose to make their systems import-compatible
with the CRM to be import-compatible with the CRM in order to exchange data, for
example in the case of museum object loans or for system migration purposes.
Communities of practice may choose to agree on import compatibility for extended
data structures.
Some local
information systems are likely to focus on specialized subject areas, such as
inscriptions. For these specialized systems, the ability to import a specific
data structure is recommended. This should be export-compatible with the CRM,
and encompass the concepts that are required by the subject matter (“dedicated
import compatibility”).
An information
system is access-compatible with the CRM if
it is possible to access the user data in the information system by querying
with CRM classes and properties so that the meaning of the answers to the
queries corresponds to the query terms used. It is not regarded as a reduction
of compatibility if access is limited to data deemed to be exchanged.
An information
system is partially access-compatible with the CRM if it is possible to
access the user data in the information system by querying with a consistent
subset of CRM classes and properties, corresponding to a reduced CRM-compatible
form, so that the meaning of the answers to the queries corresponds to the query
terms used.
An
access-compatible system may be export-compatible with respect to the
query answers. Note that it may make sense for an access-compatible content
management system to return only content items in response to queries rather
than being export compatible.
Figure XXX: Possible data flow between different kinds of CRM-compatible systems
and data structures
Fig. XXX shows a
symbolic representation of some of the data flow patterns defined above between
different kinds of CRM-compatible systems and data structures. In this figure it
is assumed that the Local System B exports data into a CRM export-compatible
data structure, which implies that it can be exported into a CRM-compatible form
or any other CRM import-compatible data structure. Therefore Local System B is
export-compatible with the CRM. For Local System A, the figure symbolizes the
case where the exported data contain elements that correspond to specializations
of the CRM or fall out of its scope.
Compatibility claim
declaration
A provider of a
data structure or information system claiming compatibility with the CRM has to
provide a declaration that describes the kind of compatibility and, depending on
the kind, the following additional information:
·
For export-compatible data
structures:
The subset of CRM
concepts directly instantiated by any possible data in this data structure after
transformation into a CRM-compatible form.
·
For export-compatible systems:
d.
A declaration of configurable user data elements,
if any, that are not semantically restricted to a CRM Concept (other than
E1 CRM Entity or E77 Persistent Item).
e.
User data elements or units that are not
exported.
f.
The subset of CRM concepts directly instantiated
by any possible data exported from the system after transformation into a
CRM-compatible form.
·
For partially or dedicated import-compatible
systems:
The subset of CRM concepts under which data can be imported into the
system.
·
For access-compatible systems:
d.
The query language by which the system can be
queried.
e.
The subset of CRM concepts directly instantiated
by any possible query answers exported from the system after transformation into
a CRM-compatible form.
f.
For partially access-compatible systems, the
subset of CRM concepts by which the system can be queried.
The provider
should be able to demonstrate the claim with suitable test data. A third
party should be able to verify the claim with suitable test
data.
The text about types was changed:
FROM:
Virtually all structured descriptions of museum objects begin with a
unique object identifier and information about the “type” of the object, often
in a set of fields with names like “Object Type,” “Object Name,” “Category,”
“Classification,” etc. All these fields are used for terms that declare that the
object is a member of a particular class or category of items, and are described
by the CRM as instances of E55 Type. Since the instances of this class are
themselves classes, E55 Type is in fact a metaclass.
The class E1 CRM Entity is the domain of the property P2 has type
(is type of), which has the range E55 Type. Consequently, every class in the
CRM, with the exception of E59 Primitive Value, inherits the property P2 has
type (is type of). This provides a general mechanism for refining the
classification of CRM instances to any level of detail, by linking to external
vocabulary sources, thesauri, classification schema or ontologies that function
as extensions to the CRM class and property hierarchies. The external
vocabularies do not themselves fall within the scope of the CRM.
The class E55 Type also serves as the range of properties that relate
to categorical knowledge commonly found in cultural documentation. For example,
the property P125 used object of type (was type of object used in)
enables the CRM to express statements such as “this casting was produced
using a mould”, meaning that there has been an unknown or unmentioned instance
of “mould” that was actually used. This enables the specific instance of the
casting to be associated with the entire type of manufacturing devices known as
moulds. Further, the objects of type “mould” would be related via P2 has type
(is type of) to this term. This indirect relationship may actually help in
detecting the unknown object in an integrated environment. On the other side,
some casting may refer directly to a known mould via P16 used specific object
(was used for). So a statistical question to how many objects in a
certain collection are made with moulds could be answered correctly (following
both paths through P16 used specific object (was used for) - P2 has
type (is type of) and P125 used object of type (was type of object
used in). This consistent treatment of categorical knowledge significantly
enhances the CRM’s ability to integrate cultural knowledge.
Some properties in the CRM are associated with an additional
property. These are numbered in the CRM documentation with a ".1" extension.
These do not appear in the property hierarchy list but are included as part of
the property declarations and referred to in the class declarations. For
example, P62.1 mode of depiction: E55 Type is associated with E24
Physical Man-made Thing. P62 depicts (is depicted by): E1 CRM Entity. The
range of these properties of properties always falls within the type hierarchy
E55 Type. Their purpose is to allow dynamic extensions to their parent property
through the use of property subtypes declared as instances of E55 Type. This
function is analogous to that of the P2 has type (is
type of) property, which all CRM classes inherit
from E1 CRM Entity. System implementations and schemas that do not support
properties of properties may use dynamic subtyping of the parent properties
instead.
TO:
Virtually all
structured descriptions of museum objects begin with a unique object identifier
and information about the "type" of the object, often in a set of fields with
names like "Classification", "Category", "Object Type", "Object Name", etc. All
these fields are used for terms that declare that the object belongs to a
particular category of items. In the CRM the class E55 Type comprises such terms
from thesauri and controlled vocabularies used to characterize and classify
instances of CRM classes. Instances of E55 Type represent concepts
(universals) in contrast to instances of E41 Appellation which are used to name
instances of CRM classes.
E55 Type is the
CRM’s interface to domain specific ontologies and thesauri. These can be
represented in the CRM as subclasses of E55 Type, forming hierarchies of terms,
i.e. instances of E55 Type linked via P127 has broader term (has narrower term).
Such hierarchies may be extended with additional properties.
For this purpose
the CRM provides two basic properties that describe classification with
terminology, corresponding to what is the current practice in the majority of
information systems. The class E1 CRM Entity is the domain of the property P2
has type (is type of), which has the range E55 Type. Consequently, every class
in the CRM, with the exception of E59 Primitive Value, inherits the property P2
has type (is type of). This provides a general mechanism for simulating a
specialization of the classification of CRM instances to any level of detail, by
linking to external vocabulary sources, thesauri, classification schema or
ontologies.
Analogous to the
function of the P2 has type (is type of) property, some properties in the CRM
are associated with an additional property. These are numbered in the CRM
documentation with a ‘.1’ extension. The range of these properties of properties
always falls under E55 Type. Their purpose is to simulate a specialization of
their parent property through the use of property subtypes declared as instances
of E55 Type. They do not appear in the property hierarchy list but are included
as part of the property declarations and referred to in the class declarations.
For example, P62.1 mode of depiction: E55 Type is associated with E24 Physical
Man-made Thing. P62 depicts (is depicted by): E1 CRM Entity.
The class E55
Type also serves as the range of properties that relate to categorical knowledge
commonly found in cultural documentation. For example, the property P125 used
object of type (was type of object used in) enables the CRM to express
statements such as “this casting was produced using a mould”, meaning that there
has been an unknown or unmentioned object, a mould, that was actually used. This
enables the specific instance of the casting to be associated with the entire
type of manufacturing devices known as moulds. Further, the objects of type
“mould” would be related via P2 has type (is type of) to this term. This
indirect relationship may actually help in detecting the unknown object in an
integrated environment. On the other side, some casting may refer directly to a
known mould via P16 used specific object (was used for). So a statistical
question to how many objects in a certain collection are made with moulds could
be answered correctly (following both paths through P16 used specific object
(was used for) - P2 has type (is type of) and P125 used object of type (was type
of object used in). This consistent treatment of categorical knowledge enhances
the CRM’s ability to integrate cultural knowledge.
In addition to
being an interface to external thesauri and classification systems E55 Type is
an ordinary class in the CRM and a subclass of E28 Conceptual Object. E55 Type
and its subclasses inherit all properties from this superclass. Thus
together with the CRM class E83 Type Creation the rigorous scholarly or
scientific process that ensures a type is exhaustively described and
appropriately named can be modelled inside the CRM. In some cases, particularly
in archaeology and the life sciences, E83 Type Creation requires the
identification of an exemplary specimen and the publication of the type
definition in an appropriate scholarly forum. This is very central to research
in the life sciences, where a type would be referred to as a “taxon,” the type
description as a “protologue,” and the exemplary specimens as “original element”
or “holotype”.
Finally, types,
that is, instances of E55 Type and its subclasses, are used to characterize the
instances of a CRM class and hence refine the meaning of the class. A type
‘artist’ can be used to characterize persons through P2 has type (is type
of). On the other hand, in an art history application of the CRM it can be
adequate to extend the CRM class E21 Person with a subclass E21.xx Artist. What
is the difference of the type ‘artist’ and the class Artist? From an everyday
conceptual point of view there is no difference. Both denote the concept
‘artist’ and identify the same set of persons. Thus in this setting a type could
be seen as a class and the class of types may be seen as a metaclass.
Since current systems do not provide an adequate control of user defined
metaclasses, the CRM prefers to model instances of E55 Type as if they were
particulars, with the relationships described in the previous
paragraphs.
Users may decide
to implement a concept either as a subclass extending the CRM class system or as
an instance of E55 Type. A new subclass should only be created in case the
concept is sufficiently stable and associated with additional explicitly modeled
properties specific to it. Otherwise, an instance of E55 Type provides more
flexibility of use. Users that may want to describe a discourse not only using a
concept extending the CRM but also describing the history of this concept
itself, may chose to model the same concept both as subclass and as an instance
of E55 Type with the same name. Similarly it should be regarded as good practice
to foresee for each term hierarchy refining a CRM class a term equivalent of
this class as top term. For instance, a term hierarchy for instances of E21
Person may begin with “Person”.
The scope note of E55 Type was
changed:
FROM
This class comprises arbitrary concepts (universals)
and provides a mechanism for organising them into a hierarchy.
This hierarchy is intended to duplicate the names of
all the classes present in the model. This allows additional refinement, through
subtyping, of those classes which do not require further analysis of their
formal properties, but which nonetheless represent typological distinctions
important to a given user group.
It should be noted that the Model does not
make the distinction between classes and types known from some knowledge
representation systems and object-oriented programming languages. The class E55
Type can be regarded as a metaclass (a class whose instances are universals),
used to denote a user-defined specialization of some class or property of the
Model, without introducing any additional formal properties for this
specialization.
It reflects the characteristic use of the term
“object type” for naming data fields in museum documentation and particularly
the notion of typology in archaeology. It has however nothing to do with the
term “type” in Natural History (cf. E83 Type Creation), but it includes the
notion of a “taxon”.
Ideally, instances of the class E55 Type should be
organised into thesauri, with scope notes, illustrations, etc. to clarify their
meaning. In general, it is expected that different domains and cultural groups
will develop different thesauri in parallel. Consistent reasoning on the
expansion of subterms used in a thesaurus is possible insofar as it conforms to
both the classes and the hierarchies of the model.
E56 Language, E57 Material and E58 Measurement Unit
have been defined explicitly as elements of the E55 Type hierarchy because they
are used categorically in the model without reference to instances of them, i.e.
the Model does not foresee the description of instances of instances of them,
e.g., the property instance “P45 consists of : gold” does not refer to a
particular instance of gold.
TO:
This class
comprises concepts denoted by terms from thesauri and controlled vocabularies
used to characterize and classify instances of CRM classes. Instances of
E55 Type represent concepts in contrast to instances of E41 Appellation
which are used to name instances of CRM classes.
E55 Type is the
CRM’s interface to domain specific ontologies and thesauri. These can be
represented in the CRM as subclasses of E55 Type, forming hierarchies of terms,
i.e. instances of E55 Type linked via P127 has broader term (has narrower term).
Such hierarchies may be extended with additional properties.
The scope note of E66 Formation was
changed:
FROM:
This class comprises events that result in the
formation of a formal or informal E74 Group of people, such as a club, society,
association, corporation or nation.
E66 Formation does not include the arbitrary
aggregation of people who do not act as a collective.
TO:
This class
comprises events that result in the formation of a formal or informal E74 Group
of people, such as a club, society, association, corporation or nation.
E66 Formation does
not include the arbitrary aggregation of people who do not act as a
collective.
The formation of
an instance of E74 Group does not mean that the group is populated with members
at the time of formation. In order to express the joining of members at the time
of formation, the respective activity should be simultaneously an instance of
both E66 Formation and E85 Joining.
P143 joined was joined by)
The scope note of P143 was
changed:
FROM:
This property
identifies the instance of E39 Actor that becomes member of a E74 Group in an
E85 Joining
TO:
This property identifies the instance of E39
Actor that becomes member of a E74 Group in an E85 Joining.
Joining events allow for describing
people becoming members of a group with a more detailed path from E74 Group through P144 joined with (gained member by), E85
Joining, P143 joined (was joined by) to E39
Actor, compared to the shortcut offered by P107 has current or former member
(is current or former member of).
The
scope note of P144 was changed
FROM:
This property identifies the instance of E74 Group of which an instance of E39
Actor becomes a member through an instance of E85 Joining.
Although a Joining activity normally concerns
only one instance of E74 Group, it is possible to imagine circumstances under
which becoming member of one Group implies becoming member of another Group as
well.
This property identifies the instance of E74 Group of which an instance of E39
Actor becomes a member through an instance of E85 Joining.
Although a Joining activity normally concerns
only one instance of E74 Group, it is possible to imagine circumstances under
which becoming member of one Group implies becoming member of another Group as
well.
Joining events allow for describing people becoming members of a
group with a more detailed path from E74 Group through
P144 joined with (gained member by), E85 Joining, P143 joined (was
joined by) to E39 Actor, compared to the shortcut
offered by P107 has current or former member (is current or former member
of).
The example of P5 was changed
FROM:
§
Ruination of the Tower of Babylon (E3)
consists of wind-erosion phase (E3)
TO:
The Condition State of the ruined Parthenon (E3 Condition State)
consists of (P5) a bombarded state (E3
Condition State) from the explosion of a Venetian shell in 1687
An example is added:
FROM:
Examples:
§
the John Clayton Herbarium
§
the Wallace Collection
TO:
Examples:
§
the John Clayton Herbarium
§
the Wallace Collection
§
Michael Foslie’s
coralline red algae Herbarium at Museum of Natural History and Archaeology,
Trondheim, Norway
An example is added:
FROM:
Examples:
TO:
Examples:
·
The curation of Michael. Foslie’s coralline red
algae Herbarium 1876 – 1909 (when Foslie died), now at Museum of Natural
History and Archaeology, Norway
P147 curated (was curated by)
An example is added:
FROM:
Examples:
§
The activities (E87) by the Benaki Museum
curated the acquisition of dolls and games of
urban and folk manufacture dating from the 17th to the 20th century, from
England, France and Germany for the “Toys, Games and Childhood Collection (E78)
of the Museum.
§
The activities (E87)
of the
Historical Museum of Crete, Heraklion, Crete,
curated the development of the permanent Numismatic
Collection (E78).
TO:
Examples:
§
The activities (E87) by the Benaki Museum
curated the acquisition of dolls and games of
urban and folk manufacture dating from the 17th to the 20th century, from
England, France and Germany for the “Toys, Games and Childhood Collection (E78)
of the Museum.
§
The activities (E87)
of the
Historical Museum of Crete, Heraklion, Crete,
curated the development of the permanent Numismatic
Collection (E78).
§
The
activities (E87) by Mikael Foslie curated the Mikael. Foslie’s coralline red
algae Herbarium
P109 has
current or former curator (is current or former curator of)
An example is added:
FROM:
Examples:
§
the Robert Opie Collection (E78) has current
or former curator Robert Opie (E39)
TO:
Examples:
§
the Robert Opie Collection (E78) has current
or former curator Robert Opie (E39)
§
the Mikael. Foslie’s
coralline red algae Herbarium (E78) has current or
former curator Mikael Foslie
The last paragraph was changed. The
phrase
"The provider should be able to demonstrate
the claim with suitable test data. A third party should be able to verify the
claim with suitable test data."
is replaced by:
""The provider
should be able to demonstrate the claim with suitable test data. The provider
should be able to demonstrate its claim according to certain procedures included
in any applicable certificate practice related statement.
The provider
should either make evidence of these procedures publicly available on the
Internet on a site nominated by the ISO community of use, so that any third
party is able to verify the claim with suitable test data, or acquire a
certificate by a certification authority (CA).
A trusted third party
recognised and authorised by a competent regulatory authority to act as a CA in
this practice area, should be able to verify the credentials of the provider
applying for such certificate and thus, of its claim with suitable test data,
before issuing the certificate so that the users can trust the information in
the CA certificates.
The CA will grant the provider of the certified
system the right to use the “CRM compatible” logo."
The first sentence in the scope note has
been changed. The phrase “This class comprises aggregations of physical items
that are assembled and maintained ...”
is replaced by
"This class
comprises aggregations of instances of E18 Physical Thing that are assembled and
maintained ..”
The property ‘P107.1 kind of member: E55 Type’ has been added and the scope note and the examples have been changed
to:
Scope
note: This property
relates an E39 Actor to the E74 Group of which he or she is a member.
Groups, Legal Bodies and Persons, may all be members of Groups. A
Group necessarily consists of more than one member.
This property is a shortcut of the more fully developed path from E74
Group through P144 joined with (gained member by), E85 Joining, P143 joined (was
joined by) to E39 Actor
The property P107.1
kind of member can be used to specify the type of membership or the role
the member has in the group.
Examples:
§
Moholy Nagy (E21) is current or former
member of Bauhaus (E74)
§
National
Museum of Science and Industry (E40) has current or
former member The National Railway Museum (E40)
§
The married couple Queen
Elisabeth and Prince Phillip (E74) has current or former member Prince
Phillip (E21) with P107.1 kind of member husband (E55 Type)
Properties:
P107.1 kind of member: E55 Type
The property P144.1
kind of member: E55 Type
has been added and the scope note and the examples have
been changed to:
Scope
note: This property
identifies the instance of E74 Group of which an instance of E39 Actor becomes a
member through an instance of E85 Joining.
Although a Joining activity normally concerns
only one instance of E74 Group, it is possible to imagine circumstances under
which becoming member of one Group implies becoming member of another Group as
well.
Joining events allow for describing people
becoming members of a group with a more detailed path from E74 Group through
P144 joined with (gained member by), E85 Joining, P143 joined (was joined by) to
E39 Actor, compared to the shortcut offered by P107 has current or former member
(is current or former member of).
The property P144.1
kind of member can be used to specify the type of membership or the role
the member has in the group.
Examples:
§
The election of Sir Isaac Newton as Member of
Parliament to the Convention Parliament of 1689 joined with the
Convention Parliament
§
The inauguration of Mikhail Sergeyevich Gorbachev
as Leader of the Union of Soviet Socialist Republics (USSR) in 1985 joined
with the office of Leader of the Union of Soviet Socialist Republics (USSR)
with P144.1 kind of member
President
§
The implementation of the membership treaty
January 1. 1973 between EU and Denmark joined with EU (E40)
Properties:
P144.1 kind of member: E55 Type
Page vii:
Figure XXX became fig. 1
Page xiv:
Naming Conventions, second paragraph became “…… P126 employed (was
employed in) ” instead of P126 employed (was employed by”)
Page xviii:
Examples: the first figure fig.1 reasoning about spatial information was
updated and became fig2
Page xix: in
the first paragraph the domain of P59 was corrected, from E19 Physical Object to
E18 Physical Thing. The fig.2 in the same page became fig.3
Page xxiv:
P33 was added to the table of CIDOC CRM Property Hierarchy
Page 14: The
name of P68 was corrected. It was “P68 usually employs
(is usually employed)” and it was changed to
“P68 foresees use of (use foreseen by)”
Page 14: A
correction was made to the superclasses of E30 Right. E30 is not a direct
subclass of E28 Conceptual Object.
Page 29: A
correction was made to the superclasses of E73 Information Object. E73
Information Object is not a direct subclass of E28 Conceptual
Object
Page 40: A
correction was made to the subclasses of ‘P12 occurred in the
presence of (was present at)’. It was added the subclass
of ‘E7 Activity.P33 used specific
technique(was used by):E29 Design or
Procedure’
Page 41:
A correction was made to the
subclasses of ‘P15 was influenced by
(influenced)’. It was added the subclass of ‘E7 Activity.P33 used specific
technique(was used by):E29 Design or
Procedure’
Page 64:
It was missing the domain of ‘P52
has current owner (is current owner of)’ of the subclass
of ‘P105 right held by (has
right on)’. The ‘E18 Physical
Thing’ was added.
Page xxv: CIDOC CRM Property Hierarchy is updated
Page 18: E41
Appellation: E28 Conceptual Object was removed from the subclass list
Page 28: E72 Legal
Object: E73 Information Object was removed from the superclass list
Page 29: E73
Information Object: E72 Legal Object was removed from the subclass
list
Page 33: The fist sentence of the scope
note of E85 Joining read: This class comprises the
activities that result in an instance of E49 Actor: it was corrected to: This
class comprises the activities that result in an instance of E39
Actor
Page 40: P12
occurred in the presence of (was present at): P33 was removed from the
superproperty list
Page 41: P15
was influenced by (influenced): P33 was removed from the superproperty
list
Page 44: P24
transferred title of (changed ownership through): the scope note is
updated
Page 46: P33
used specific technique (was used by): P12, P15 were removed from the
subroperty list
Page 47: P37
assigned (was assigned by): The spelling error in the domain part is
corrected
Page 50: P46 is
composed of (forms part of): the “Hog’s Back” (E24) forms part of
the “Fosseway” (E24): The missing ‘)’ was added to (E24)
Page 54:
P62 depicts (is depicted by): italics were added to
the name of the property at the examples
Page 67: P118 overlaps in time with (is
overlapped in time by): the Iron Age (E52) overlaps in time with the
Roman period (E52): it was corrected to: the Iron Age (E4) overlaps in time
with the Roman period (E4)
Page 68: P119 meets in time with (is met
in time by): Early Saxon Period (E52) meets in time with Middle Saxon
Period (E52): it was corrected to: Early Saxon Period (E4) meets in time
with Middle Saxon Period (E4)
Page 68:
P120 occurs before (occurs after): Early Bronze Age (E52) occurs before Late Bronze age (E52): it was
corrected to: Early Bronze Age (E4) occurs before Late Bronze age
(E4)
Amendments to amendments
Page 101:
E15: The first letter of the first word in the first
example was capitalized.
BEFORE
replacement of the
inventory number TA959a by GE34604 for a 17th century lament cloth at
the Museum Benaki, Athens
AFTER
replacement of the
inventory number TA959a by GE34604 for a 17th century lament cloth at
the Museum Benaki, Athens:
It was corrected
to
BEFORE
replacement of the
inventory number TA959a by GE34604 for a 17th century lament cloth at
the Museum Benaki, Athens
AFTER
Replacement of the inventory number TA959a by GE34604 for a
17th century lament cloth at the Museum Benaki, Athens
Page 112:
P105 has been superpclass of P52: It was changed
to:P105 has been superproperty
of P52
Page 124:
P143 Joining: it was corrected to: P143 joined (was joined by)
